INSTALLATION - RECEIVER MODULE
7

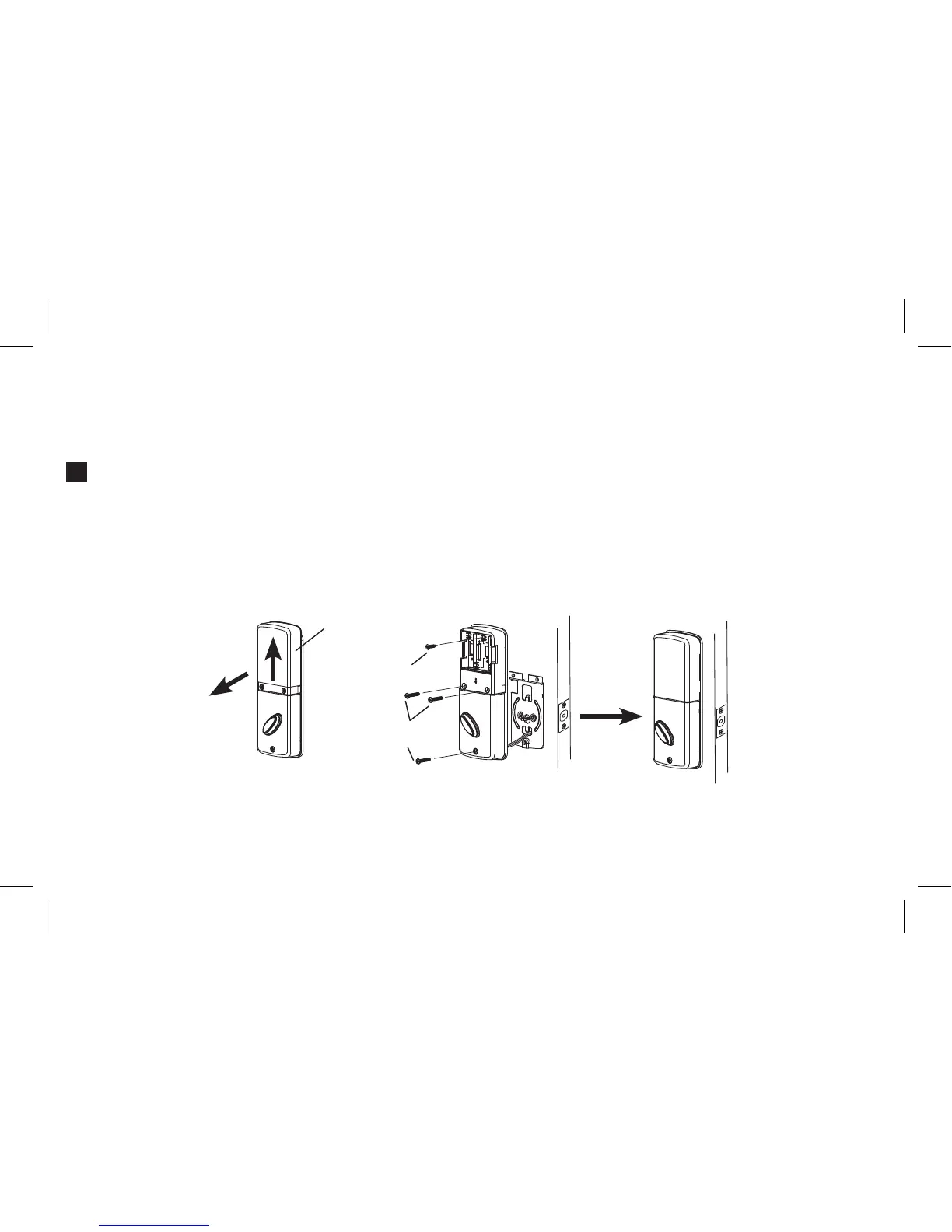

INSTALL RECEIVER MODULE
a. Remove the battery cover (push it up and pull it out).
b. Connect the IC wires and ensure the cylinder torque blade is engaged with the turn piece then
attach the interior assembly to the door with the metal screws.
c. Insert 4 (AA) 1.5V alkaline batteries and place the cover back onto the interior assembly.
BATTERY
COVER
METAL
SCREWS
WOOD
SCREWS
a.
b.
c.
