DOOR PREPARATION
3

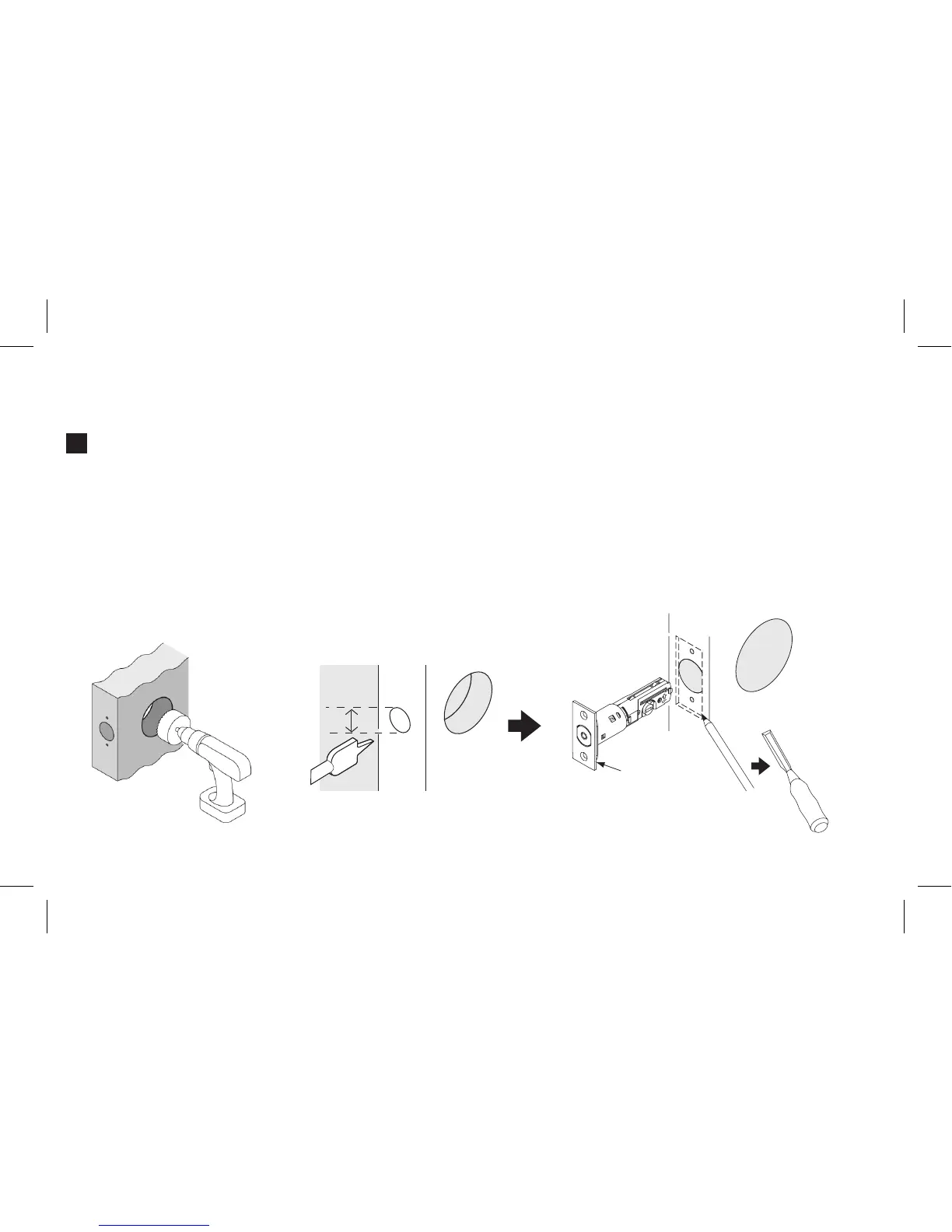

USING THE TEMPLATE MARKS AS A GUIDE
a. Drill a 2-1/8” (54 mm) hole on the door face from both sides to prevent wood from splitting.
b. Drill a 1” (25 mm) hole in the door edge for the latch.
c. Use the latch faceplate as a pattern for the mortise and pilot holes. Chisel 1/8” (3 mm) deep.
Faceplate should fit flush.
Note: for drive-in latch, simply insert latch.
a. b. c.
2-1/8”
(54 mm)
1”
(25 mm)
FACEPLATE
OUTLINE
CHISEL 1/8”
(3 mm) DEEP
