LMP1218-PWM Master Power Unit User Manual
IDM Technologie
6
on-board. It protects the auxiliary battery from being drained by electronics on board, completely
isolating the battery.
3.8 DC Distribution

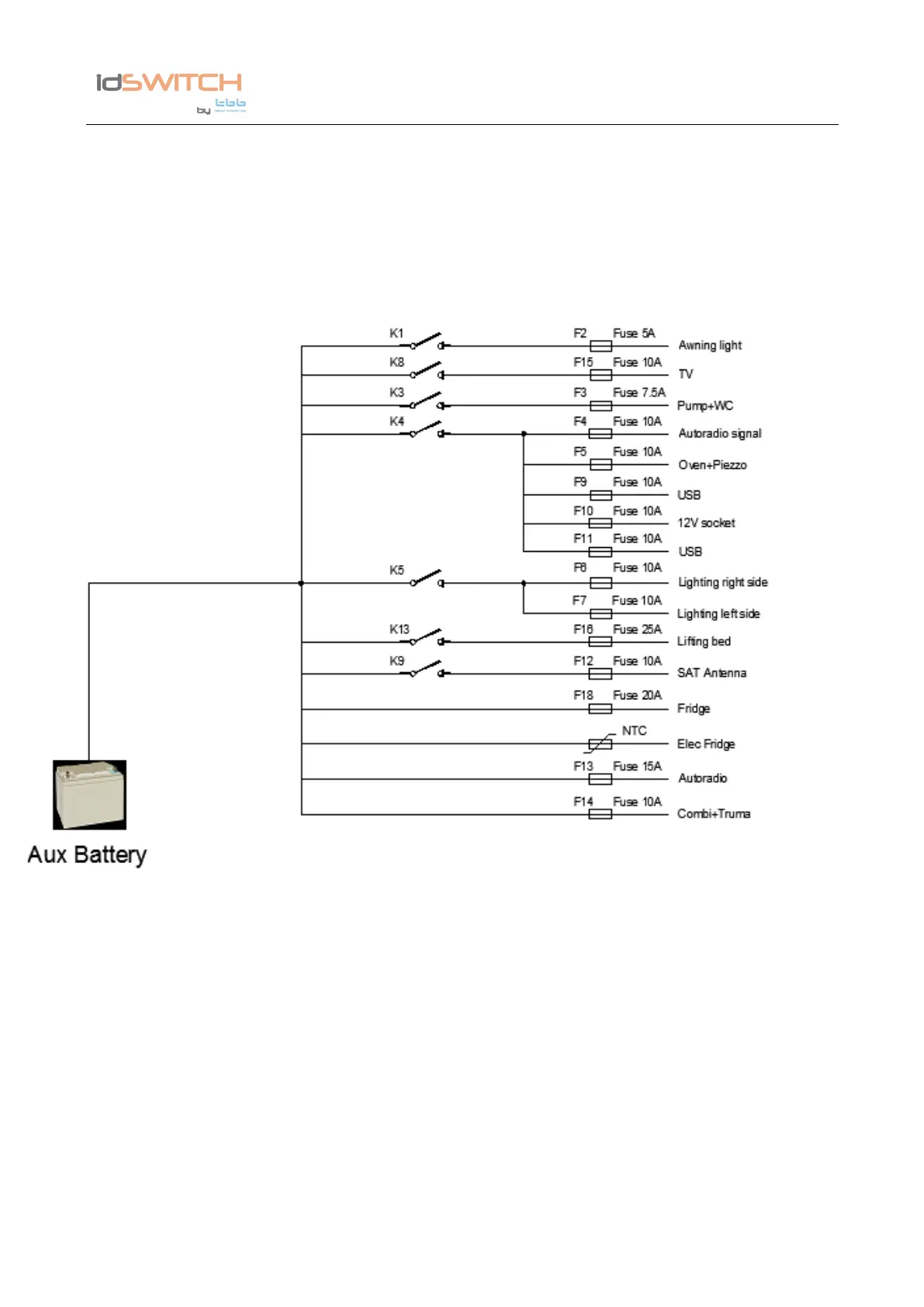

Figure 2 DC distribution schematic diagram
