TBB idSWITCH LMP1218-PWM - External Battery Switch (RSW)

LMP1218-PWM Master Power Unit User Manual
IDM Technologie
13
- Charger: When this mode is selected, the LMP will operate as a charger to charge the auxiliary
battery as long as the network or qualified PV is introduced
- Power supply: when this mode is selected, the LMP will produce a stable voltage of 12.8 Vdc to
power the connected DC loads
5.1.1.2 Dip switch for battery setting
Ta ble 7 Dip switch for battery type setting
Battery type
Position
3
Position
4
Battery type
off
off
AGM
off
on
GEL
on
off
LEP
on
on
WET
5.1.2 External Battery Switch(RSW)
LMP1218-PWM offers a possibility to connect with an external battery switch(RSW), which allows
user to turn on/off the auxiliary battery output remotely.

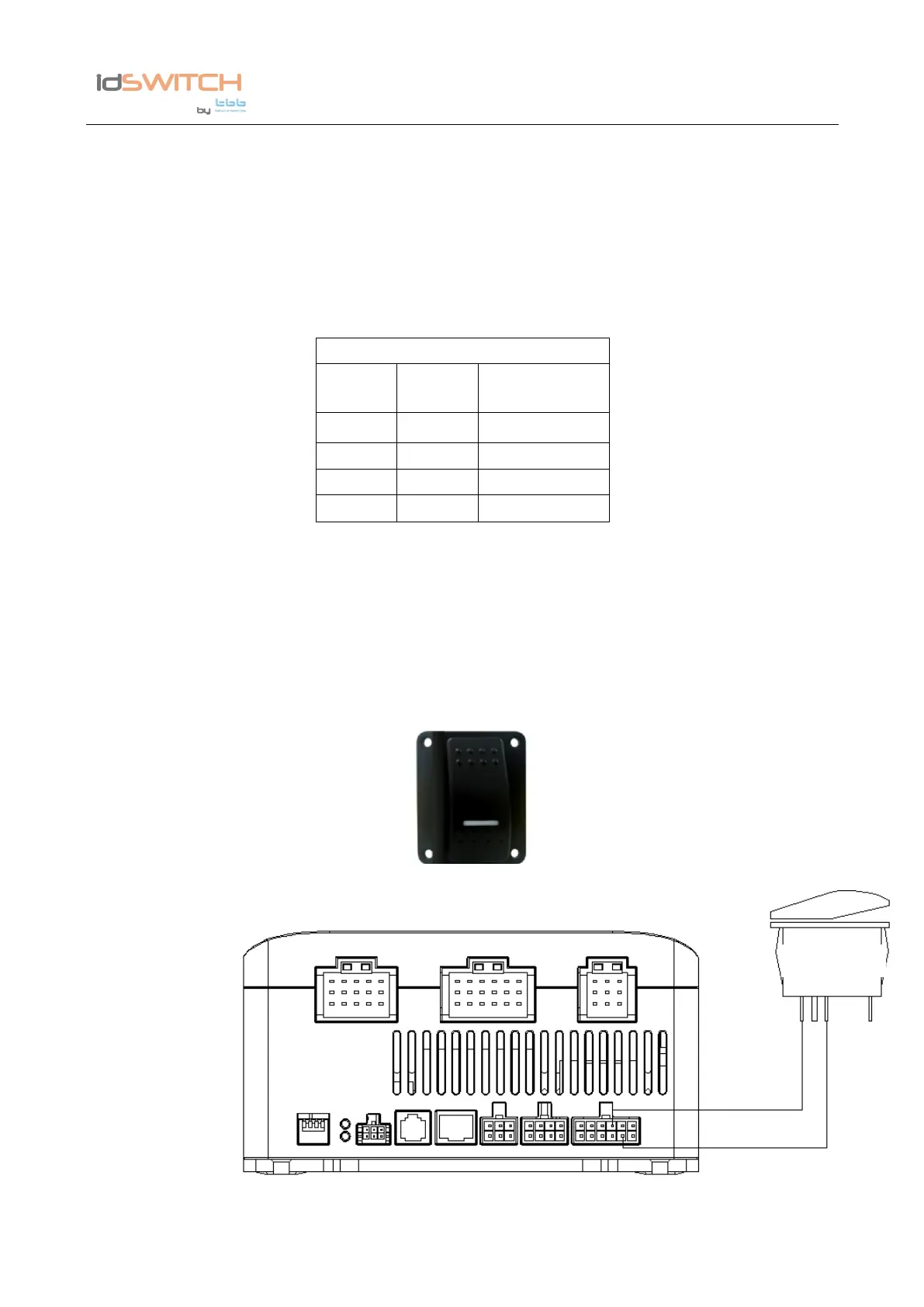

Figure 7 Battery switch
Figure 8 Wiring diagram of battery switch
Battery Switch
