LMP1218-PWM Master Power Unit User Manual

IDM Technologie

[6]5

CW-100%

[6]6

Fresh water tank

[5]1

CW-REF

[5]2

CW-25%

[5]3

CW-50%

[5]4

CW-75%

[5]5

CW-100%

[5]6

RS485 port

Connect to RS485 bus

CI Bus port

Connect to CI bus

Communication

port

[4]1

Wake-up

[4]2

GND

[4]3

GND

[4]4

+12V

[4]5

CAN H

[4]6

CAN L

DIP Switch

1 VCR

Set the battery type, VCR and Mode

2 Mode

3 Bat type

4 Bat type

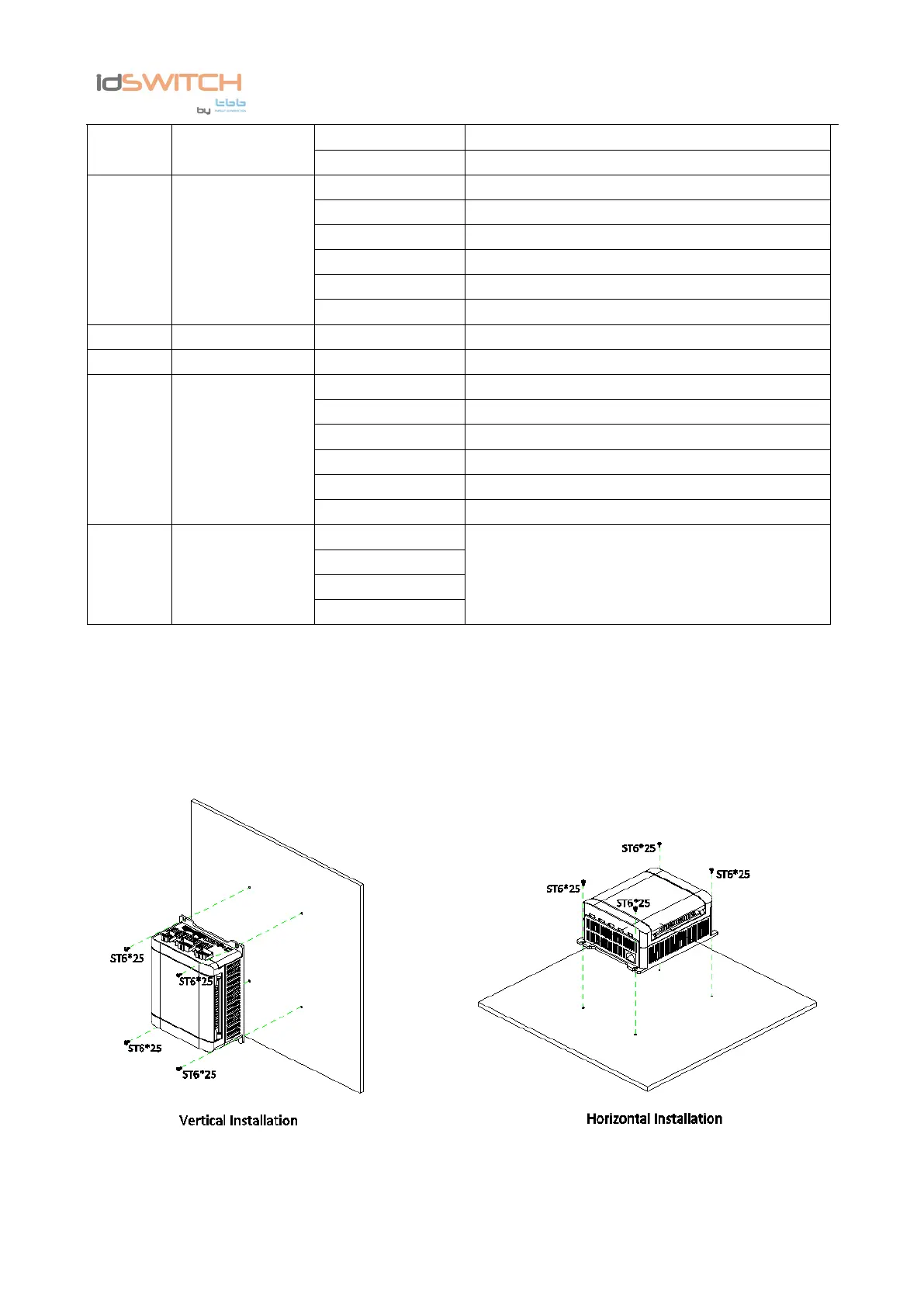

4.2 Installation

Ensure the space (at least 3-5cm on the left and right side) beside the LMP1218-PWM unit for the

good ventilation.

Figure 4 Installation
