LMP1218-PWM Master Power Unit User Manual
IDM Technologie
7
4. STRUCTURE AND INSTALLATION
4.1 LMP1218-PWM Master Power Unit

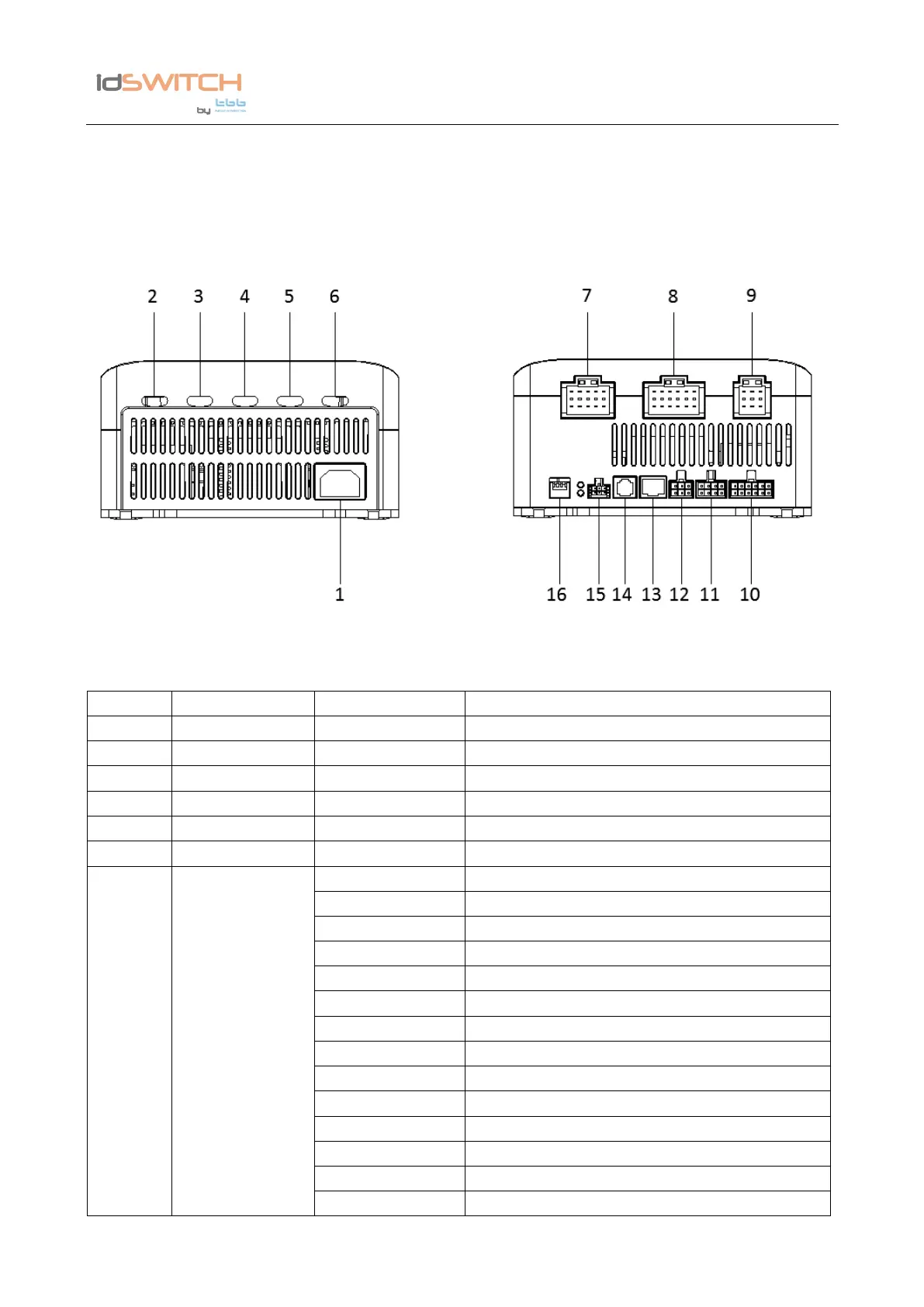

Figure 3 Connectors at front and back
Ta ble 3 Connector description
No.
DEFINITION
LABEL
DESCRIPTION
1
AC input port
/
AC input port
2
/
PV
Connect to PV Panel
3
/
Fridge
Connect to fridge
4
/
Lifting Bed
Connect to lifting bed
5
/
Motor BAT
Connect to Motor BAT
6
/
AUX BAT
Connect to AUX BAT
7
Loads
[1]1
POS : Awning lamp
[1]2
GND :
[1]3
POS : Info D+ Fridge
[1]4
POS : Side lights
[1]5
GND : Side lights
[1]6
POS : Info D+ SAT antenna
[1]7
POS : Pump + WC
[1]8
GND : Pump + WC
[1]9
POS : Info D+ Preheating pump
[1]10
POS : Autoradio Signal
[1]11
GND :
[1]12
GND :
[1]13
POS : Oven + Piezzo
[1]14
GND : Oven +Piezzo
