TC Electronic M350 User Manual

23

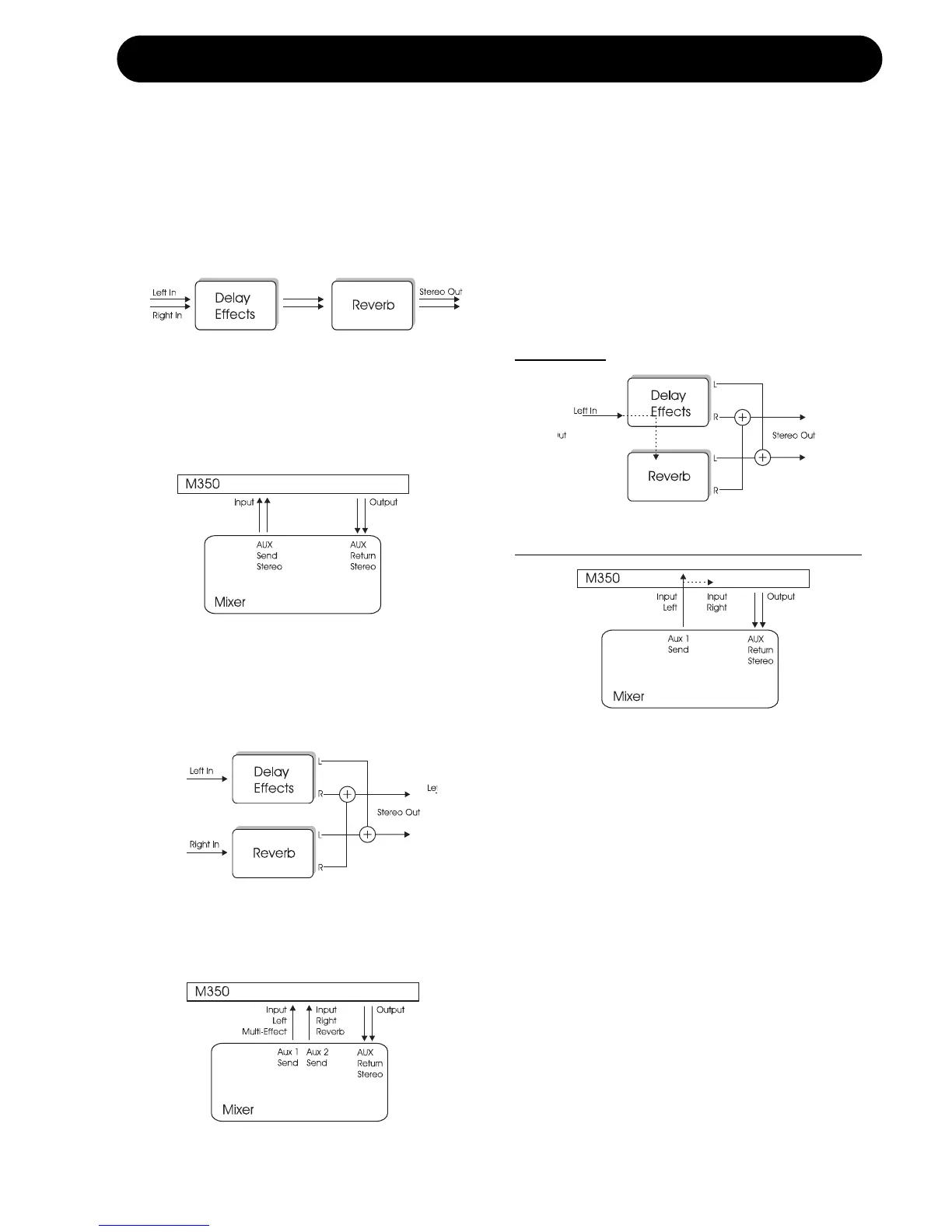

ROUTINGS
Parallel Routing (analog input only)
This routing gives you the opportunity to have
two effects in parallel on a single mono signal.
• Select the Dual Inputs routing by leaving the
ROUTING switch on the rear panel in “In”
position.
• Connect a mono signal to left input.
The input signal is now split and fed to both the
Delay/Effects engine and the Reverb engine.
Both engines then use left and right outputs as
common outputs.
Signal Flow:
Connect the M350 according to this illustration:
Also see setup examples on pages 10 to 15.
It is essential that you have selected the correct
routing according to your setup:
Serial Routing
With this routing, the two engines are used as a
chain of two effects where the signal first
passes the Delay/Effects engine and thereafter
the Reverb engine.
This is the routing to select when you want to
add reverb to a signal after the signal has been
processed by the Delay/Effects engine.
Select the Serial Routing on the rear panel and
connect the M350 according to this illustration:
Dual Input routing mode
By routing two different signals to the two effect
engines, you can utilize the M350 as two
separate effect units with a common output.
Use this if you wish to use the M350 e.g. to add
delay to a guitar on one channel and reverb to
a vocal on another channel.

TC Electronic M350 Specifications

Digital Input and Output

sample rates	44.1 kHz (44.1 kHz and 48 kHz @ Digital Input)
processing delay	0.08 ms @ 48 kHz
frequency response DIO	DC to 23.9 kHz ± 0.01 dB @ 48 kHz

Analog Inputs

impedance bal / unbal	21 kOhm / 13 kOhm
max / min input level @ 0 dBFS	+24 dBu / 0 dBu
sensitivity range @ 12 dB headroom	-12 dBu to +12 dBu

Analog Outputs

impedance bal / unbal	40 Ohm / 20 Ohm
max output level	+14 dBu
frequency response	+0/-0.5 dB, 20 Hz to 20 kHz

Operating Environment

operating temperature	32° F to 122° F (0° C to 50° C)
storage temperature	-22° F to 167° F (-30° C to 70° C)
humidity	Max. 90 % non-condensing

General

dimensions	19" x 1.75" x 4.2" (483 x 44 x 105.6 mm)
weight	3.3 lb. (1.5 kg)
mains voltage	100 to 240 VAC, 50 to 60 Hz (auto-select)
