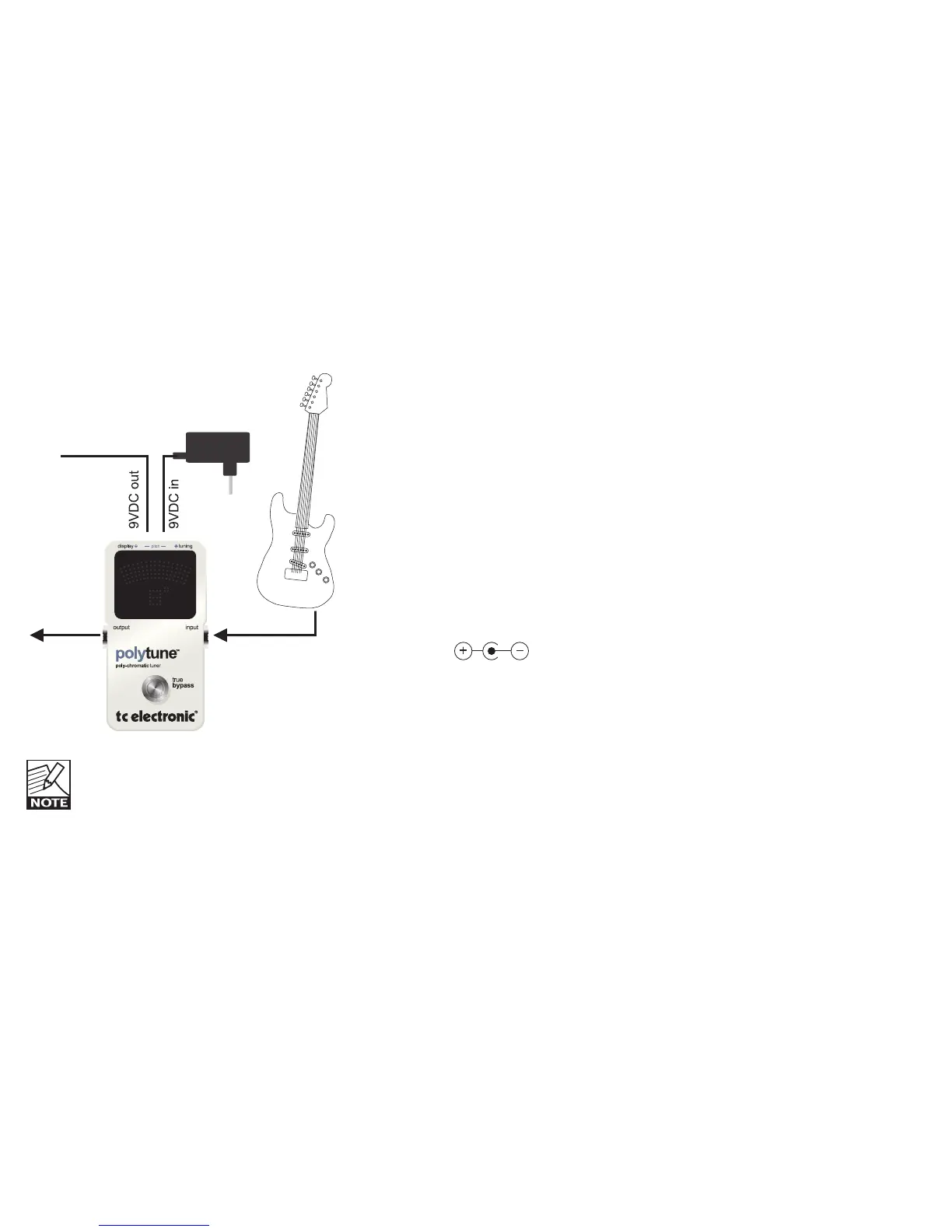

Connecting
Input jack - connect your instrument here using a 1/4 inch
mono jack cable. If you run on battery we recommend removing
this jack to preserve battery power when you don’t play.
Output jack - connect to another pedal or directly into an amp
or mixer. When the tuner is active the output will be muted for
silenttuning.NoticethatPolyTune™isdesignedwithatrue
bypass circuit that leaves your beloved tone unaltered when the
tuner is bypassed.
Power in-usea9VDCpowersupplywiththefollowing
symbol:
Power out - If you use an external power supply you may use
PolyTune’s™powerouttodaisy-chainpowertootherpedals.
• Do NOT connect an external power supply to POWER OUT. This could cause malfunction or damage
to PolyTune™. Current draw on daisy-chained pedals may not exceed 2A.
• Besurethatyourpowersupplydeliverssufficientpowertocoverthepowerconsumptionof
all pedals.
• PlacePolyTune™beforedriveanddistortionpedalsforbesttunerindication.
