TC Electronic The Dreamscope - Control Panel; Control Layout Diagram

5

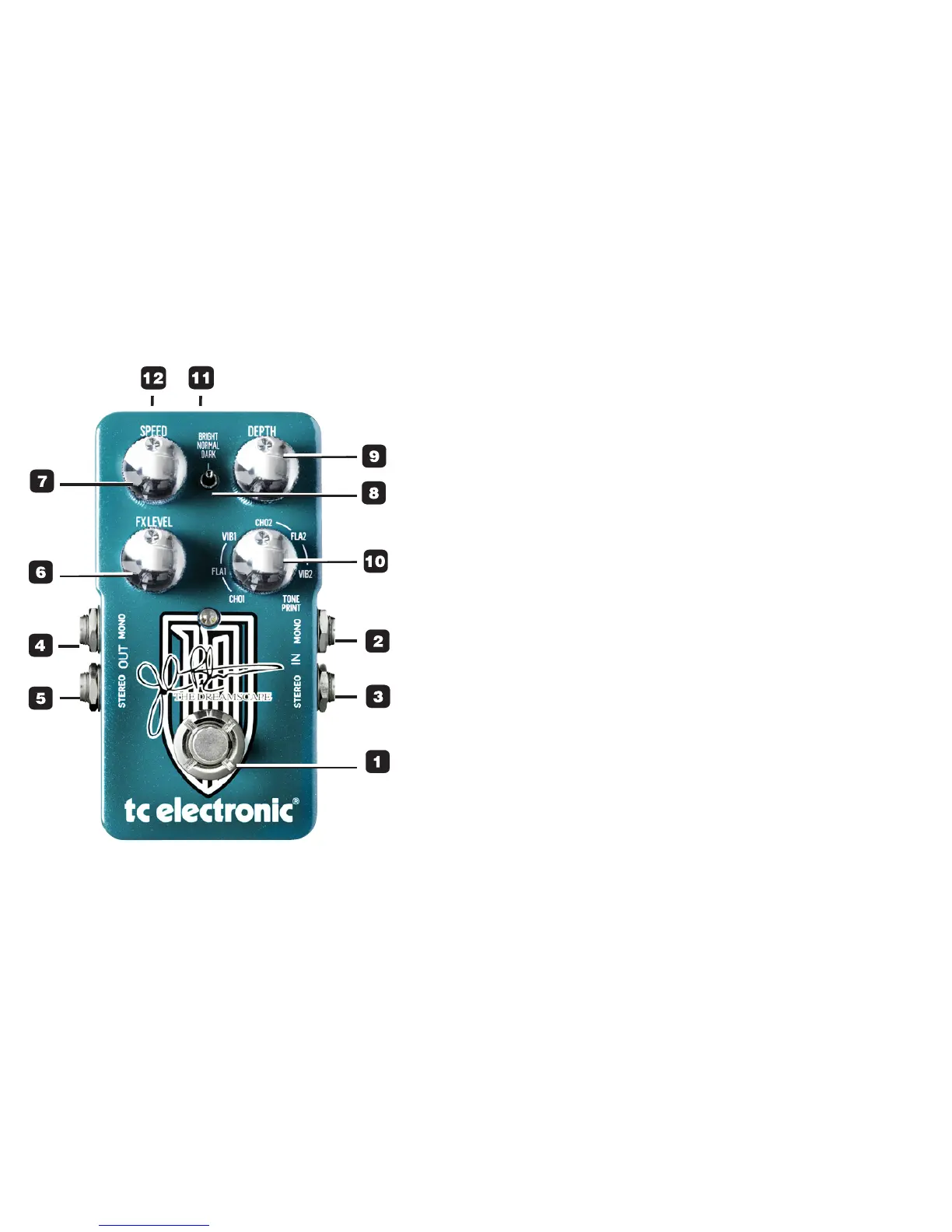

1 - Effect on/off (true bypass)
2 - ¼ inch mono jack input
3 - ¼ inch mono jack input (for stereo in)
4 - ¼ inch mono jack output
5 - ¼ inch mono jack output (for stereo out)
6 - FX level control
7 - Speed control
8 - Voice Selector – Bright / Normal / Dark
9 - Depth control
10 - Effect type selector
11 - Power in (9 VDC)
12 - USB connection for uploading TonePrint
settings and software updates.
