6
Connections
5. Guitar In and Thru - Plug a 1/4” cable directly from your guitar into
the high Z (impedance) In jack. If you use effect pedals, they should be
connected after VoiceLive Touch. Plug a 1/4” cable from the Thru jack
to your first effect pedal or to your amplifier/PA. If you leave the Thru
unconnected, the guitar sound will be mixed into the main output of
VoiceLive Touch.
6. Aux In Jack - Mixes audio from an external stereo device such as
an MP3 player into the main mix. No effects are applied to this input.
7. MIDI Input - Connect the MIDI Out from a keyboard, audio
workstation or MIDI sequencer to control harmony and select presets.
8. Power Adaptor Input - Connect the factory-supplied adaptor here.
Applying power automatically turns on VoiceLive Touch as there is no
power switch.
9. USB Connector - Used for connecting VoiceLive Touch to a
computer for version updates and MIDI communication. Note that the
USB connection does not provide power for the unit.
10. Footswitch Input - Allows connection of a TC-Helicon Switch 3
footswitch. This footswitch can be set to control several useful functions
in the Setup menu. Requires a 3 conductor (TRS) cable.
11. Headphone Output and Level Control - Connects to standard 1/8”
stereo headphones.
12. Input Level Control - Turn clockwise while singing to set input level.
The green LED on the front panel should flash but the Clip LED should
not light on your loudest singing.
1. Mic Input - Balanced, low impedance XLR input for your mic.
2. XLR Output - Can produce a mono output when Output is
configured for mono in the Setup menu.
3. Guitar Ground Lift - Press this to assist with hum reduction.
4. 1/4” TRS Outputs - These produce the main output. They can be
configured for Mono, Dual Mono or Stereo output in the Setup menu.

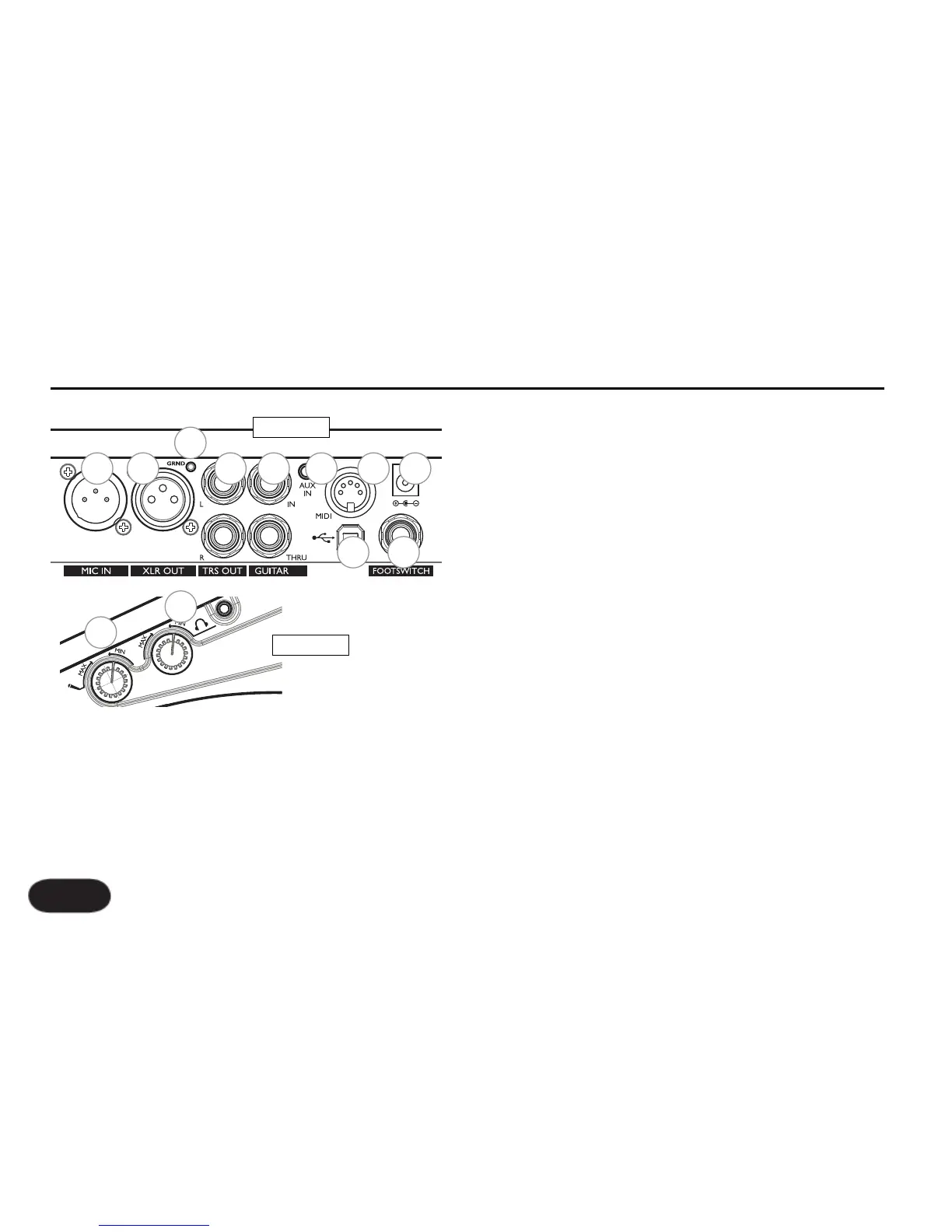

Side View
Rear View
1 2
3
4 5 6 7 8
9
10
11
12
