TC-Helicon VoiceLive User Manual

29
PRESET EDIT SCREENS
Effects Edit Screens
VoiceLive has a maximum of 1800 milliseconds of stereo delay time with filtering and 12 Reverb
models. The parameters in this section provide control of these effects.

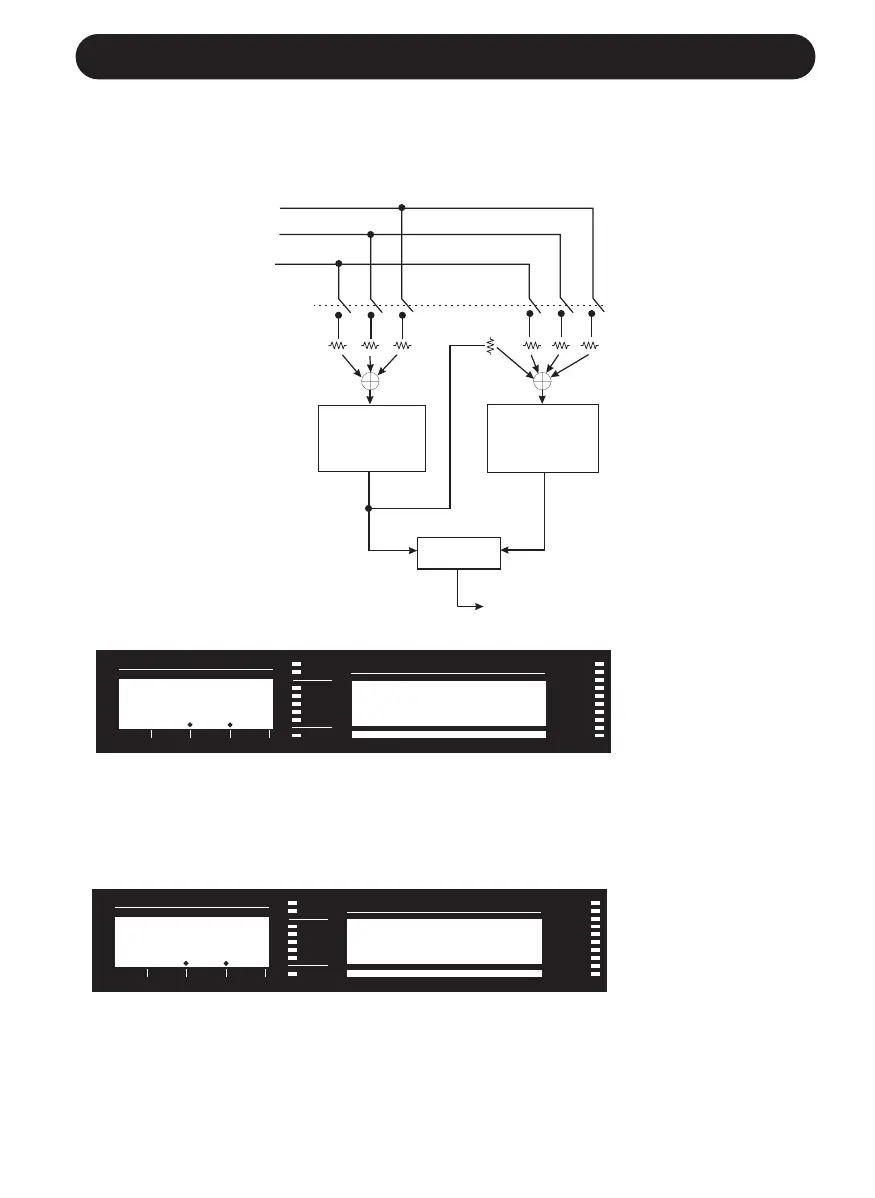

Effects Block Diagram
EDIT 1 knob: E
FFECT LEVEL. This sets the overall volume of the combined Reverb and Delay
effects.
EDIT 2 knob: R
EVERB
/DELAY MIX.
EDIT 3 knob: D
ELAY OUTPUT TO REVERB EFFECTS SEND LEVEL.
EDIT 1 knob: Used to select Reverb or Delay send parameters
EDIT 2 knob: L
EAD VOICE SEND LEVEL in dB.
EDIT 3 knob: HARMONY VOICES SEND LEVEL in dB.
EDIT 4 knob: I
NSTRUMENT SEND LEVEL in dB.
