TC-Helicon VoiceLive User Manual

7

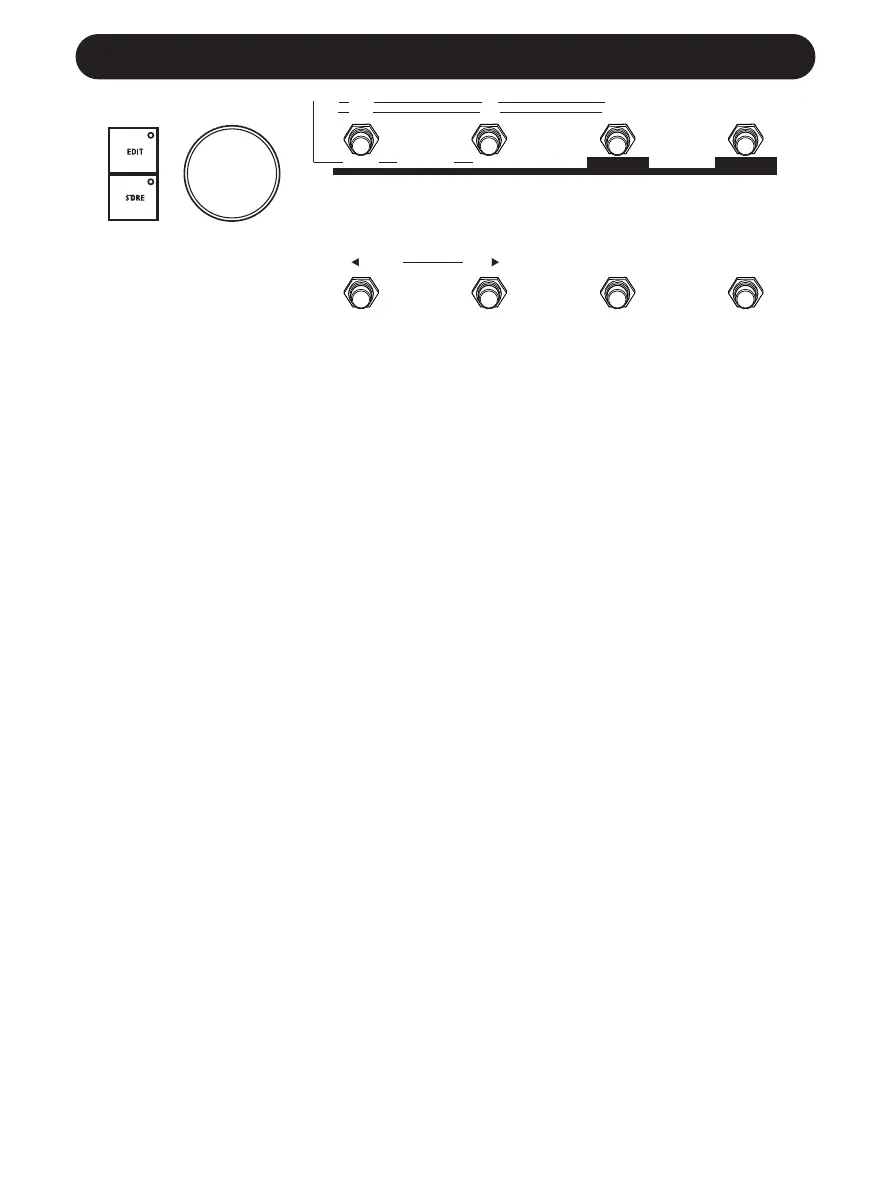

FRONT PANEL
FOOTSWITCH BUTTONS
These allow control of VoiceLive in performance. These
buttons are multifunctional depending on the operating mode
of the unit.
The best place to get an understanding of how these work is
the Performance Mode Step Through Orientation in the
Quickstart section of the manual. For a detailed reference of
the operation of the footswitches in the various modes, see
the Footswitch Function Tables near the end of the manual.
PREVIOUS
USER
HARMONY MUTE
HOLD FOR BYPASS
NEXT
PRESET SONG VOICE
SONG
PRESET
Direct A / Voice 1
SELECT
SELECT
Direct B / Voice 2
STEP
KEY
REWIND
SCALE
Direct D / Voice 4
HOLD FOR MODE HOLD FOR SUBMODE
SONG
DIRECT
Direct C / Voice 3
1234
5678
Please note that the footswitch buttons have multiple
functions. To ensure clarity in this manual they will often
be referred to as switches 1 through 8 as numbered
above.
PUSH TO ENTER
EDIT KEY
Enters and exits edit modes.
STORE KEY
Press STORE to begin the store
process. Presets, Songs and
IO/Utility parameters may be
stored using this key. Each
Preset and Song name/number
store destination may be
changed after the first press.
Pressing the STORE key a
second time will complete the
store operation.
DATA WHEEL
This control is used to select
presets in preset mode, songs
in Song mode and edit screens
in edit mode. With the Store
Operation this is used to select
whether to store Preset, Song
or IO/Util parameters.
Parameters surrounded by
triangular brackets (eg. <STEP
INS> ) may be changed using
the DATA WHEEL.
PUSH WHEEL TO ENTER
Pressing the DATA WHEEL
activates special functions in
the Preset edit and Song edit
modes. Parameters surrounded
by triangular brackets (eg.
<Execute> MIDI-Dump) perform
their actions when ENTER is
pressed.

TC-Helicon VoiceLive Specifications

Analog Inputs

mic impedance	3.6/1.8 kOhm
line impedance	21/13 kOhm
line input level at 0 dBFS	24 dBu to 0 dBu

Analog Outputs

output impedance	40 Ohm
max output level balanced	20 dBu
max output level unbalanced	14 dBu

Operating Environment

operating temperature	32° F to 122° F (0° C to 50° C)
storage temperature	-22° F to 167° F (-30° C to 70° C)
humidity	Max. 90 % non-condensing

Supplementary

dimensions	11.1" x 10.25" x 3.5" (282 x 260 x 89 mm)
weight	5.9 lb. (2.7 kg)
mains voltage	100 to 240 VAC, 50 to 60 Hz (auto-select)
