Note: No need to clean the the original thermal gel when fill new thermanl gel. Prepare the “Thermal
Gel” locally because of shipment restricted.
Thermal Gel
(Prepare locally)
Thermal conductivity higher
than 3.0W

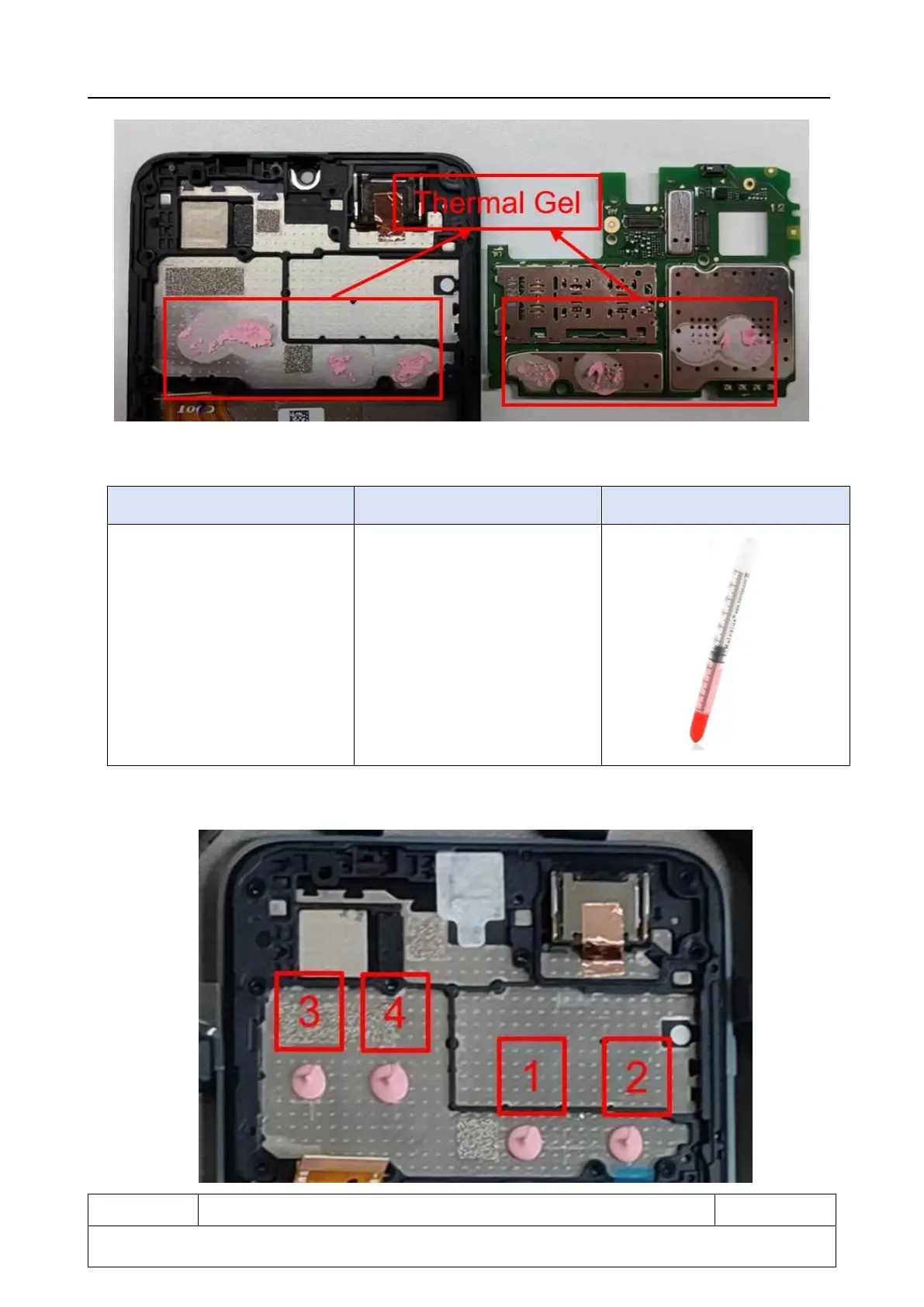

It is suggested to add the new thermal gel on TP-frame-pre-assembly directly opposite the main
PCBA. The dosage is 100mg for position 1,2 and 150mg for position 3,4 as marked in the figure.
