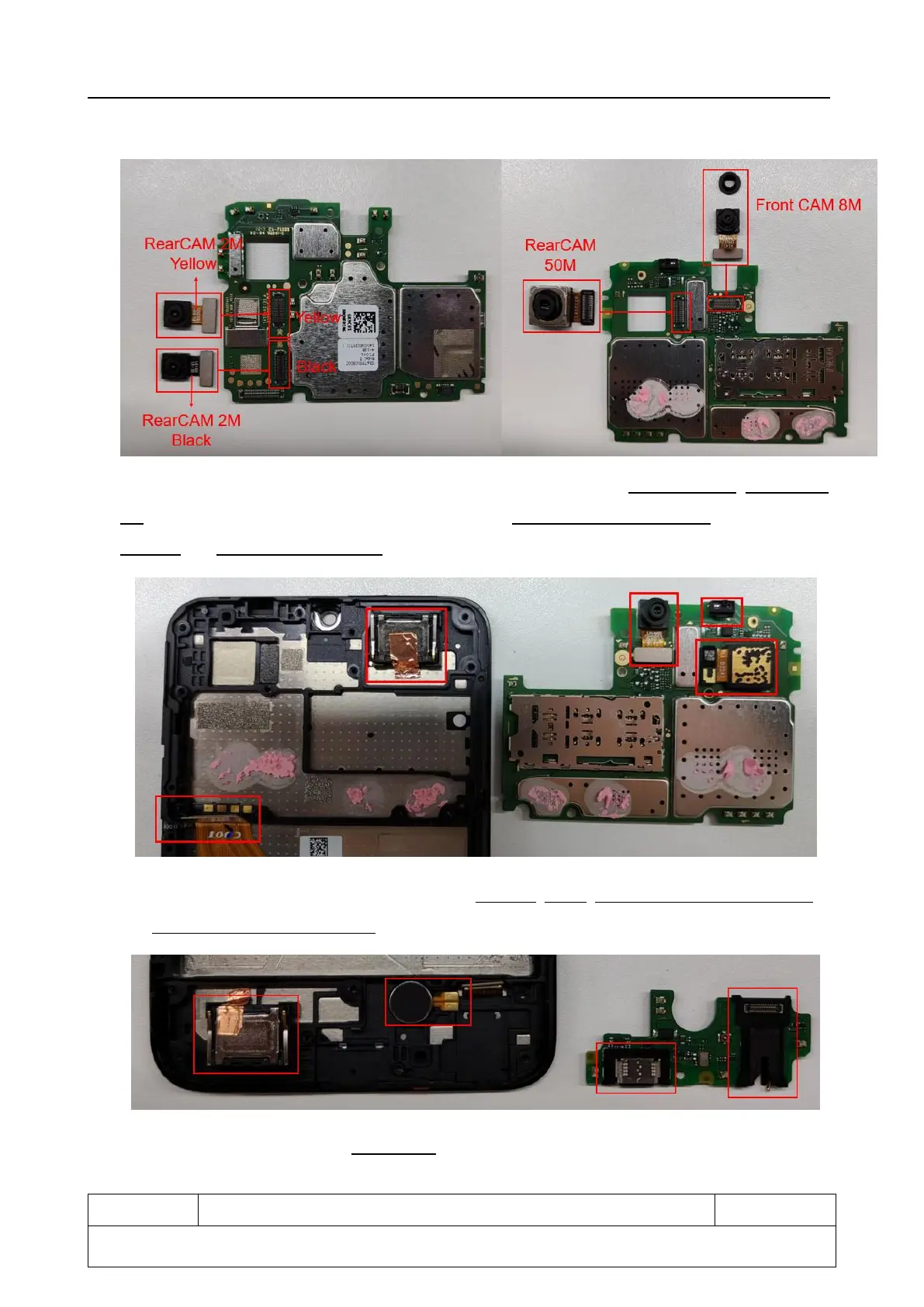

4) Assemble the cameras and matching rubbers to the Main PCBA according to the following tag tips.
5) Before assembling the Main PCBA, assemble the RUBBER_FOR_ps, RearCAM 50M, Front CAM
8M and its rubber. Pay attention to the direction of the RUBBER_FOR_UPP_CAM. Assemble the
Speaker and SIDE_KEY_FPC_ASM on the Furnished Underfilling.
6) Before assembling the Sub PCBA, assemble the Speaker, Motor, RUBBER_FOR_MICRO_USB
and RUBBER_FOR_AUDIO_JACK.
7) Pay attention to the trace of the RF_CABLE and the position of the RF Connector.
