TCL Alcatel PLUS 10 WIFI

L2 Repair Document TCL Communication Ltd.
Rev.
ONETOUCH 8085+LKB001X/A
Level 2 Repair Document
Page
1.0
60/71
All rights reserved. Transfer, copy, use or communication of this file is prohibited without authorization.

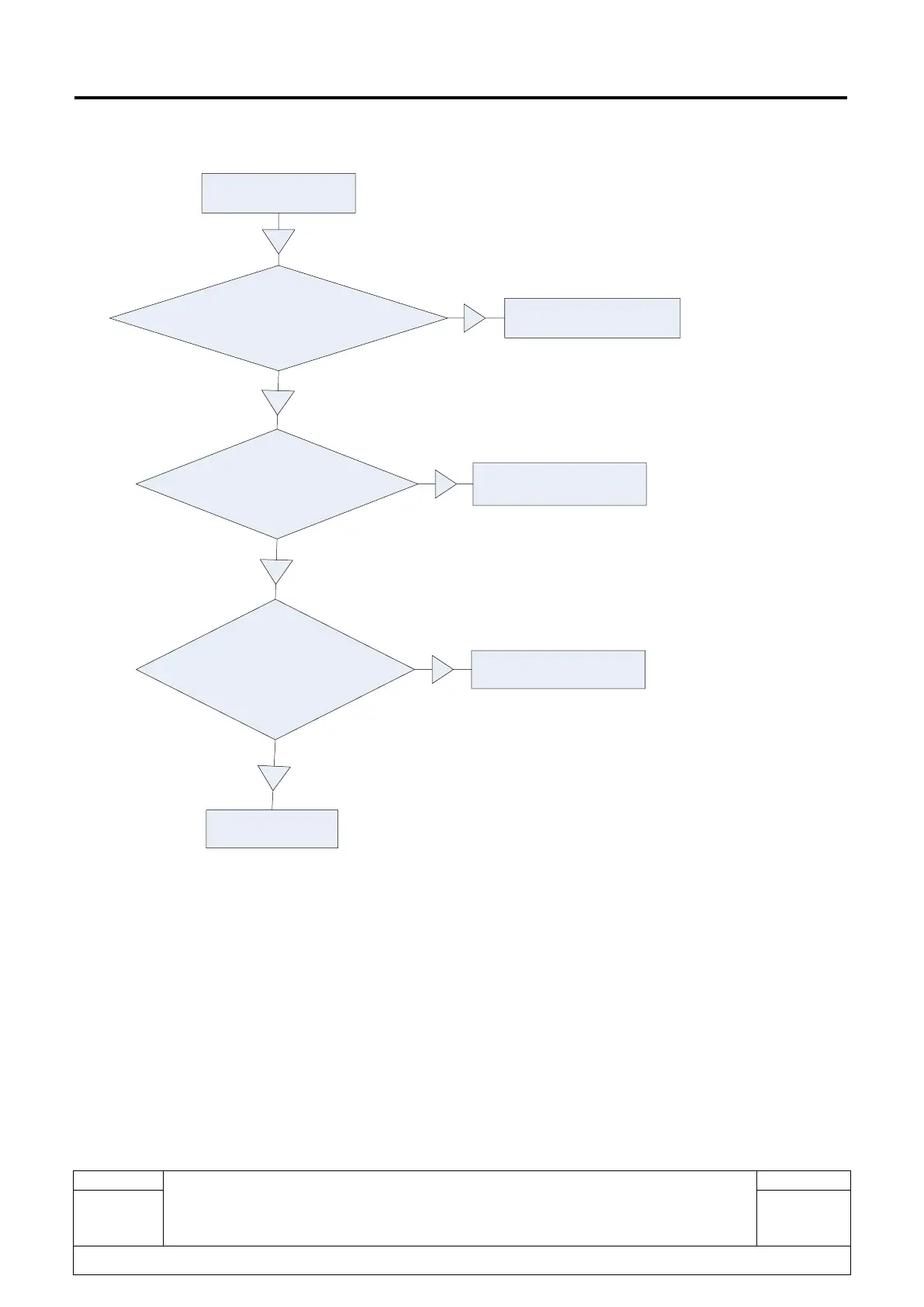

 Sub camera function failure
Check whether the connection
between sub camera and sub
camera connector is good
N
Y
N
Check whether sub camera is
normal
Y
C h e c k w h e t h e r s u b c a m e r a
connector is normal
N
Reassemble sub camera
Replace sub camera
Reweld or replace sub
camera connector
Y
Replace PCBA
Sub camera function
failure
Y
