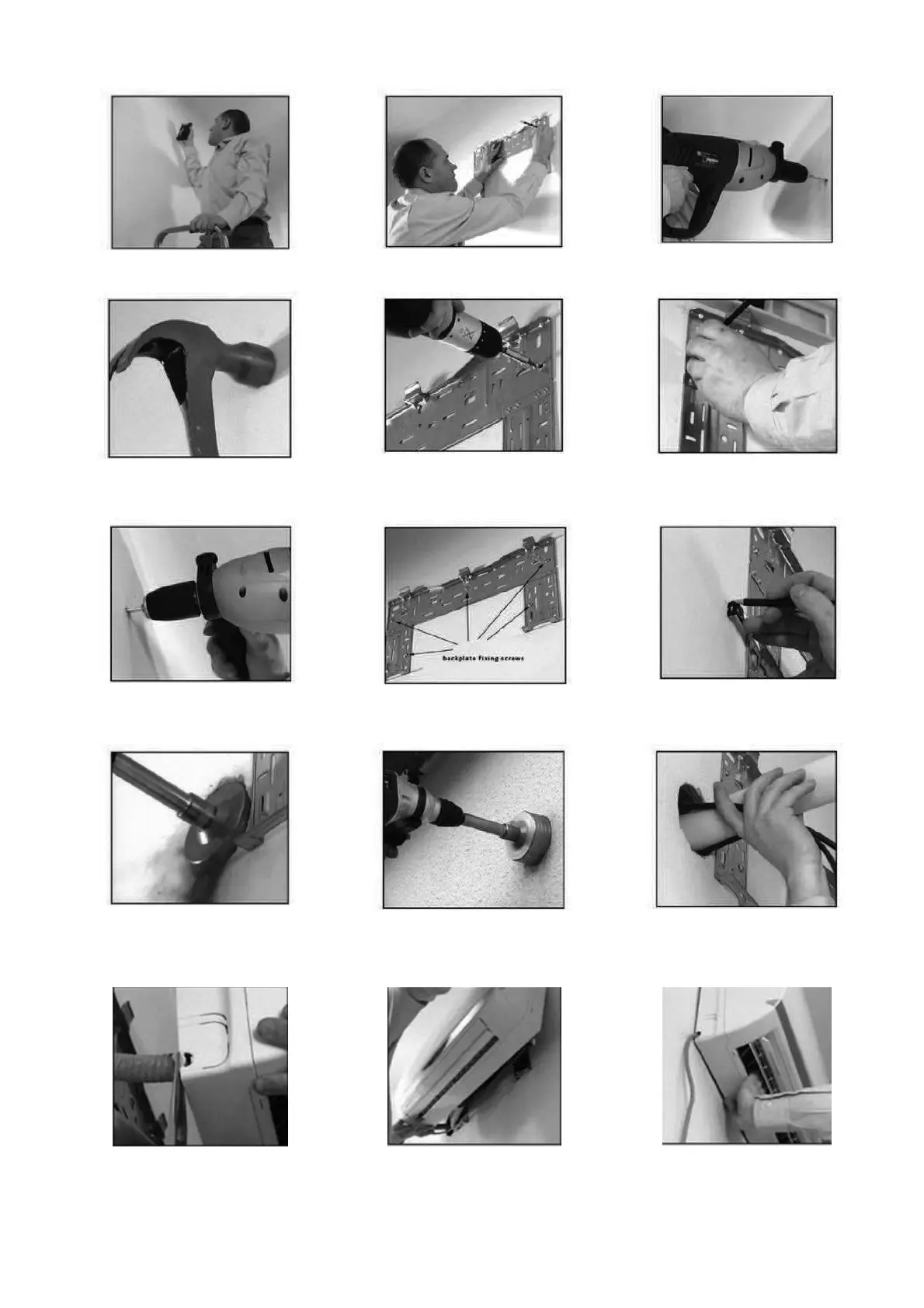

1. Check the area for any hidden
wires or pipes.
2. Mark the right hand backplate
screw position.
3. Remove the backplate and drill a
7mm hole.
4. Tap a 7mm wall plug into position.
5. Screw the backplate to the wall
using 1.5 inch number 10 screws.
6. Check to ensure level, then mark
the other holes and swing the
backplate away.
7. Drill the rest of the holes and
insert the wall plugs.
8. Fix the backplate to the wall.
9. Mark the hole centre and make
sure the cutter will clear the
backplate.
10. Drill the hole at a slight
downwards angle. When you feel
the pilot drill exit the outside wall
stop.
11. Finish the hole from the outside
to keep it clean.
12. Feed the cord and drain hose
carefully through the wall.

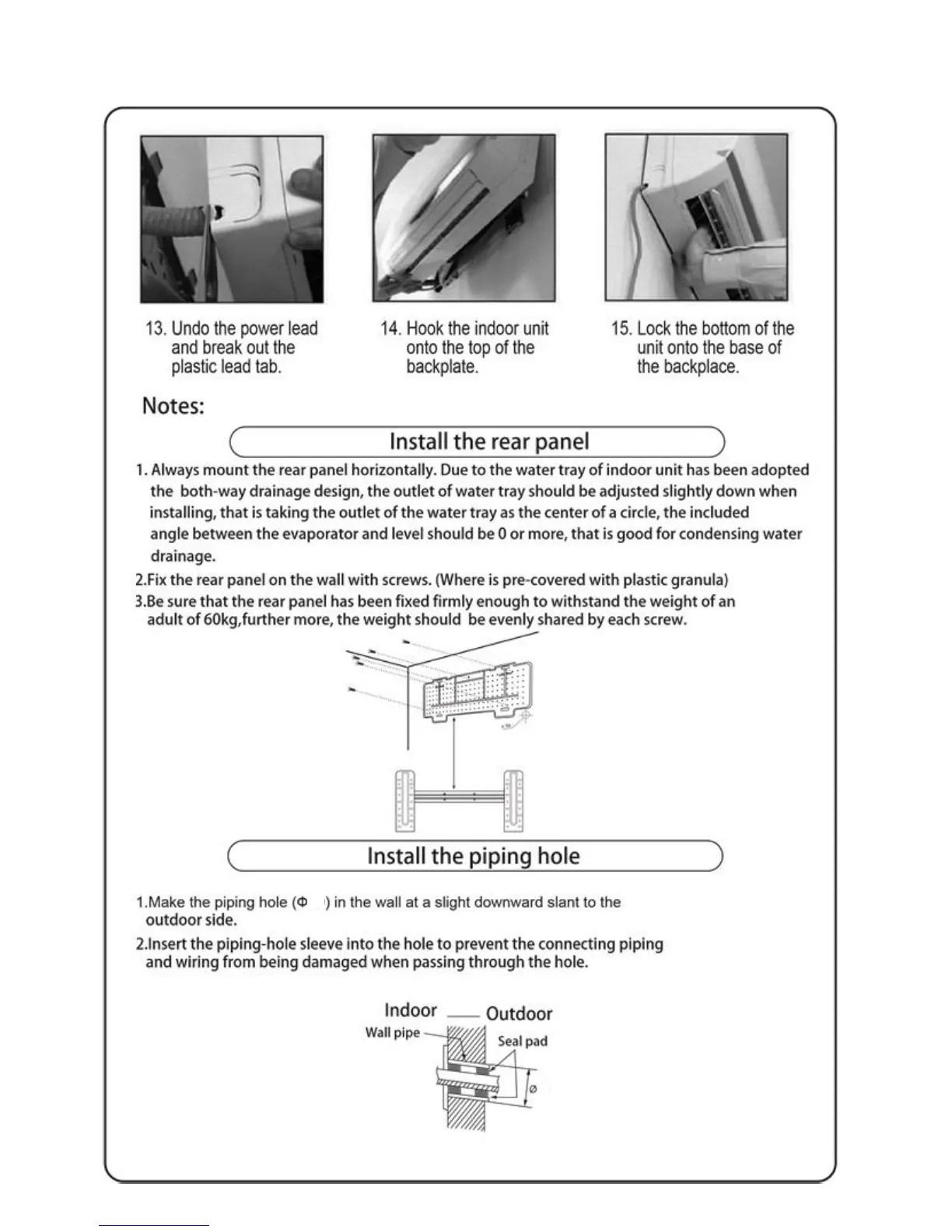

13. Undo the power lead and break
out the plastic tab.
14. Hook the indoor unit onto the top
of the backplate.
15. Lock the bottom of the unit onto
the base of the backplate.
