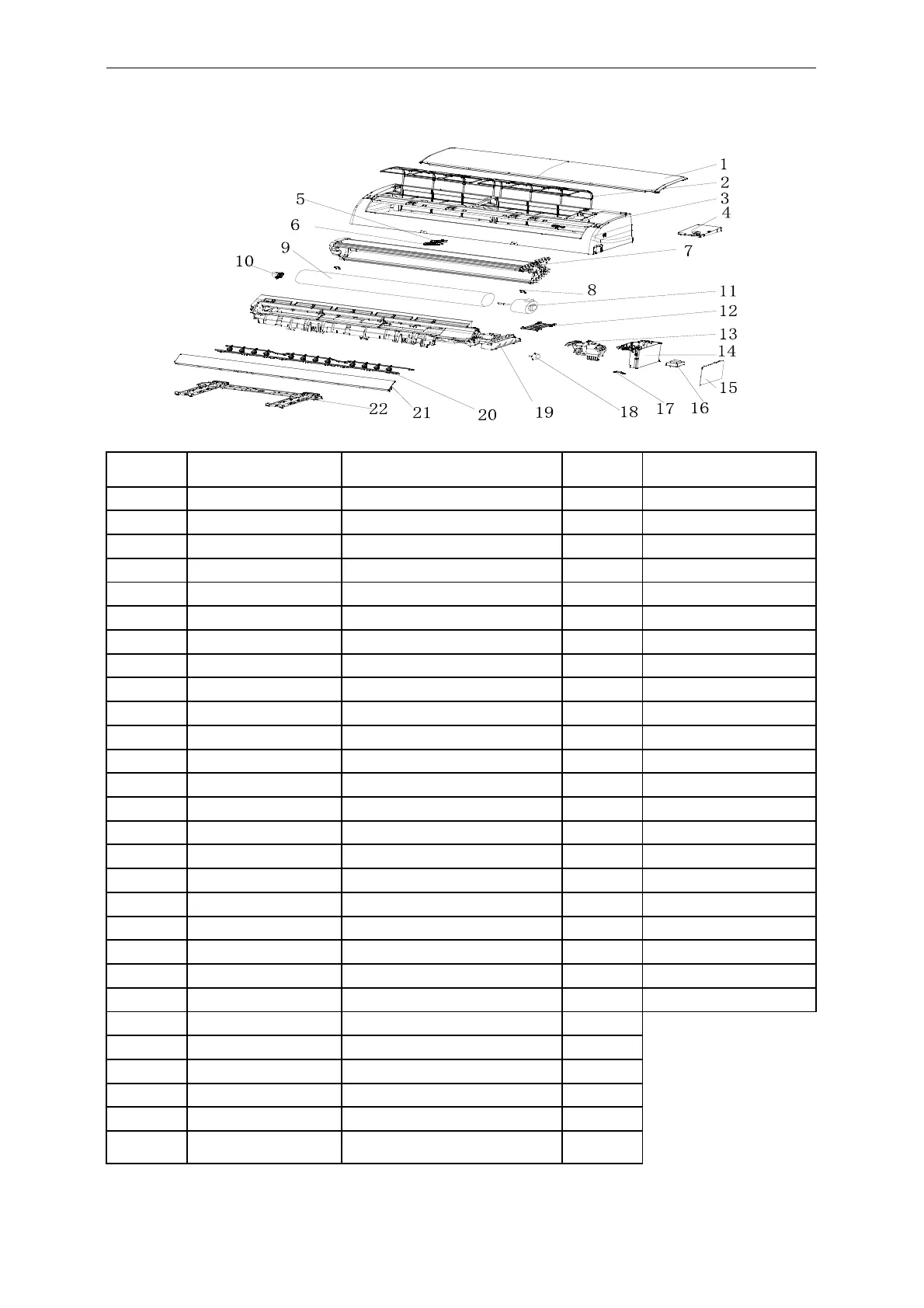

Indoor Unit - TAC-12CHSD/XPI
No. Part No. Part Name Q’ty Remark
1
41106-000612 Front Panel 1
2
42008-000037 Air Filter 2
3
41106-002362 Face Frame 1
4
41105-000171 Electrical Box Cover 1
5
31102-000084 Display PCB 1
6
42003-000014 Display PCB Box 1
7
92011-002812 Evaporator 1
8
41108-000102 Screw Cover 1
9
42004-000039 Cross Fan 1
10
42007-000001 Bearing Mount 1
11
22001-000262 Indoor Motor 1
12
41101-000242 In And Out Pipe Fixer 1
13
42003-000060
Indoor Motor Cover 1
14
41105-000104 Electrical Box 1
15
31101-000202
Main PCB 1
16
/ Transformer /
17
42001-000103 Cable Clamp 1
18
22001-000313 Vane Motor 1
19
41199-002740 Base 1
20
41101-000033 Vertical Vane Assembly 2
21
41103-000110
Vane 1
22
41109-000040 Installation Plate 1
24
10104-100014 Indoor Sensor Assembly 1
25
22013-000777 Remote Controller 1
26
32001-000094 Wifi Module 1
27
A1101-008494 Indoor Carton 1
28
A2006-000048 Left Foaming 1
29
A2006-000028 Right Foaming 1
TCL Air Conditioner Service Manual
Not shown in
Explosion view
To Next Page
