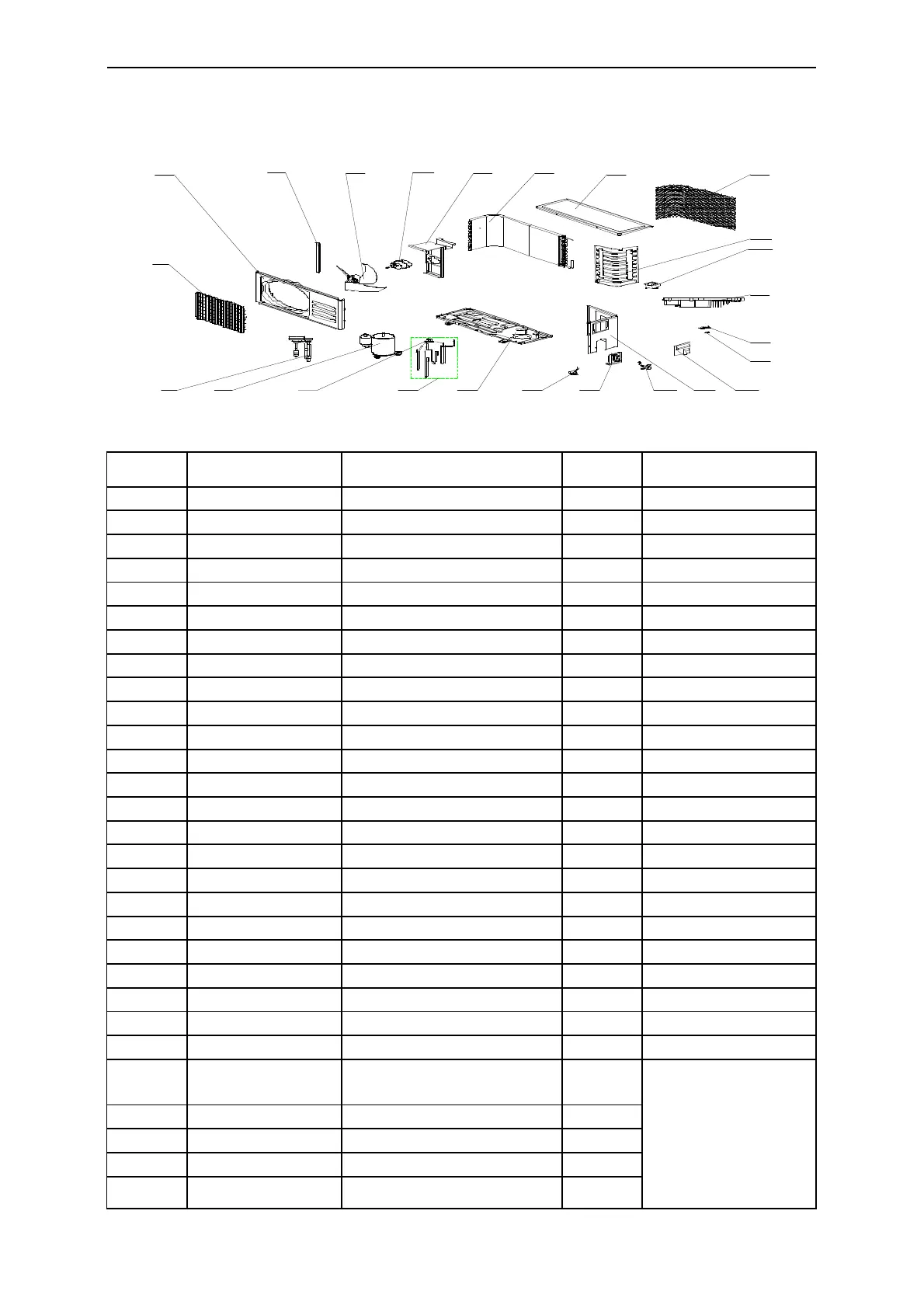

Outdoor Unit - TAC-12CHSD/XPI
No. Part No. Part Name Q’ty Remark
1 42011-000109 Grille 1
Optional
2 41207-000023 Top cover 1
3 92011-000766 Condenser 1
4 41203-000037 Outdoor motor supporter 1
5 22001-000049 Outdoor motor 1
6 42004-000070 Propeller fan 1
7 41205-000124 Left grille supporter 1
8 41206-000041 Front plate 1
9 42011-000084 Fan guard 1
10 92007-002044 Capillary assembly 1
11 92014-000352 Compressor 1
12 92008-000209 4-way Valve 1
13 92007-000818 4-way Valve Assembly 1
14 41202-000062 base 1
15 92008-000024 Two-way valve 1
16 41204-000010 Valve supporter 1
17 92008-000131 Three-way valve 1
18 41205-000062 Right plate 1
19 41201-000005 Electrical box cover 1
20 42001-000036 Cable clamp 1
21 11304-100017 Terminal 1
22 31201-000932 Outdoor PCB assembly 1
23 22011-000012 Inductor 1
24 41208-000145 Partition plate 1
25 10104-100033
Pipe Temp. sensor and
outdoor Temp. sensor
1
26 10104-100036 Discharge Temp. sensor 1
27 A1201-009140 Cabinet carton 1
28 A1401-000012 Base Carton 1
29 A1202-000002 Cover foaming 1
TCL Air Conditioner Service Manual
Not shown in
explosion view
43
2
1
18 19
24
23
22
21
20
675
17
14
15 16
8
9
12 13
10
11
To Next Page
