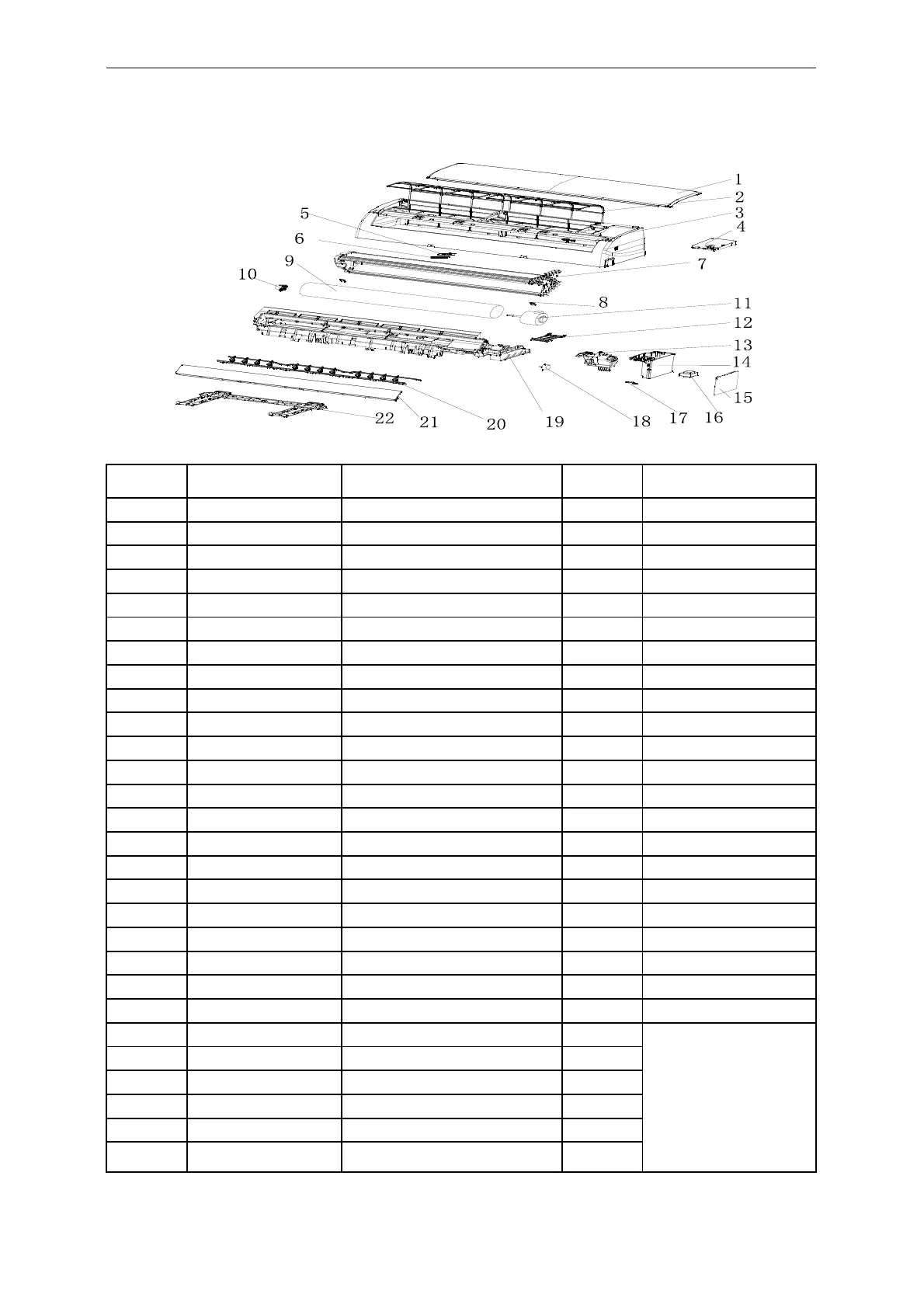

TCL TAC-09CHSD/XPI - Indoor Unit - TAC-09 CHSD;YA11 I

No. Part No. Part Name Q’ty Remark
1 41106-001726 Front Panel 1
2 42008-000114 Air Filter 2
3 41106-002383 Face Frame 1
4 41105-000171 Electrical Box Cover 1
5 31102-000084 Display PCB 1
6 42003-000014 Display PCB Box 1
7 92011-002812 Evaporator 1
8 41108-000102 Screw Cover 1
9 42004-000039 Cross Fan 1
10 42007-000001 Bearing Mount 1
11 22001-000262 Indoor Motor 1
12 41101-000243 In And Out Pipe Fixer 1
13
42003-000060
Indoor Motor Cover 1
14 41105-000104 Electrical Box 1
15
31101-000294
Main PCB 1
16 / Transformer /
17 42001-000103 Cable Clamp 1
18 22001-000313 Vane Motor 1
19 41102-000080 Base 1
20 41101-000034 Vertical Vane Assembly 2
21
41103-000122
Vane 1
22 41109-000047 Installation Plate 1
23 10104-100014 Indoor Sensor Assembly 1
24 22013-000777 Remote Controller 1
25 32001-000096 Wifi Module 1
26 A1101-008463 Indoor Carton 1
27 A2006-000055 Left Foaming 1
28 A2006-000035 Right Foaming 1
TCL Air Conditioner Service Manual
Indoor Unit- TAC-09CHSD/YA11I
Not shown in
Explosion view
17
