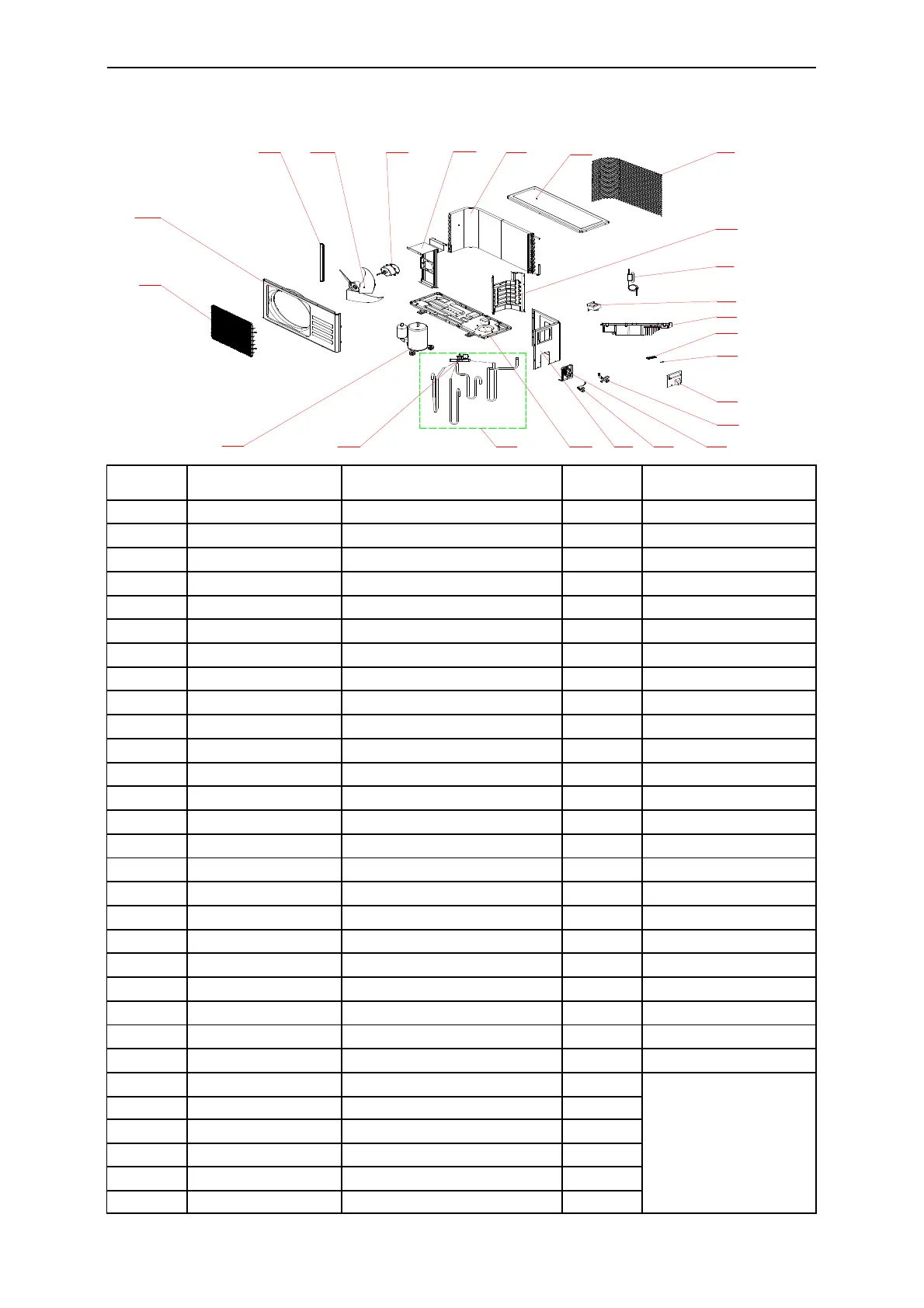

TCL TAC-09CHSD/XPI - Outdoor Unit - TAC-09 CHSD;YA111

No. Part No. Part Name Q’ty Remark
1
42011-000127 Grille 1
2
41207-000029 Top cover 1
3
92011-000657 Condenser 1
4
41203-000054 Outdoor motor supporter 1
5
22001-000049 Outdoor motor 1
6
42004-000107 Propeller fan 1
7
41205-000133 Left grille supporter 1
8
41206-000054 Front plate 1
9
42011-000100 Fan guard 1
10
92014-000542 Compressor 1
11
92008-000209 4-way valve 1
12
92007-000950 4-way valve assembly 1
13
41202-000177 Base 1
14
41205-000077 Right plate 1
15
92008-000051 Two-way valve 1
16
41204-000018 Valve supporter 1
17
92008-000146 Three-way valve 1
18
41201-000029 Eelectronic Box Cover 1
19
42001-000038 Cable clamp 1
20
11304-100004 Terminal 1
21
31201-000984 Outdoor PCB Assembly 1
22
22011-000002 Inductor 1
23
92007-001891 Capillary assembly 1
24
41208-000141 Partition plate 1
25
10104-100030 Pipe Temp. sensor and 1
26
10104-100034 Discharge Temp. sensor 1
27
A2005-000523 Base carton 1
28
A1201-009108 Cabinet carton 1
29
A1202-000031 Base foaming 1
30
41213-000023 Cover foaming 1
TCL Air Conditioner Service Manual
Outdoor Unit - TAC-09CHSD/YA11I
Not shown in
explosion view
10
11
12
8
9
7
6
5
17
13
14
16
15
19
18
20
21
23
22
4
3
2
1
24
18
