TCL Air Conditioner Service Manual
Resistance at 25℃: 5 kΩ.

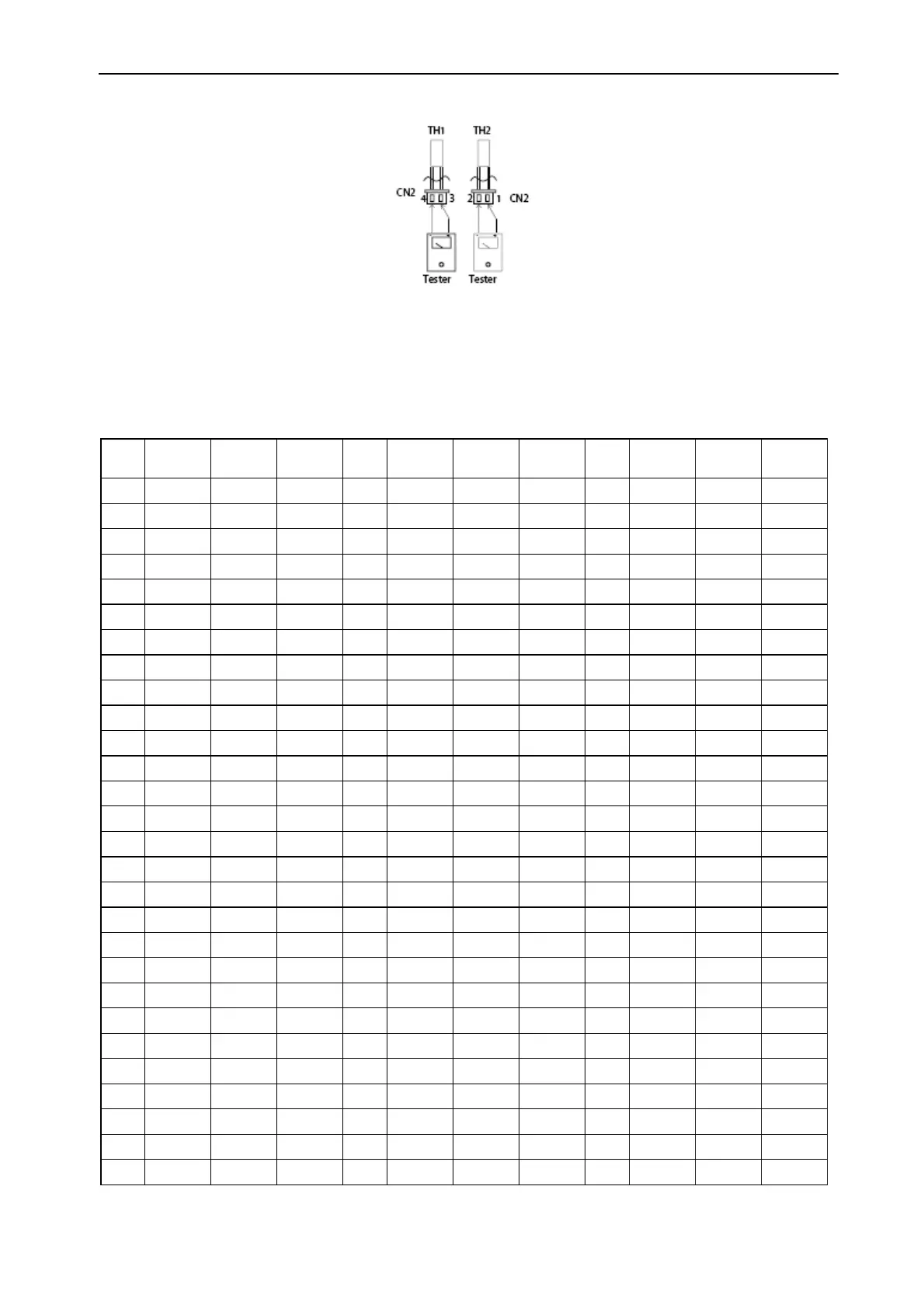

TH1: indoor room temperature sensor and outside air temperature sensor
TH2: indoor exchan
ge temperature sensor and outside exchange temperature sensor
Before measuring resistance, disconnect connectors as shown above.
2. Outdoor unit sensor temperature characteristics
TEMP.
(℃)
R min
(k Ohm)
R(t)
(k Ohm)
R max
(k Ohm)
TEMP.
(℃)
R min
(k Ohm)
R(t)
(k Ohm)
R max
(k Ohm)
TEMP.
(℃)
R min
(k Ohm)
R(t)
(k Ohm)
R max
(k Ohm)
-30
283.3 322.9 367.7
24
19.36 20.89 22.52
78
2.563 2.654 2.745
-29
267.4 304.4 346.3
25
18.55 20 21.54
79
2.481 2.567 2.654
-28
252.5 287.1 307.4
26
17.77 19.14 20.6
80
2.402 2.484 2.567
-27
238.5 270.9 307.4
27
17.03 18.32 19.7
81
2.327 2.404 2.483
-26
225.4 255.7 289.8
28
16.32 17.55 18.85
82
2.254 2.327 2.401
-25
213.1 241.4 273.3
29
15.65 16.81 18.04
83
2.183 2.253 2.323
-24
201.5 228 257.9
30
15 16.1 17.27
84
2.115 2.182 2.248
-23
190.6 215.5 243.4
31
14.39 15.43 16.54
85
2.05 2.113 2.176
-22
180.3 203.6 229.8
32
13.81 14.79 15.34
86
1.985 2.047 2.109
-21
170.7 192.5 217
33
13.25 14.18 15.17
87
1.922 1.983 2.045
-20
161.6 182.1 205
34
12.72 13.6 14.54
88
1.861 1.922 1.983
-19
153.1 172.3 193.7
35
12.21 13.05 13.93
89
1.802 1.862 1.923
-18
145 163.1 183.2
36
11.72 12.52 13.36
90
1.746 1.805 1.865
-17
137.5 154.4 173.2
37
11.26 12.01 12.81
91
1.692 1.75 1.809
-16
130.3 146.2 163.9
38
10.82 11.53 12.29
92
1.639 1.697 1.755
-15
123.6 138.5 155.1
39
10.29 11.07 11.78
93
1.589 1.646 1.703
-14
117.3 131.3 146.8
40
9.986 10.63 11.31
94
1.54 1.596 1.653
-13
111.3 124.4 139
41
9.6 10.21 10.85
95
1.493 1.549 1.604
-12
105.6 118 131.7
42
9.231 9.813 10.42
96
1.448 1.502 1.558
-11
100.3 111.9 124.7
43
8.878 9.43 10
97
1.404 1.458 1.512
-10
95.24 106.2 118.2
44
8.54 9.064 9.612
98
1.362 1.415 1.469
-9
90.49 100.8 112.1
45
8.217 8.714 9.233
99
1.321 1.373 1.426
-8
85.99 95.68 106.3
46
7.908 8.38 8.872
100
1.284 1.335 1.387
-7
81.75 90.86 100.8
47
7.612 8.06 8.526
101
1.245 1.296 1.348
-6
77.74 86.31 95.74
48
7.328 7.754 8.196
102
1.209 1.258 1.309
-5
73.94 82.01 90.88
49
7.057 7.461 7.88
103
1.173 1.222 1.272
-4
70.35 77.95 86.29
50
6.797 7.18 7.578
104
1.139 1.187 1.236
-3 66.96 74.11 81.96 51 6.548 6.912 7.289 105 1.105 1.153 1.202
42
