TCL TACM2O-28HIA User Manual

Air Conditioner Service Manual
40

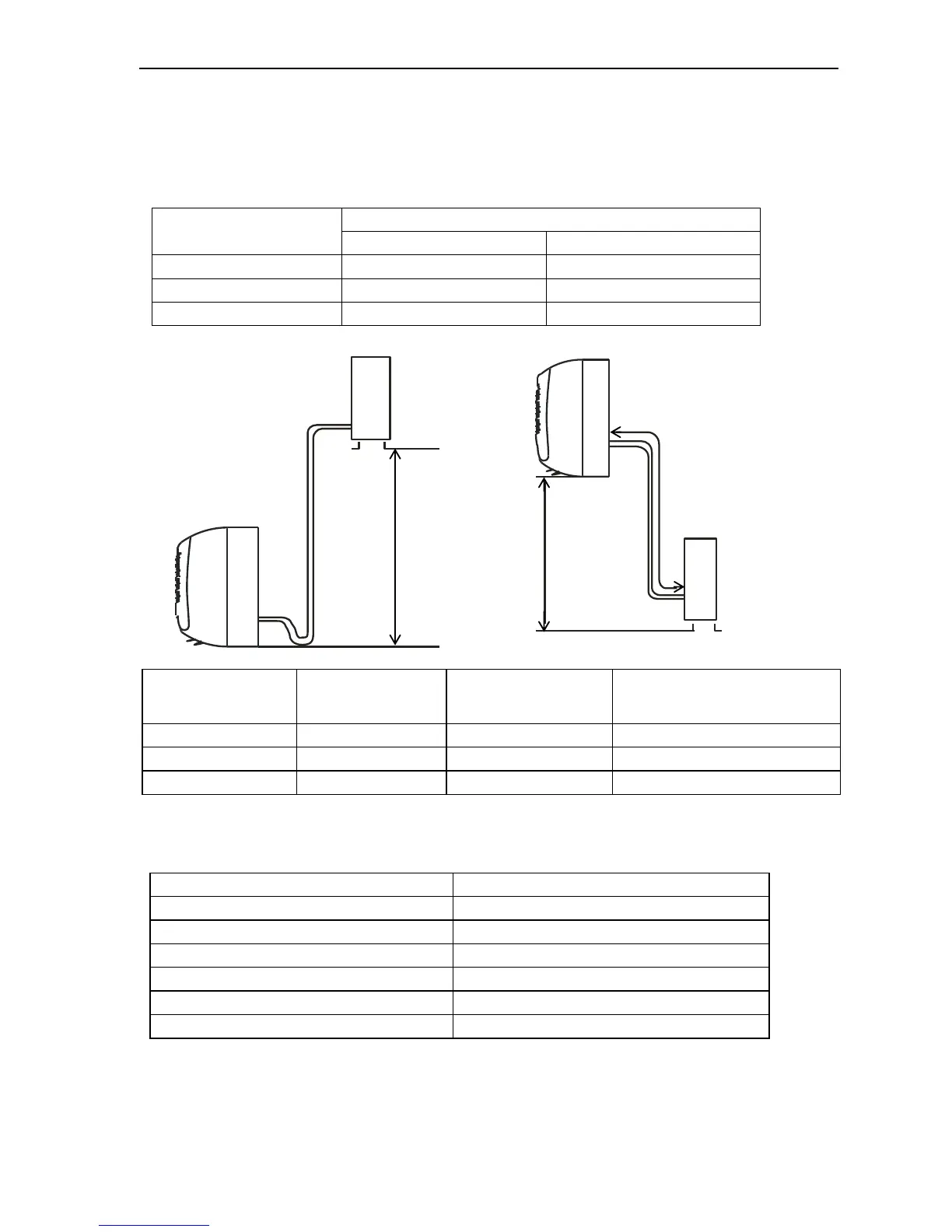

10. Installation manual
10.1 Installation Details
Connecting pipe length
Model
Pipe size(Inch)
Liquid
Gas
9K
1/4
3/8
12K
1/4
3/8
18K
1/4
1/2
Mode
Standard length: m
Refrigerant piping
Max. length: m
A
Additional refrigerant
Calculation: ×g=20g/m(A-5m)
9K
5.0
20
15g/m
12K
5.0
20
15g/m
18K
5.0
20
20g/m
Connecting cables
The power cord should be selected according to the following specifications sheet.
Appliance Amps
Wire Size
5
AWG21/0.75 mm2
10
AWG18/1.0 mm2
13
AWG15 /1. 5 mm2
18
AWG14/1.6 mm2
25
AWG12/2.0 mm2
30
AWG10/2.5 mm2
Outdoor unit
In door unit
Pipe length is
20 meters Max.
be less than 10m
Height should
Outdoor unit
Indoor unit
Pipe length is
20 meters Max.
be less than 10m
Height should
