Air Conditioner Service Manual
42

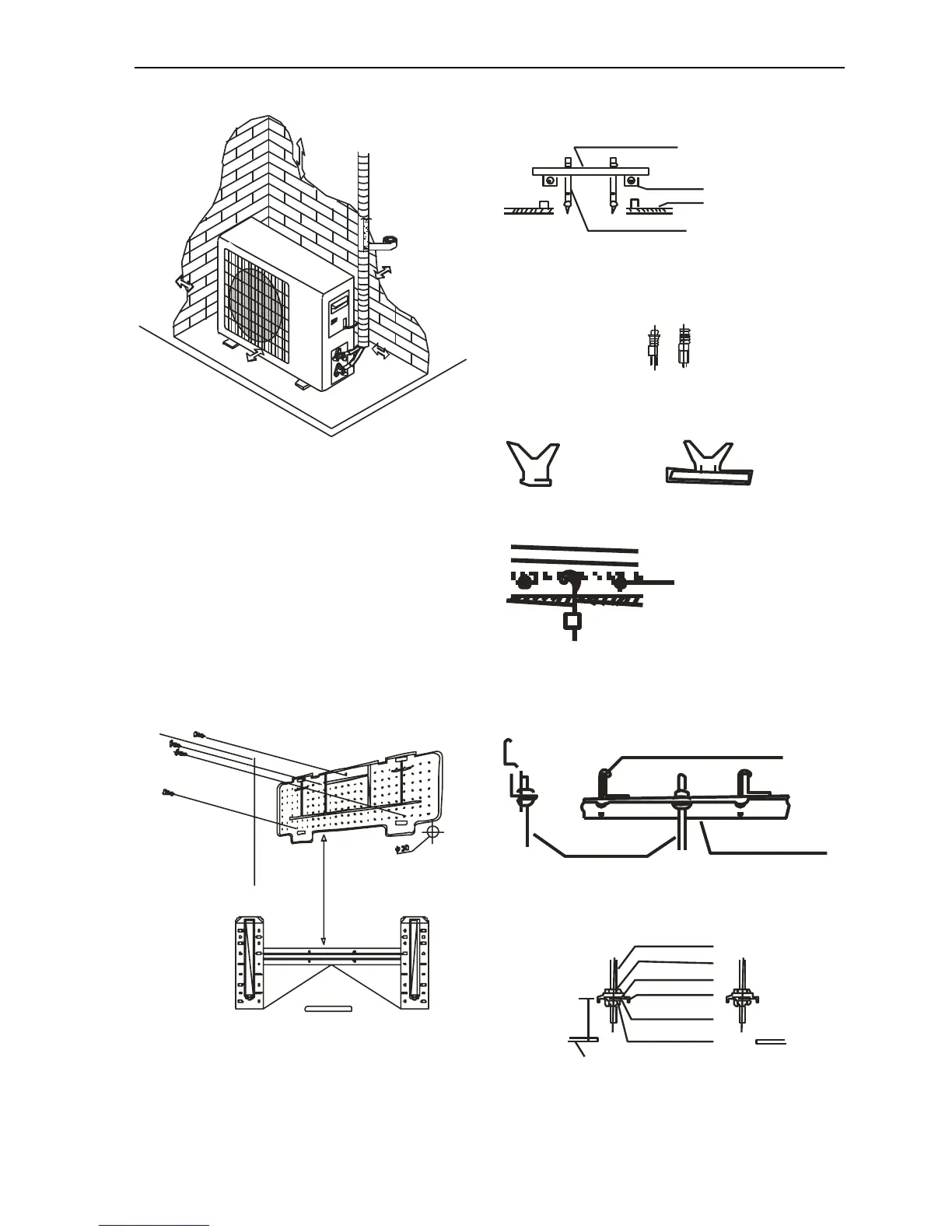

To install, proceed as follows:
10.2.1 Installation of the mounting plate.
Wall split type:
1) By using a level, put the mounting plate in a
perfect square position vertically and horizontally.
2) Drill 32mm deep holes in the wall to fix the plate.
3) Insert the plastic anchors into the hole.
4) Fix the mounting plate by using the provided
tapping screws.
5) Check that the mounting plate is correctly fixed.
Note: The shape of the mounting plate may be
different from the one above, but installation
method is similar.
Cassette and Duct type:
Wooden construction
Put the square timber over the roof beam, then install the
hanging screw bolts.
Timber over the beam
Roof beam
Hanging Screw
Ceili ng
Bolt
For finished concrete bricks
Install the hanging hook with expansible bolt into the
concrete deep to 45~50mm to prevent loose.
New Concrete Bricks
Inlaying or embedding the screw bolts.
(Blade shape (Slide insertion)
insertion)
(Pipe hanging and embedding screw bolt)
Steel roof beam structure
Install the supporting angle steel.
Overhanging the indoor unit
Adjust the gasket (down side) to 90mm over the
ceiling.
Install the hanging bolt into T groove of the hanging
tool. Overhang the indoor unit and ensure it is level
using a level indicator.
300mm
500mm
2000mm
300mm
500mm
Hanging Bolt
Nut (Up Side)
Gasket (Up Side)
Installing Ear
Nut (Down Side)
Down sid e of the ceiling
Gasket (Down Side)
90mm
To Next Page
