3) DELIVERY SCREENS
Configure Type 1 Using the arrow keys to move Red Cursor around the screen, highlight the field you
would like to change and select ENTER. The field options are in Table 1 below.
Configure Type 2 Using the arrow keys to move Red Cursor around the screen, highlight the field you
would like to change and select ENTER. The field options are in Table 1 below.
Configure Type 3 Using the arrow keys to move Red Cursor around the screen, highlight the field you
would like to change and select ENTER. The field options are in Table 1 below.
Type 4 Not configurable by itself. Displays the large screen field option for Configuration
Type 3.
Type 5 Using the arrow keys to move Red Cursor around the screen, highlight the field you
would like to change and select ENTER. The field options are in Table 1 below.
Empty No Data
Product Name (LPG, Diesel, Av Gas, Etc.)
Delivery Gross Non-Compensated Delivery Total
Delivery Net Compensated Delivery Total
Delivery Volume Amount of Delivery
Delivery Total Total Price Delivered
Flowrate Amount Delivered through Per Minute
AVG Temperature Average Temperature of Product
Temperature Temperature of Product
Mass Mass of the Product (e.g. Pounds per Gallon, etc.)
Preset Remain Remaining Preset (What is le of the Preset Total)
Preset Volume Preset Volume Amount for Delivery
Preset Amount Preset Currency Amount for Delivery
Comp. Table Compensaon Table (6B, 54B, Etc.)
Unit Price Unit Price
Calc. Price Calculated Price
TAX1 Tax
TAX2 Tax

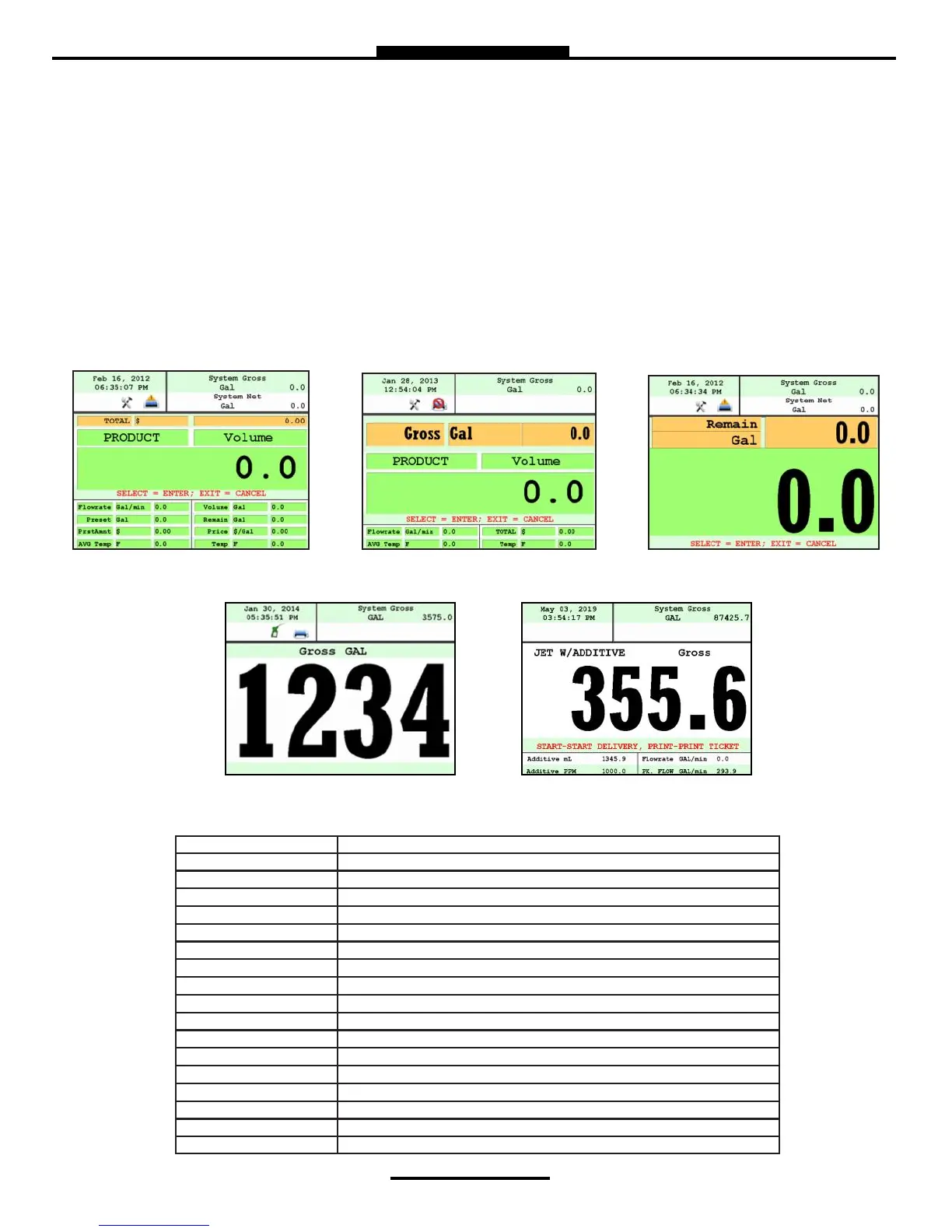

TYPE 1 TYPE 2 TYPE 3
DISPLAY FIELD SELECTION TABLE 4 OPTIONS:
TYPE 4 TYPE 5
