TCS 3000 User Manual

48
Total Control Systems www.tcsmeters.com

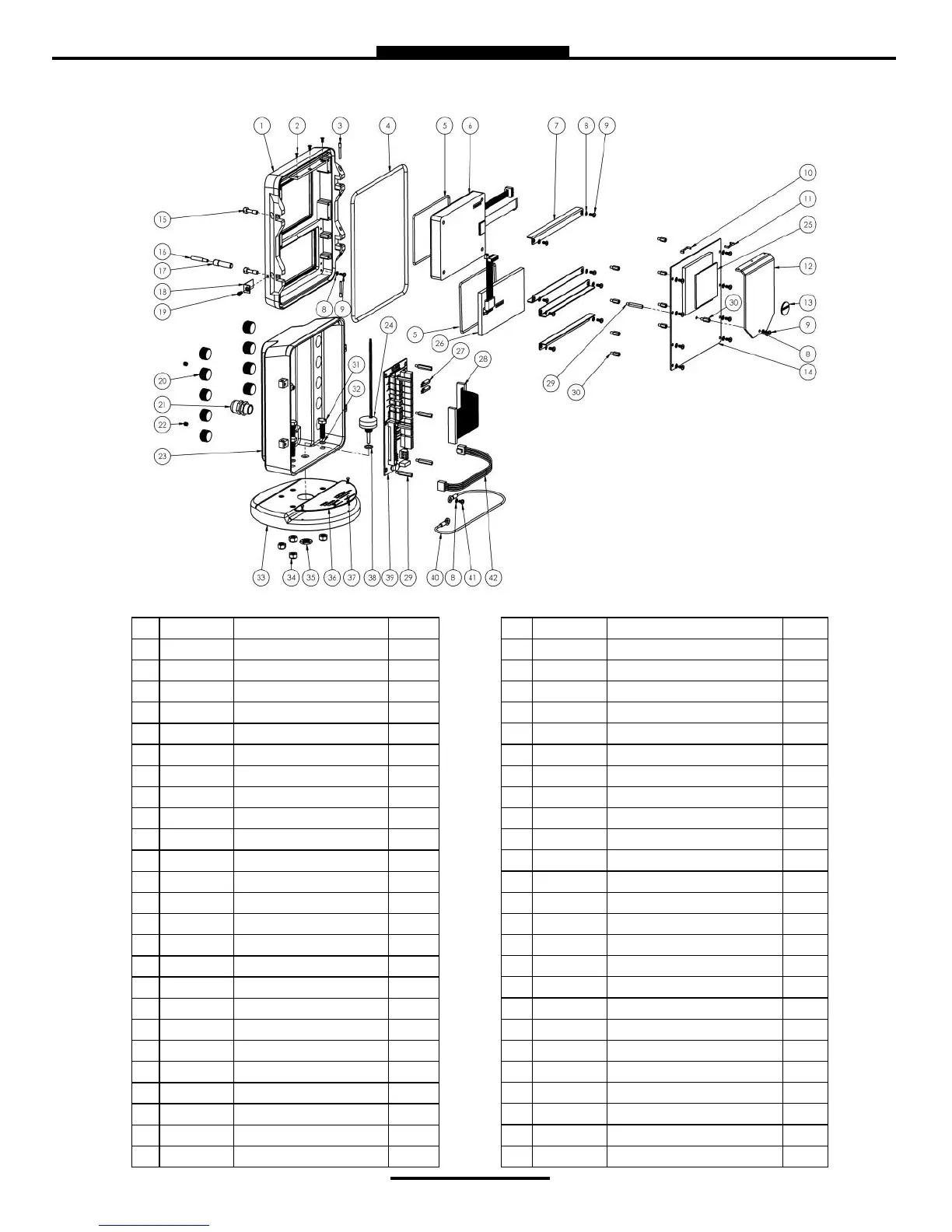

TCS 3000 PARTS LIST
Item Part No. Descripon Quanty
1 TCS300150 Front Cover 1
2 TCS300122 Countersunk Screw 3
3 TCS300172 Hinge Pin 2
4 TCS300174 Gasket Cover 1
5 TCS300144 Gasket Display / Keyboard 2
6 TCS300320 Display w/ Screen Protector 1
7 TCS300131 Compression Bar 4
8 TCS300138 Washer 18
9 TCS300137 Screw 18
10 TCS300261 Retaining Clip 1
11 TCS300260 Retaining Clip 1
12 TCS300120 Radiator 1
13 TCS300797 Replaceable Baery 1
14 TCS300110 PC Board Assembly 1
15 TCS300171 Socket Screw 2
16 TCS300156 Calibraon Stud 1
17 TCS300158 Calibraon Stud Body 1
18 TCS300153 Calibraon Label 1
19 TCS300154 Drilled Calibraon Screw 1
20 TCS300252 1/2” UL Plug 9
21 TCS300133 Cord Grip; 1/2” NPT Atex 1
22 TCS300173 Socket Set Screw 2
23A TCS300275 75° Rear Housing; 1/2” NPT 1
23B TCS300290 90° Rear Housing; 1/2” NPT 1
23C TCS300280 Remote Rear Housing; 1/2” NPT 1
Item Part No. Descripon Quanty
23D TCS300175 Remote Rear Housing; M20 1
23E TCS300190 Remote Rear Housing; M20 1
23F TCS300180 Remote Rear Housing; M20 1
24 TCS300160 Pulse Encoder 1
25 TCS300148 Thermal Pad 1
26A TCS300230 ENGLISH Keyboard Assembly 1
26B TCS300256 French Keyboard Assembly
26C TCS300257 Spanish Keyboard Assembly
26D TCS300258 Portuguese Keyboard Assembly
27 TCS300759 1K Resistor 2
28 TCS300176 50 PIN Ribbon Cable 1
29 TCS300124 M4 x 27 Stando 7
30 TCS300125 M4 x 11 Stando 9
31 TCS300202 Screw 4
32 TCS300206 Oring 4
33 TCS300210 75°/90° Rear Housing Stand 1
34 TCS300204 Nylon Locknut 4
35 TCS300162 Pulser Nut 1
36 TCS300217 Name Plate 1
37 TCS790095 Drive Screw 3
38 TCS300166 Oring 1
39 TCS300112 Terminal Board w/ Connector 1
40 TCS300181 6” Grounding Wire 1
41 TCS300151 Screw 1
42 TCS300177 Power Ribbon Cable 1
