TdA ZK300DC - Electrical; Main Terminal Wiring

ZK300DC SWING GATE OPERATOR USER’S MANUAL
13

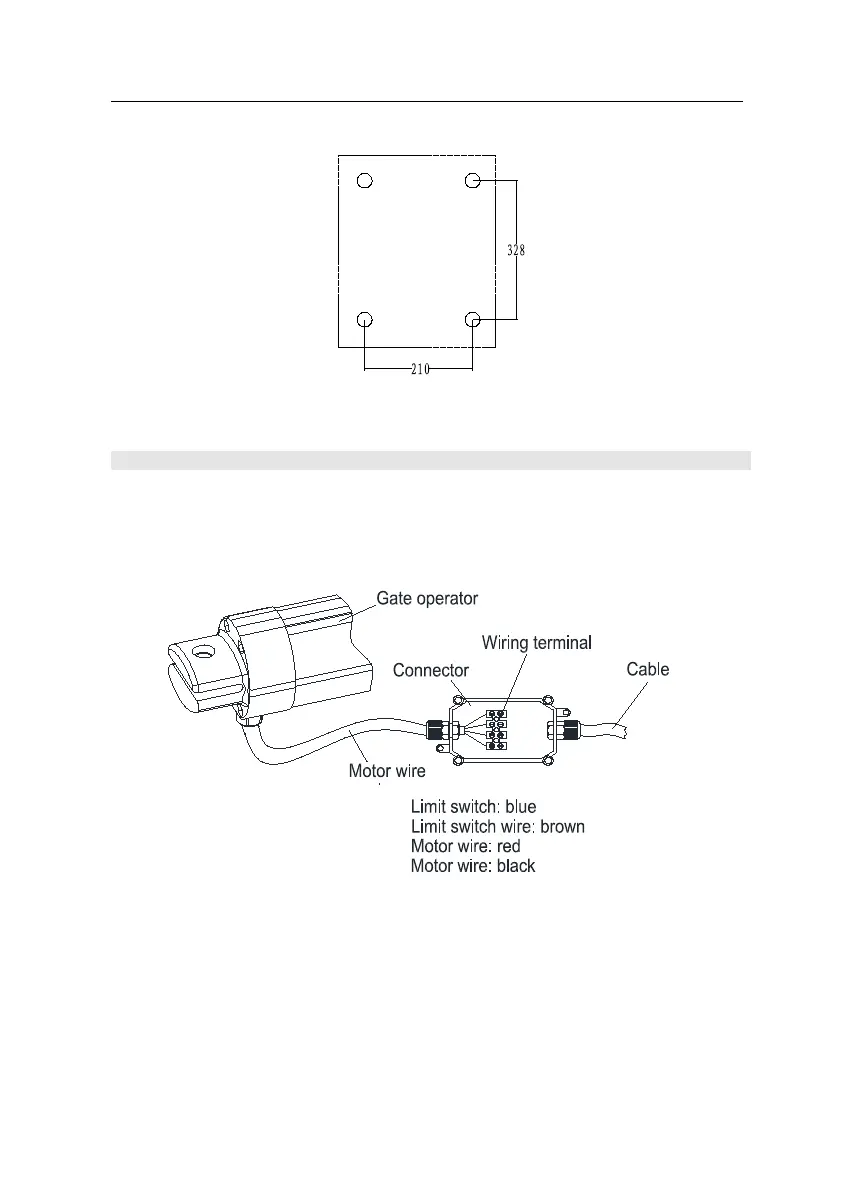

Fig.12
9. Electrical / Main Terminal Wiring
Connect the operator to the control box as shown in Fig.14.
Connect primary motor that on the primary gate (with electric lock) to MOTOR A, connect
the secondary gate to MOTOR B. (See Fig.14)
Fig.13
