ZK300DC SWING GATE OPERATOR USER’S MANUAL
6
 Use another cable for safety devices (such as electric lock, infrared photocell, flashing
light, external button switch etc.), electrical lock wire should be more than 1.5mm
2
,
and the other wires should be more than 0.5 mm
2
.

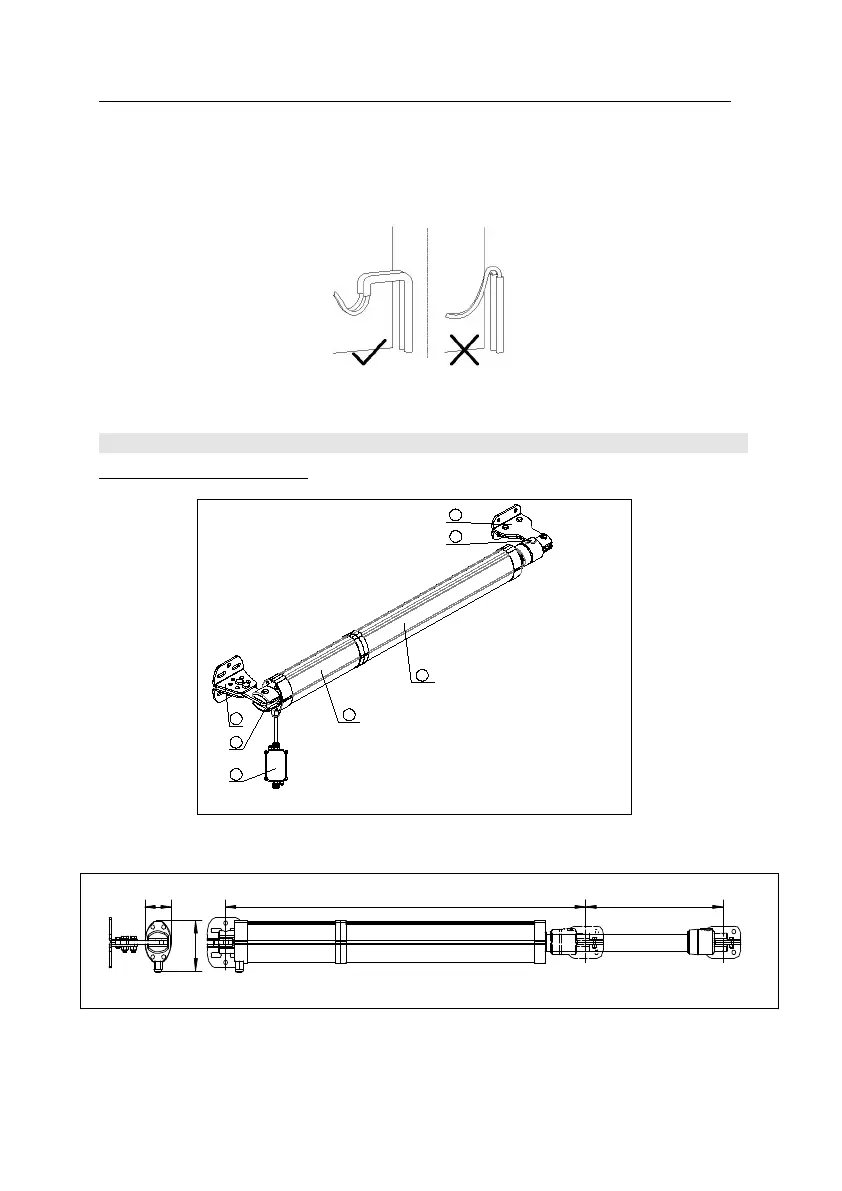

 To prevent rainwater from entering into the cable, arrange the cable as show in Fig.1.
Fig.1
7. Mechanical / Installation
Main structure and dimension
1
2
3
4
5
6
7
7、Gate bracket
6、Release nut
5、Lead screw
4、DC Motor
3、Post bracket
2、End joint
1、Connector
Fig.2
Fig.3
315840
1 00
60.5
