TDE MACNO BDF DIGITAL OPDE SD 22 - Page 39

MP01200E00 V_1.0
37

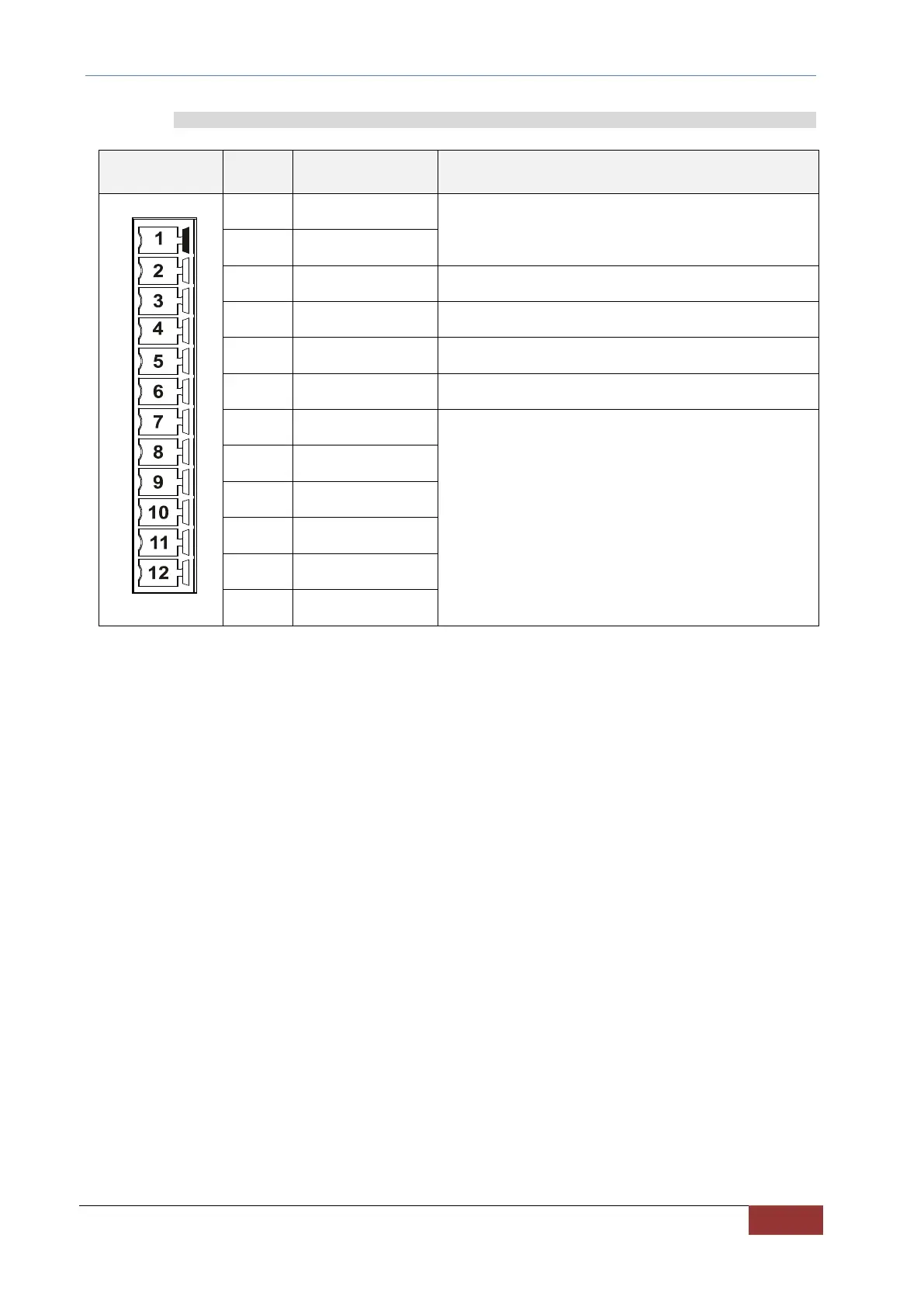

Management of the Resistor Thermal Sensor 7.2.5.4
M4 / X4
PIN
FUNCTION
DESCRIPTION
1
PTC Bimetallic
Resistor thermal probe input (PTC or NTC or KTY84).
2
/PTC Bimetallic
3
PE
4
N.C.
5
+Vcc
Vmax = 27Vdc
6
GND
7
CHANNEL /C
Connections for Simulated Encoder
(NOT MANAGED)
8
CHANNEL C
9
CHANNEL /B
10
CHANNEL B
11
CHANNEL /A
12
CHANNEL A
TAB. 18 – Management of the thermal sensor
