OUTPUT AND SUPPLY ARE NOT ISOLATED: THE INPUT GROUND HAS THE SAME VOLTAGE
POTENTIAL OF THE OUTPUT GROUND

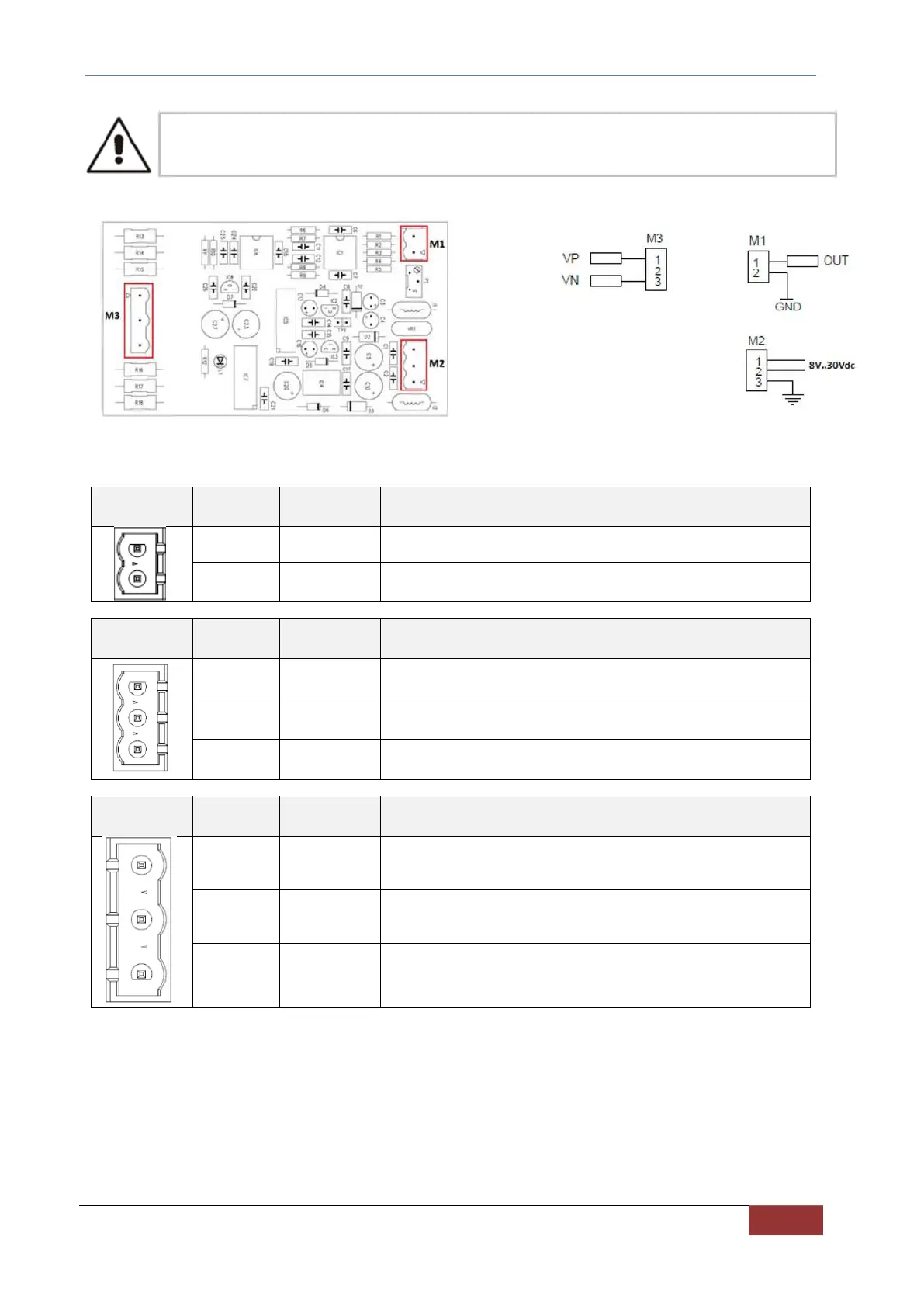

FIG. 20 – 4V0056 connections
M1
PIN
FUNCTION
DESCRIPTION
1
OUT
Output voltage -10..+10 Vdc (protected against short-circuit)
2
GND
Output voltage reference
M2
PIN
FUNCTION
DESCRIPTION
1
VIN
Power supply: +24V 5mA rated
Range 8..30Vdc (protected against reverse polarity)
2
GND
Negative of power supply
3
PE
Protection Earth
M3
PIN
FUNCTION
DESCRIPTION
1
VP
Positive high voltage input
2
n.c.
not connected
3
VN
Negative high voltage input
