7.4.2 PROFIBUS
The pin assignment of the optional card for PROFIBUS – CAN BUS communication is given here below.

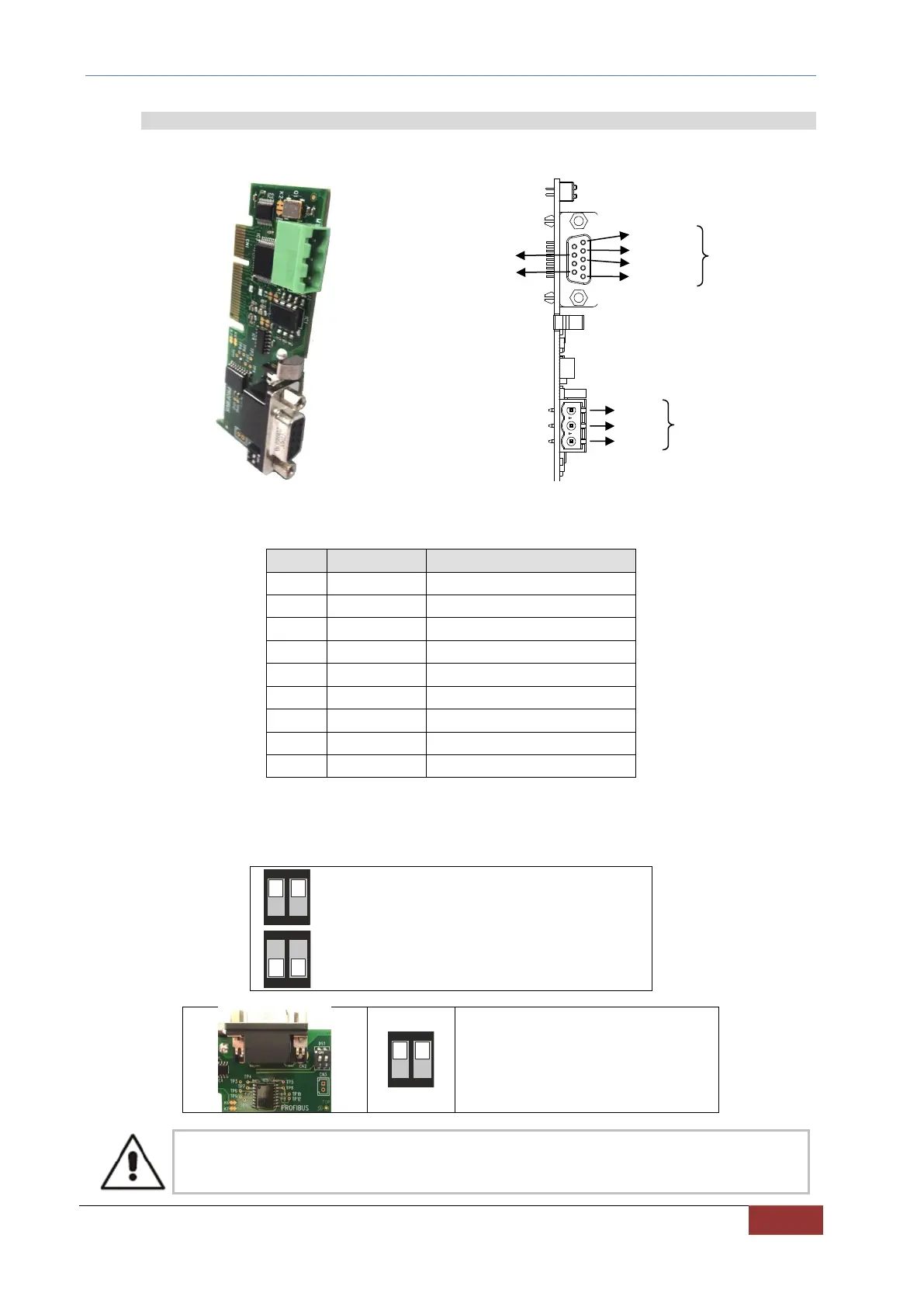

FIG. 22 – Profibus card
PIN n°
NAME
DESCRIPTION
1
Shield
Protective shield
2
-
-
3
A
Rx/Tx positive data
4
DE
Control signal for repeater
5
GNDISO
0V of +5V supply
6
+5VISO
Output supply +5V
7
-
-
8
B
Rx/Tx negative data
9
-
-
TAB. 20 – Profibus connections
On the card there is a double dip switch referred to as DS1 that, if closed, connects the signal CAN H and CAN L by
means of a 120 Ω resistor for the line termination.
 CAN H and CAN L terminated by 120 Ω
resistor
 CAN H and CAN L not terminated by resistor
Default setting: CAN H and CAN L
signals terminated on 120 Ω resistor.
ANY OPERATION MUST BE MADE ONLY WITH CONVERTER NOT POWERED.
ON
1
2
ON
1
2
ON
1
2
Code 274B000220VV
CAN H
CAN L
GND
5) GNDISO
4) DE
3) A
1) SHIELD
8) B
6) +5VISO
PROFIBUS
CAN BUS
