7.4.4 ANYBUS

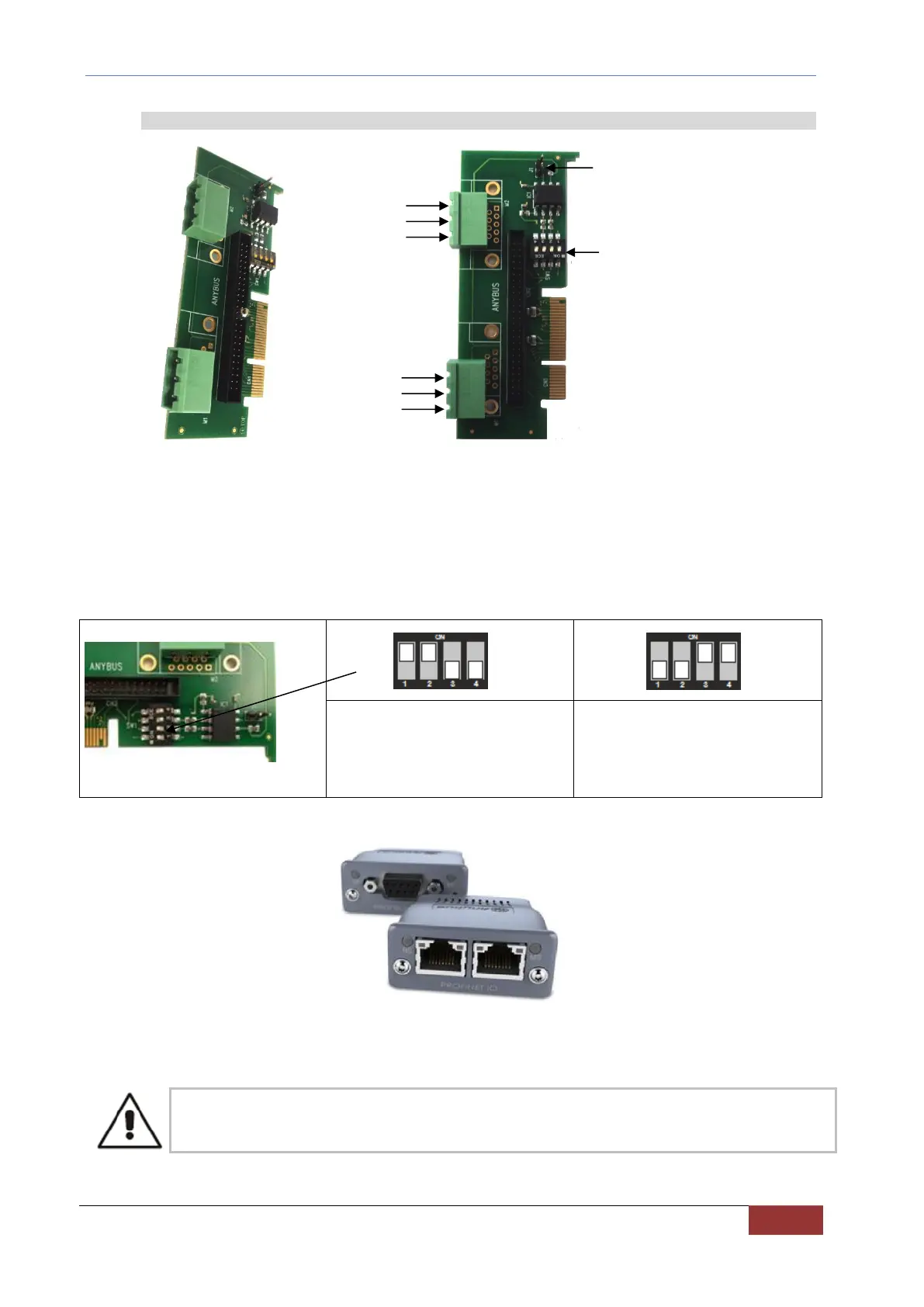

FIG. 26 – Anybus card
This board accommodates in slot3 of the drive, in addition to acting as an interface for ANYBUS communication, on
request, can provide two connectors for a CAN single channel output ( CAN A and CAN B).
The selection of CAN channel can make it through the SW1 dipswitch.
J1 jumper when closed, connects the CAN signal chosen, with a 120Ω resistance for termination of the line output.
Closed 1 and 2 dip (ON)
CAN A channel chosen (default).
Closed 3 and 4 dip (ON)
CAN B channel chosen.
FIG. 27 – Anybus example
ANY OPERATION MUST BE MADE ONLY WITH CONVERTER NOT POWERED.
Code 274B000000V
JUMPER J1
DIPSWITCH
SW1
CAN L
CAN H
GND
CAN L
CAN H
GND
ON
1
2 3 4
ON
1
2 3 4
ON
1
2 3 4
ON
1
2 3 4
ON
1
2 3 4
ON
1
2 3 4
ON
1
2 3 4
