TDK-Lambda CC15-xxxx-Sxx-E Series - Installation Method: PCB Trace Pattern Prohibitions

※Contact TDK-Lambda concerning items not mentioned or items which are not clear.
5-3 Installation Method
When installing the converter on the board, avoid having trace pattern, etc. in the slanted line area shown in Figure 5-3 because
there is the possibility of an insulation defect occurring.
CC15-xxxxxSx-E CC30-xxxxxSx-E
38.2
29.6
33.5
38.2
34.71.75
(1.75)
34.71.75
(1.75)
Out line
Out line

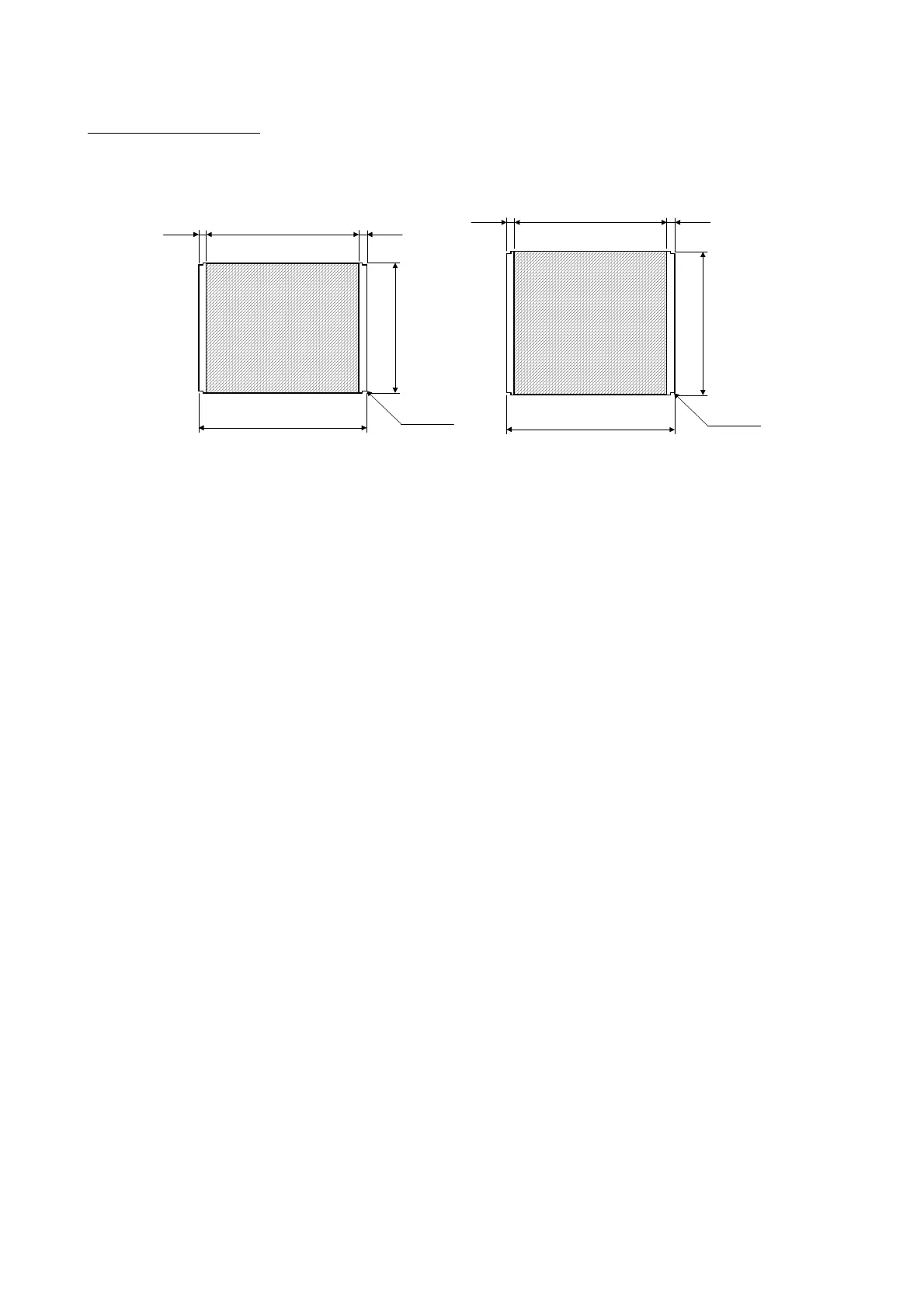

Fig. 5-2 Trace Pattern Prohibited Area
