TDK-Lambda CC15-xxxx-Sxx-E Series - Series Operation Configuration and Limitations

※Contact TDK-Lambda concerning items not mentioned or items which are not clear.
4-7 Series Operation
For this converter series, it is possible to operate models of the same type in series.
 The maximum number of converters which can be operated in series is 2.
 When using series operation, connect the +Vin terminal , -Vin terminal ,PO terminal and ALM terminal of each converter to
the same terminal of the other.
DC
Input
+Vin
-Vin
+Vout
-Vout
PO
RC
ALM
Fuse SW
Load
+Vin
-Vin
+Vout
-Vout
PO
RC
ALM
Fuse
LED

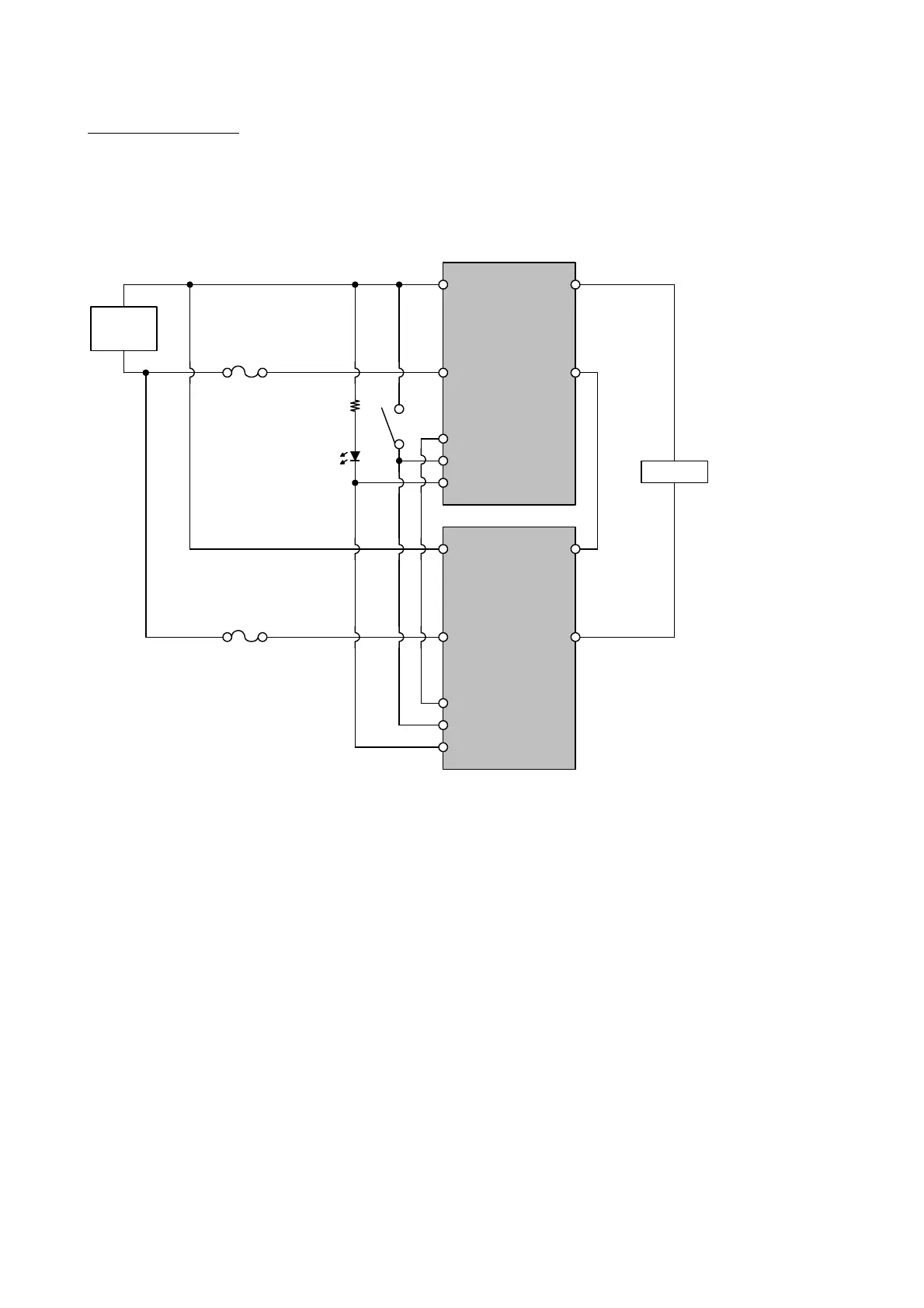

Fig. 4-7 Example Series Operation Connection
