5.3 REMOTE PROGRAMMING VIA RS232
5.3.1 Introduction
5.3.2 Rear panel connectors pinout
IN
RXD
+
RXD
+
TXD
+
TXD
+
RXD
_
RXD
_
TXD
_
TXD
_
Not used
Shield (connector enclosure)
Not used
RX (RS232)
NC
NC
SG
TX(RS232)
SG
OUT
RS232
10m max.
1000m max.
RS485
RS485

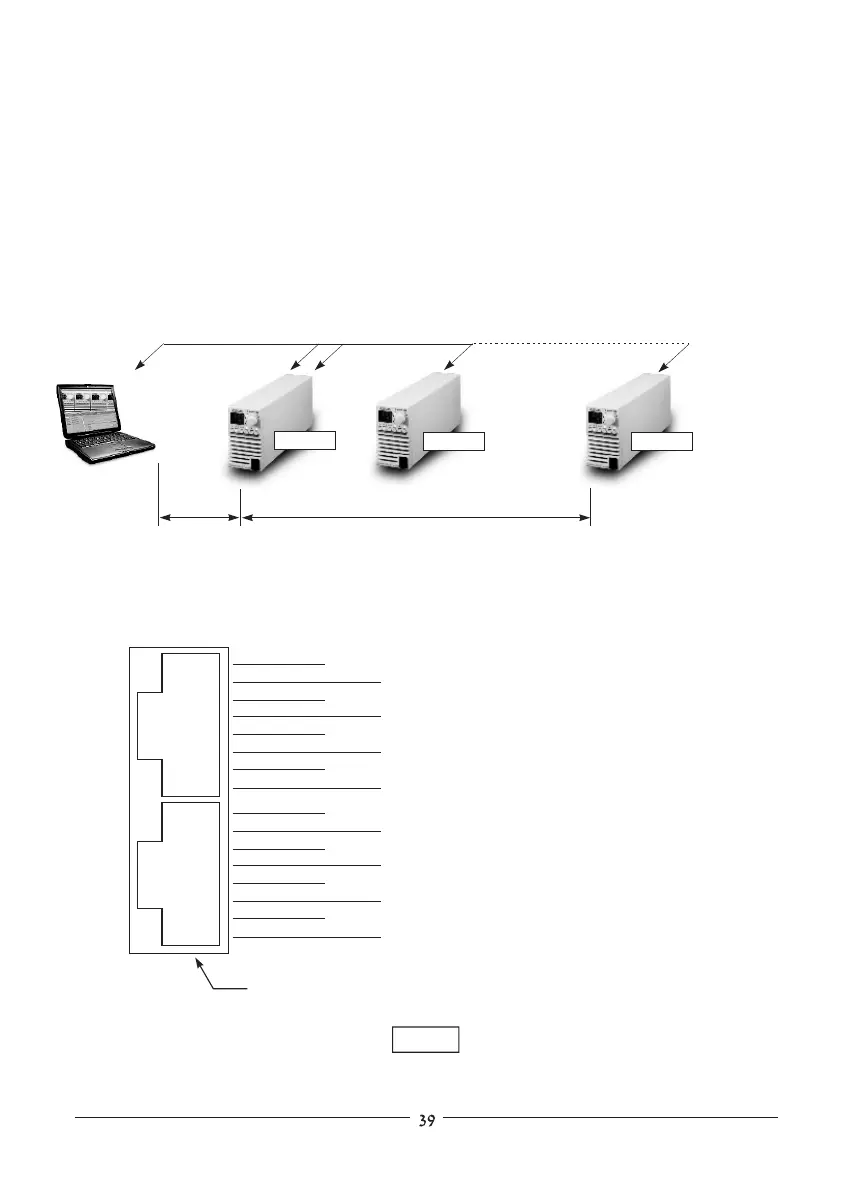

Fig. 5-1: Linking ZUP units with RS232 control.
The RS232 interface is accessible through the rear panel IN/OUT jacks. The jacks are8contacts each
and conform to EIA/TIA-568A requirements. The IN and OUT jacks are used to connect the unitsina
RS232 or RS458 chain toacontroller. The data format is ASCII,8bits/character no parity bit, one stop bit.
The baud rate can be selected to one of the6possible rates between 300 and 9600bps (refer to
par.5.2.3).Rrefer to par.5.6 for detailed explanation.
Up to 31 ZUP units can be connected to the RS232 control as shown in Fig.5-1.
Fig. 5-2:
Rear panel connector pinout
(ZUP rear panel view)
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
NOTE
Tx and Rx are used for RS232 communication. Txd +/- and Rxd +/- are used for RS485
communication. Refer to RS232 and RS485 cables description for connection details.
ZUP (1)
ZUP (2)
ZUP (31)
