Connecting Pads and Pedals
Setup
Caution!
To prevent electric shock and damage to the device, make sure the power is switched OFF on
the drum and all related device before making any connection.
Using the provided cables, the cable received by marking the corresponding drum pads, cymbal pads and
pedals. (See the below illustration for reference)
Note:
1. The voice of hi-hat pad hitting is controlled by hi-hat pedal. Similar to a real drum kit, the hi-hat pad functions
as an 'open hi-hat' when the pedal is released. When the pedal is stepped, it functions as a 'closed hi-hat'.
2. The valid striking area of cymbal pad (ride, crash or hi-hat) is near the edge of the pad, which is different from
other pads.

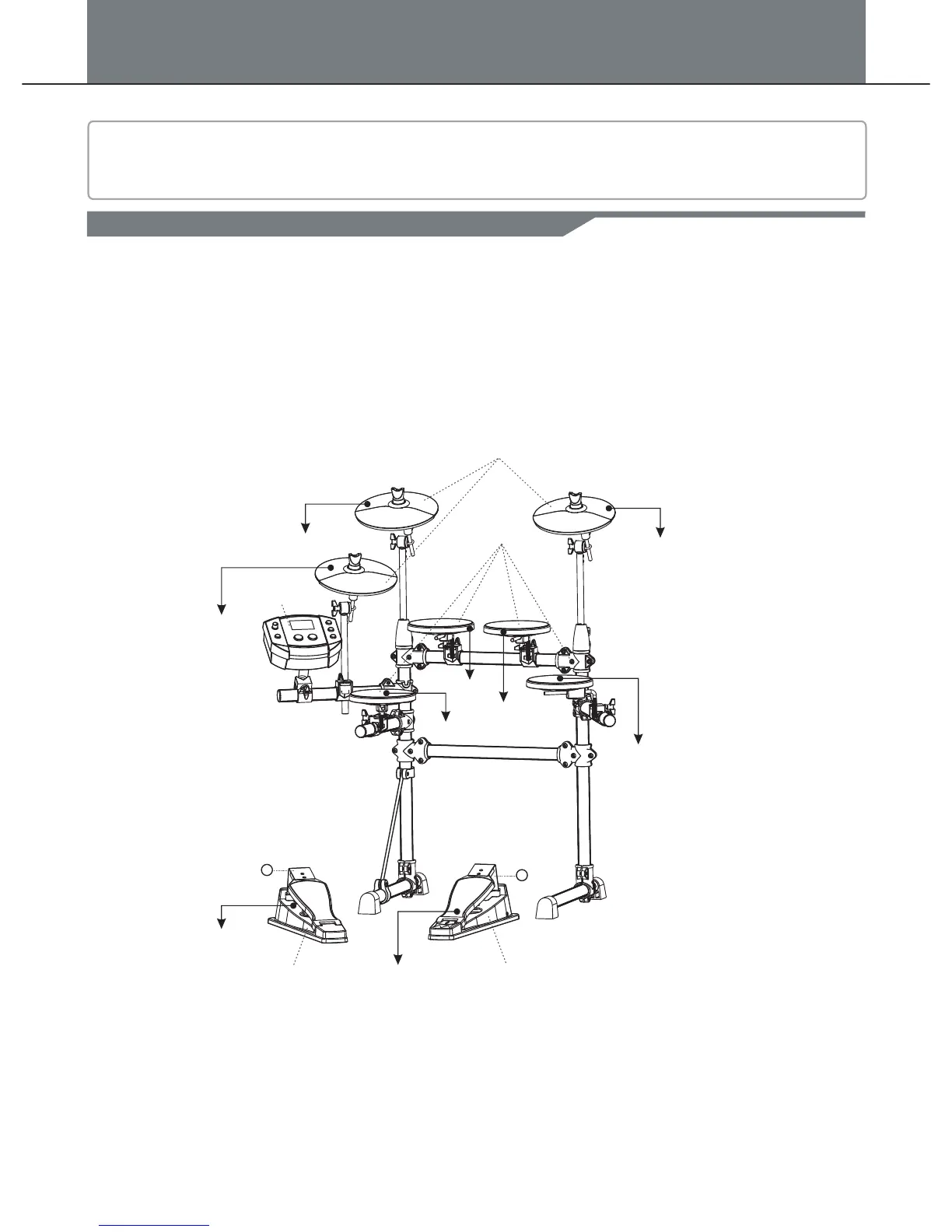

Drum Pad
Cymbal Pad
Drum Module
Bass drum pedal PedalHi-Hat
To
control
Hi-Hat
To Kick
Hi-HatTo
Tom 2To
Tom 3To
SnareTo
Tom 1To
2
1
To Crash
RideTo
