Example 1
Parameter
Setting
FAN OPERATION, HEAT MODE FAN OFF
FAN PWM % MAXIMUM OUTPUT 100 %
FAN PWM % MINIMUM OUTPUT 50 %
INCREASE FAN SPEED STARTING AT 70 %
Example 2
Parameter
Setting
FAN OPERATION, HEAT MODE FAN OFF
FAN PWM % MAXIMUM OUTPUT 100 %
FAN PWM % MINIMUM OUTPUT 0 %
INCREASE FAN SPEED STARTING AT 0 %

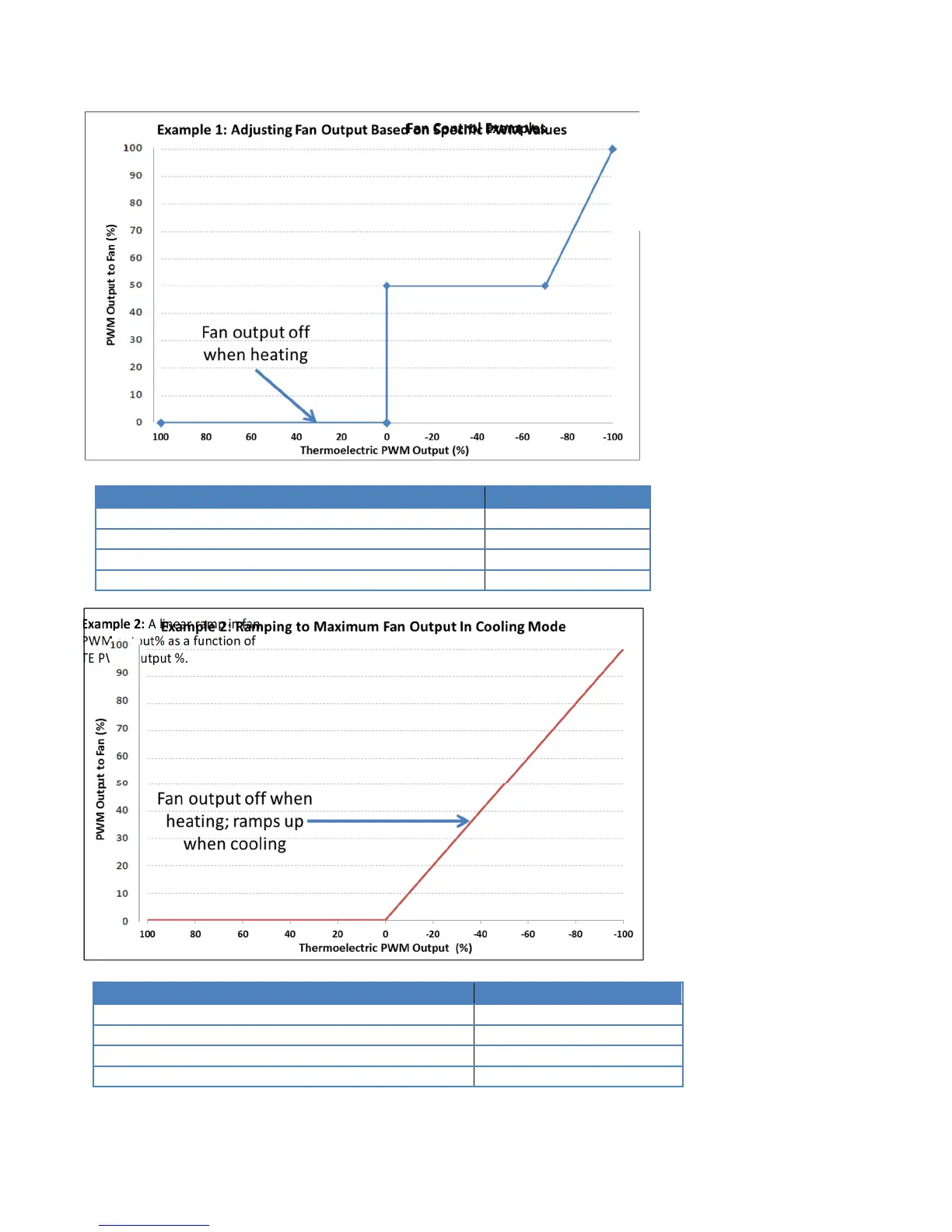

Fan Control Examples
Example 2: A linear ramp in fan
PWM output% as a function of
TE PWM output %.
Example 1: Adjusting fan
output based on TE PWM
output value.
