FAN OPERATION, HEAT MODE FAN OFF
FAN PWM % MAXIMUM OUTPUT 100 %
FAN PWM % MINIMUM OUTPUT 100 %
INCREASE FAN SPEED STARTING AT 0 %
FAN OPERATION, HEAT MODE FAN OFF
FAN PWM % MAXIMUM OUTPUT 100 %
FAN PWM % MINIMUM OUTPUT 50 %
INCREASE FAN SPEED STARTING AT 70 %

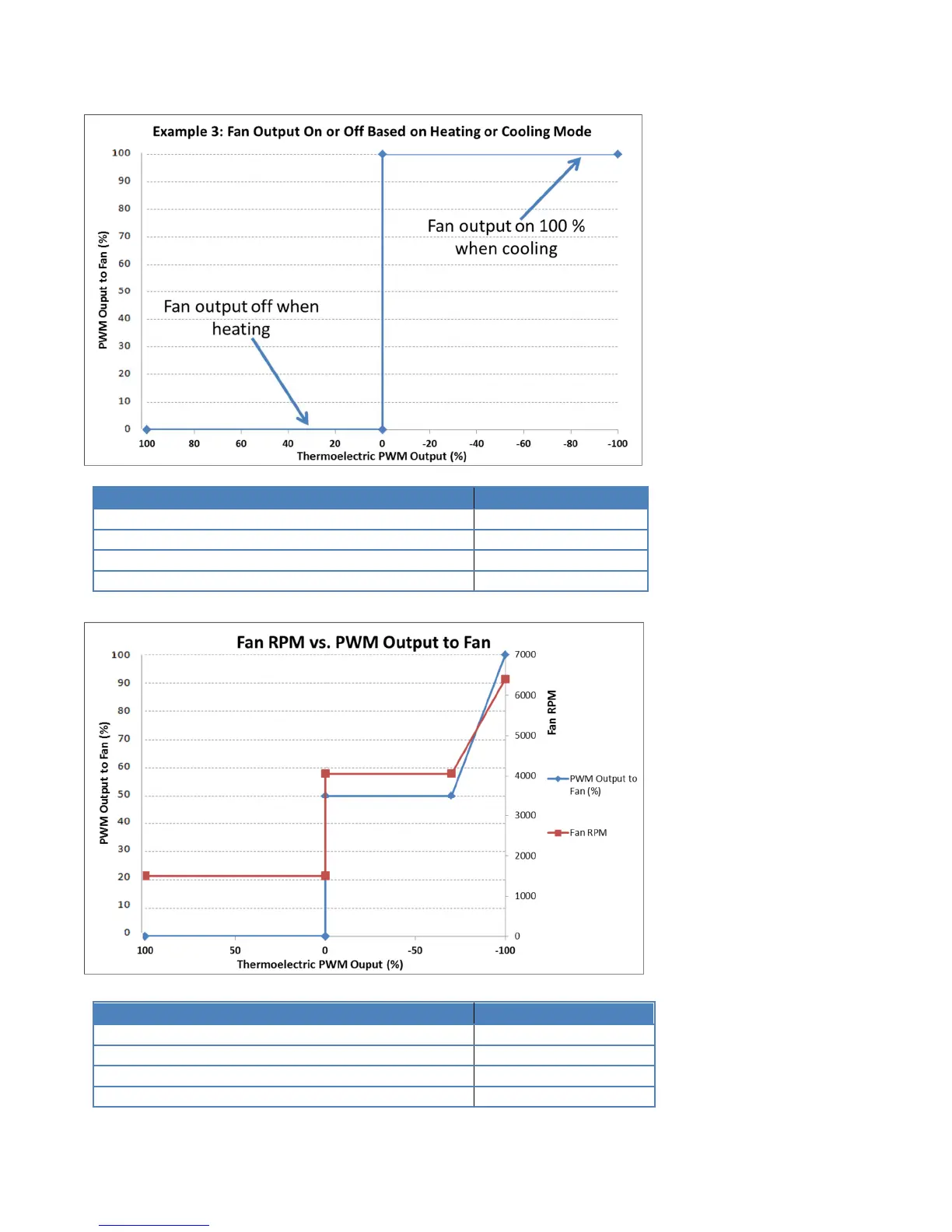

Example 3: This is the only fan
control configuration acceptable
for use with a 2 wire, non-speed
controllable fan; the fan is either
completely on or completely off.
Example 4: Fan speed (RPM)
changes will vary depending on
fan model. This fan, as with
many other fans, will still run at
a minimum RPM above zero
even when the fan output is off.
