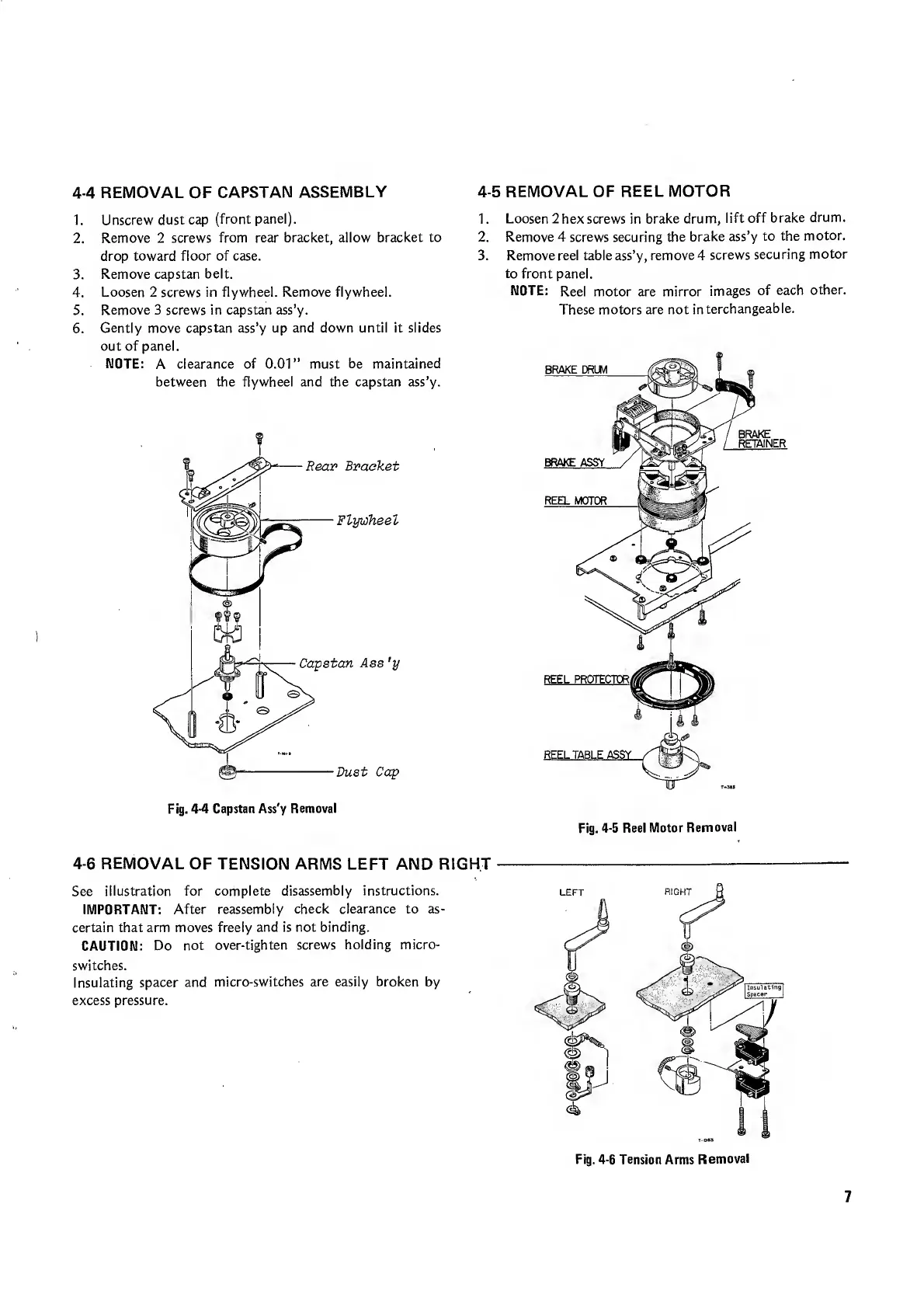

4-4 REMOVAL OF CAPSTAN ASSEMBLY
4-5 REMOVAL OF REEL MOTOR
1. Unscrew dust cap (front panel).
2. Remove 2 screws from rear bracket, allow bracket to
drop toward floor of case.
3. Remove capstan belt.
4. Loosen 2 screws in flywheel. Remove flywheel.
5. Remove 3 screws in capstan ass’y.
6. Gently move capstan ass’y up and down until it slides
out of panel.
NOTE: A clearance of 0.01” must be maintained
between the flywheel and the capstan ass’y.
1. Loosen 2 hex screws in brake drum, lift off brake drum.
2. Remove 4 screws securing the brake ass’y to the motor.
3. Remove reel table ass’y, remove 4 screws securing motor
to front panel.
NOTE: Reel motor are mirror images of each other.
These motors are not interchangeable.
Fig. 4-5 Reel Motor Removal
4-6 REMOVAL OF TENSION ARMS LEFT AND RIGHT
See illustration for complete disassembly instructions.
IMPORTANT: After reassembly check clearance to as¬
certain that arm moves freely and is not binding.
CAUTION: Do not over-tighten screws holding micro¬
switches.
Insulating spacer and micro-switches are easily broken by
excess pressure.
Fig. 4-6 Tension Arms Removal
7
