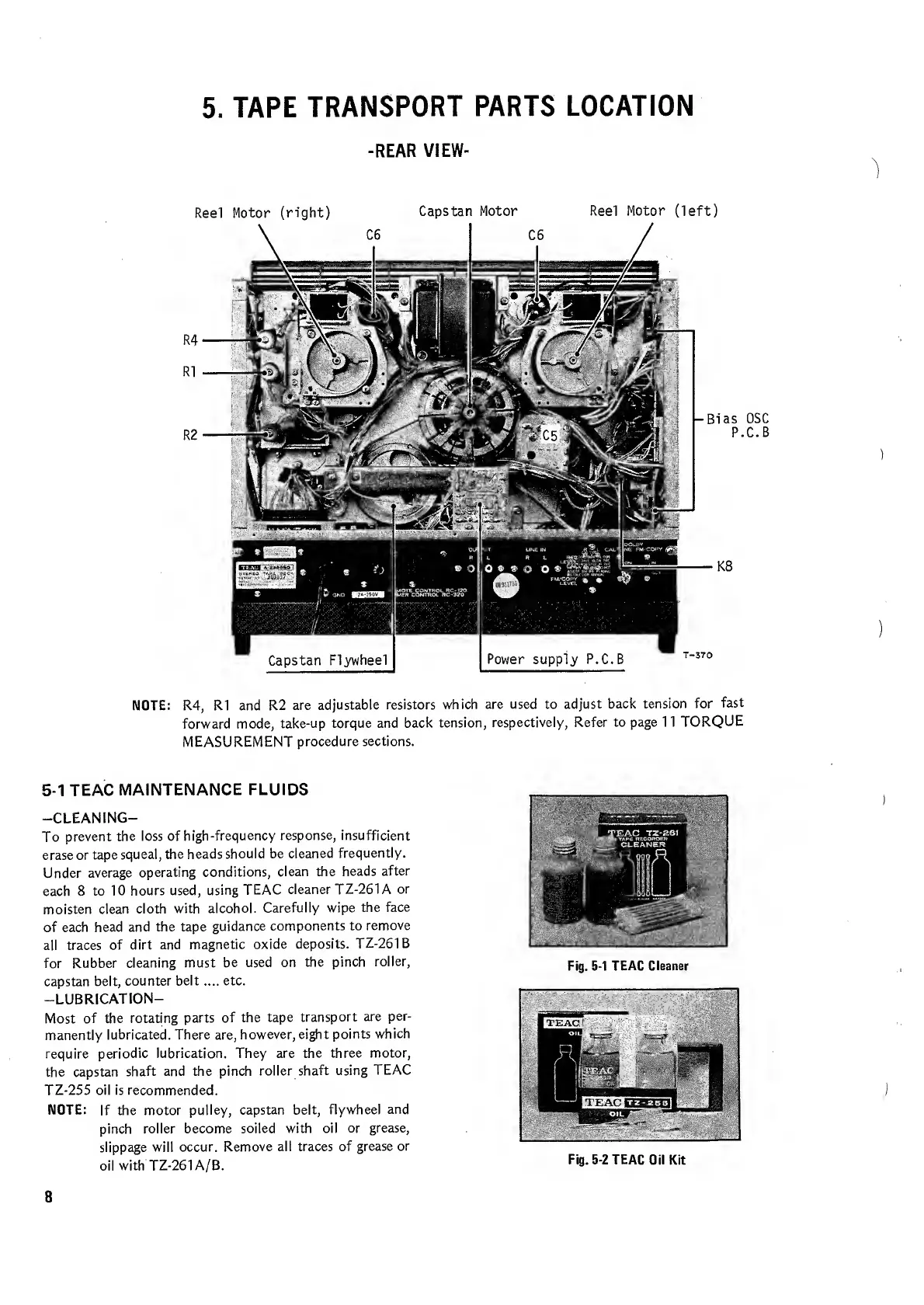

5. TAPE TRANSPORT PARTS LOCATION
-REAR VIEW-
Reel Motor (right) Capstan Motor Reel Motor (left)
NOTE: R4, R1 and R2 are adjustable resistors which are used to adjust back tension for fast
forward mode, take-up torque and back tension, respectively, Refer to page 11 TORQUE
MEASUREMENT procedure sections.
5-1 TEAC MAINTENANCE FLUIDS
-CLEANING-
To prevent the loss of high-frequency response, insufficient
erase or tape squeal, the heads should be cleaned frequently.
Under average operating conditions, clean the heads after
each 8 to 10 hours used, using TEAC cleaner TZ-261A or
moisten clean cloth with alcohol. Carefully wipe the face
of each head and the tape guidance components to remove
all traces of dirt and magnetic oxide deposits. TZ-261B
for Rubber cleaning must be used on the pinch roller,
capstan belt, counter belt.... etc.
-LUBRICATION-
Most of the rotating parts of the tape transport are per¬
manently lubricated. There are, however, eight points which
require periodic lubrication. They are the three motor,
the capstan shaft and the pinch roller shaft using TEAC
TZ-255 oil is recommended.
NOTE: If the motor pulley, capstan belt, flywheel and
pinch roller become soiled with oil or grease,
slippage will occur. Remove all traces of grease or
oil with TZ-261A/B.
Fig. 5-1 TEAC Cleaner
Fig. 5-2 TEAC Oil Kit
8
