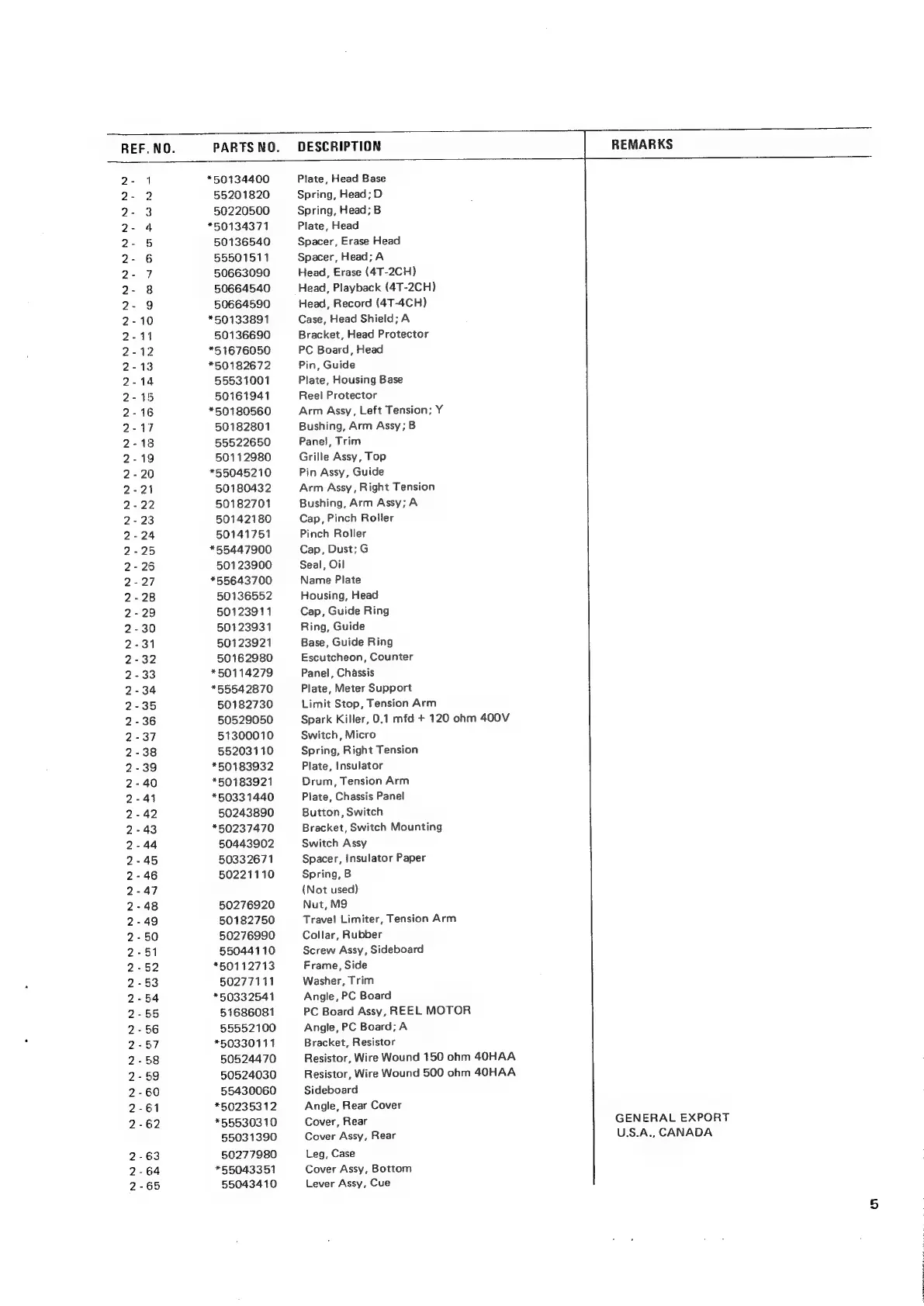

Teac A-2300SR - Page 28

REF.
NO.
PARTSNO.
DESCRIPTION
REMARKS
2- 1 *50134400 Plate, Head Base
2- 2 55201820 Spring, Head; D
2- 3 50220500 Spring, Head; B
2- 4 *50134371 Plate, Head
2- 5 50136540 Spacer, Erase Head
2- 6 55501511 Spacer, Head; A
2- 7 50663090 Head, Erase (4T-2CH)
2- 8 50664540 Head, Playback (4T-2CH)
2-9 50664590 Head, Record (4T-4CH)
2-10 *50133891 Case, Head Shield; A
2-11 50136690 Bracket, Head Protector
2-12 *51676050 PC Board, Head
2-13 *50182672 Pin, Guide
2-14 55531001 Plate, Housing Base
2-15 50161941 Reel Protector
2-16
*50180560
Arm
Assy,
Left
Tension;
Y
2-17 50182801 Bushing, Arm Assy; B
2-18 55522650 Panel, Trim
2-19 50112980 Grille Assy, Top
2-20 *55045210 Pin Assy, Guide
2-21
50180432
Arm
Assy,
Right
Tension
2-22
50182701
Bushing,
Arm
Assy;
A
2-23
50142180
Cap,
Pinch
Roller
2-24 50141751 Pinch Roller
2-25 *55447900 Cap, Dust; G
2-265 50123900 Seal, Oil
2-27 *55643700 Name Plate
2-28 50136552 Housing, Head
2-29 50123911 Cap, Guide Ring
2-30 50123931 Ring, Guide
2-31 50123921 Base, Guide Ring
2-32
50162980
Escutcheon,
Counter
2 - 33 *50114279 Panel, Chassis
2-34 *55542870 Plate, Meter Support
2-35
50182730
Limit
Stop,
Tension
Arm
2-36
50529050
Spark
Killer,
0.1
mfd
+
120
ohm
400V
2-37 51300010 Switch, Micro
2-38
55203110
Spring,
Right
Tension
2-39 *50183932 Plate, Insulator
2-40
*50183921
Drum,
Tension
Arm
2-41 *50331440 Plate, Chassis Panel
2-42 50243890 Button, Switch
2-43
*50237470
Bracket,
Switch
Mounting
2-44 50443902 Switch Assy
2-45
50332671
Spacer,
Insulator
Paper
2-46 50221110 Spring, B
2-47 (Not used)
2-48 50276920 Nut, M9
2-49
50182750
Travel
Limiter,
Tension
Arm
2-50
50276990
Collar,
Rubber
2-51
55044110
Screw
Assy,
Sideboard
2-52 *50112713 Frame, Side
2-53 50277111 Washer, Trim
2-54
*50332541
Angle,
PC
Board
2-55
51686081
PC
Board
Assy,
REEL
MOTOR
2-56
55552100
Angle,
PC
Board;
A
2-67
*50330111
Bracket,
Resistor
2-58
50524470
Resistor,
Wire
Wound
150
ohm
40HAA
2-59
50524030
Resistor,
Wire
Wound
500
ohm
40HAA
2-60
55430060
Sideboard
2-61
*60235312
Angle,
Rear
Cover
2-62
*55530310
Cover,
Rear
GENERAL
EXPORT
55031390
Cover
Assy,
Rear
U.S.A.,
CANADA
2-63
50277980
Leg,
Case
2-64
*55043351
Cover
Assy,
Bottom
2-65
55043410
Lever
Assy,
Cue
