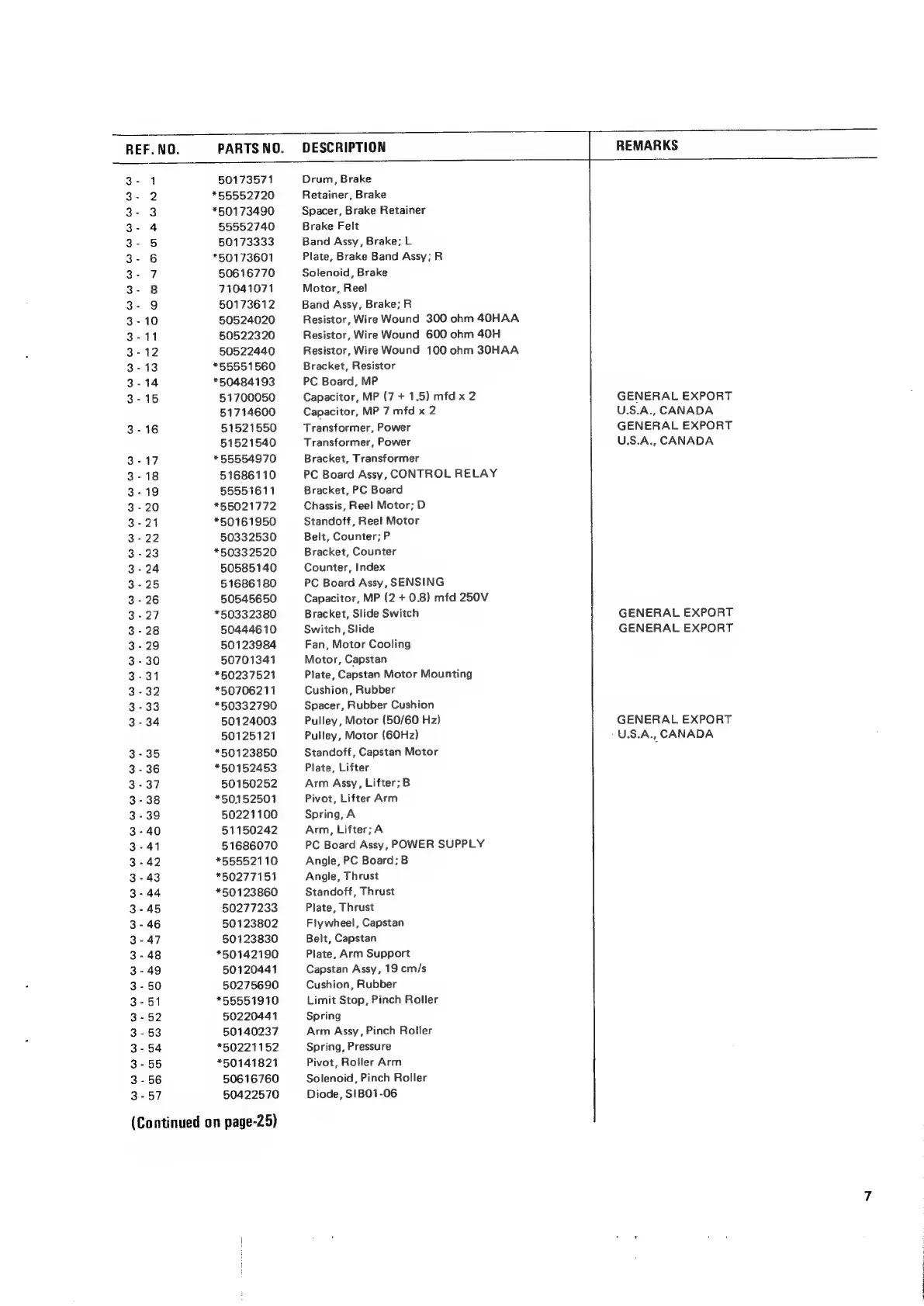

Teac A-2300SR - Page 30

REF.
NO.
PARTSNO.
DESCRIPTION
REMARKS
3-1 50173571 Drum, Brake
3- 2 *55552720 Retainer, Brake
3- 3 *50173490 Spacer, Brake Retainer
3- 4 55552740 Brake Felt
3- 5 50173333 Band Assy, Brake; L
3- 6 *50173601 Plate, Brake Band Assy; R
3- 7 50616770 Solenoid, Brake
3- 8 71041071 Motor, Reel
3-9 50173612 Band Assy, Brake; R
3-10
50524020
Resistor,
Wire
Wound
300
ohm
40HAA
3-11
50522320
Resistor,
Wire
Wound
600
ohm
40H
3-12 50522440 Resistor, Wire Wound 100 ohm 30HAA
3-13 *55551560 Bracket, Resistor
3-14 *50484193 PC Board, MP
3-15
51700050
Capacitor,
MP
(7
+
1.5)
mfd
x
2
GENERAL
EXPORT
51714600
Capacitor,
MP
7
mfd
x
2
U.S.A.,
CANADA
3-16
51521550
Transformer,
Power
GENERAL
EXPORT
51521540
Transformer,
Power
U.S.A.,
CANADA
3-17 *55554970 Bracket, Transformer
3-18
51686110
PC
Board
Assy,
CONTROL
RELAY
3-19 55551611 Bracket, PC Board
3-20 *55021772 Chassis, Reel Motor; D
3-21 *50161950 Standoff, Reel Motor
3-22 50332530 Belt, Counter; P
3-23 *50332520 Bracket, Counter
3-24 50585140 Counter, Index
3-25 51686180 PC Board Assy, SENSING
3-26
50545650
Capacitor,
MP
(2
+
0.8)
mfd
250V
3-27
*50332380
Bracket,
Slide
Switch
GENERAL
EXPORT
3-28
50444610
Switch,
Slide
GENERAL
EXPORT
3-29 50123984 Fan, Motor Cooling
3-30 50701341 Motor, Capstan
3-31 *50237521 Plate, Capstan Motor Mounting
3-32 *50706211 Cushion, Rubber
3-33 *50332790 Spacer, Rubber Cushion
3-34
50124003
Pulley,
Motor
(50/60
Hz)
GENERAL
EXPORT
50125121
Pulley,
Motor
(60Hz)
U.S.A.,
CANADA
3-35
*50123850
Standoff,
Capstan
Motor
:
3-36 *50152453 Plate, Lifter
3-37 50150252 Arm Assy, Lifter; B
3-38 *50152501 Pivot, Lifter Arm
3-39 50221100 Spring, A
3-40 51150242 Arm, Lifter; A
3-41 51686070 PC Board Assy, POWER SUPPLY
3-42 *55552110 Angle, PC Board; B
3-43 *50277151 Angle, Thrust
3-44 *50123860 Standoff, Thrust
3-45 50277233 Plate, Thrust
3-46 50123802 Fiywheel, Capstan
3-47 50123830 Belt, Capstan
3-48 *50142190 Plate, Arm Support
3-49 50120441 Capstan Assy, 19 cm/s
3-50 50275690 Cushion, Rubber
3-51 *55551910 Limit Stop, Pinch Roller
3-52 50220441 Spring
3-53 50140237 Arm Assy, Pinch Roller
3-54 *50221152 Spring, Pressure
3-55 *50141821 Pivot, Roller Arm
3-56 50616760 Solenoid, Pinch Roller
3-57 50422570 Diode, SIBO1-06
(Continued on page-25)
