Teac A-2300SR - PC Board Section Parts Lists; EQ, MIC AMPL. PC Board Parts; LINE, PHONE AMPL. PC Board Parts

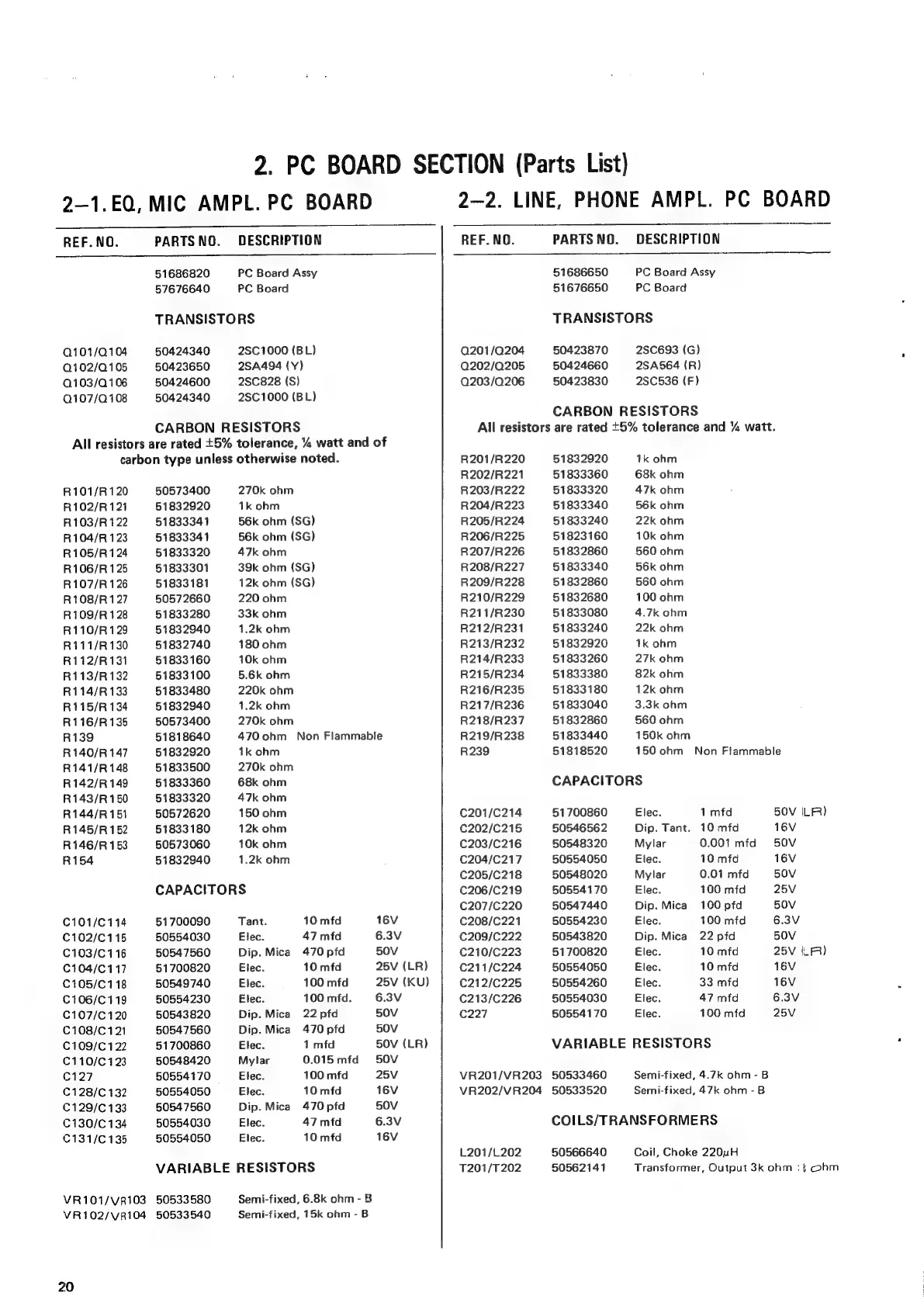

2. PC BOARD SECTION (Parts List)
2—1.E0,
MIC
AMPL.
PC
BOARD
2—2.
LINE,
PHONE
AMPL.
PC
BOARD
REF.
NO.
PARTS
NO.
DESCRIPTION
REF.
NO.
PARTS
NO.
DESCRIPTION
51686820
PC Board
Assy
51686650
PC Board
Assy
57676640
PC
Board
51676650
PC Board
TRANSISTORS
TRANSISTORS
Q101/0104
50424340
2SC1000
(BL)
Q201/0204
50423870
2SC693
(G)
2102/0105
50423650
2SA494
(Y)
Q202/Q205
50424660
2SA564
(R)
Q103/Q106
50424600
2SC828
(S)
Q203/Q206
50423830
2SC536
(F)
Q107/Q108 50424340 2SC1000 (BL)
CARBON RESISTORS
CARBON RESISTORS All resistors are rated +5% tolerance and % watt.
All resistors are rated +5% tolerance, % watt and of
carbon type unless otherwise noted. R201/R220 51832920 1k ohm
R202/R221 51833360 68k ohm
R101/R120 50573400 270k ohm R203/R222 51833320 47k ohm
R102/R121 51832920 1k ohm R204/R223 51833340 56k ohm
R103/R122 51833341 56k ohm (SG) R205/R224 51833240 22k ohm
R104/R 123 51833341 56k ohm (SG) R206/R225 51823160 10k ohm
R105/R124 51833320 47k ohm R207/R226 51832860 560 ohm
R106/R125 51833301 39k ohm (SG) R208/R227 51833340 56k ohm
R107/R126 51833181 12k ohm (SG) R209/R228 51832860 560 ohm
R108/R 127 50572660 220 ohm R210/R229 51832680 100 ohm
R109/R 128 51833280 33k ohm R211/R230 51833080 4.7k ohm
R110/R129 51832940 1.2k ohm R212/R231 51833240 22k ohm
R111/R130 51832740 180 ohm R213/R232 51832920 1k ohm
R112/R131 51833160 10k ohm R214/R233 51833260 27k ohm
R113/R132 51833100 5.6k ohm R215/R234 51833380 82k ohm
R114/R133 51833480 220k ohm R216/R235 51833180 12k ohm
R115/R134 51832940 1.2k ohm R217/R236 51833040 3.3k ohm
R116/R135 50573400 270k ohm R218/R237 51832860 560 ohm
R139 51818640 470 ohm Non Flammabie R219/R238 51833440 150k ohm
R140/R 147 51832920 1k ohm R239 51818520 150 ohm Non Flammable
R141/R148 51833500 270k ohm
R142/R 149 51833360 68k ohm CAPACITORS
R143/R150 51833320 47k ohm
R144/R151 50572620 150 ohm C201/C214 51700860 Elec. 1 mfd 50V ILR)
R145/R152 51833180 12k ohm C202/C215 50546562 Dip. Tant. 10 mfd 16V
R146/R 153 50573060 10k ohm C203/C216 50548320 Mylar 0.001 mfd 50V
R154 51832940 1.2k ohm C204/C217 50554050 Elec. 10 mfd 16V
C205/C218 50548020 Mylar 0.01 mfd 50V
CAPACITORS C206/C219 50554170 Elec. 100 mtd 25V
C207/C220 50547440 Dip. Mica 100 pfd 50V
0101/0114 51700090 Tant. 10 mfd 16V C208/C221 50554230 Elec. 100 mfd 6.3V
C102/C115 50554030 Elec. 47 mfd 6.3V €209/C222 50543820 Dip. Mica 22 pfd 50V
C103/C116 50547560 Dip. Mica 470 pfd 50V C€210/C223 51700820 Elec. 10 mfd 25V (LR)
C104/C117 51700820 Elec. 10 mfd 25V (LR) €211/C224 50554050 Elec. 10 mfd 16V
C€105/C118 50549740 Elec. 100 mfd 25V (KU) C€212/C225 50554260 Elec. 33 mfd 16V
C106/C119 50554230 Elec. 100 mfd. 6.3V C213/C226 50554030 Elec. 47 mtd 6.3V
C107/C120
50543820
Dip.
Mica
22
pfd
50V
C227
50554170
Elec.
100
mfd
25V
C108/C121 50547560 Dip. Mica 470 pfd 50V
C109/C122 51700860 Elec. 1 mfd 50v (LR) VARIABLE RESISTORS
C110/C123 50548420 Mylar 0.015 mfd 50V
C127 50554170 © Elec. 100 mfd 25V VR201/VR203 50533460 Semi-fixed, 4.7k ohm-B
C128/C 132 50554050 Elec. 10 mfd 16V VR202/VR204 50533520 Semi-fixed, 47k ohm - B
C129/C 133 50547560 Dip. Mica 470 pfd 50V
C130/C134 50554030 Elec. 47 mfd 6.3V COILS/TRANSFORMERS
C131/C135 50554050 Elec. 10 mfd 16V
L201/L202 50566640 Coil, Choke 220uH
VARIABLE RESISTORS T201/T202 50562141 Transformer, Output 3k ohm :} @hm
VR101/VR103 50533580 Semi-fixed, 6.8k ohm - B
VR102/VR104 50533540 Semi-fixed, 15k ohm - B
20
