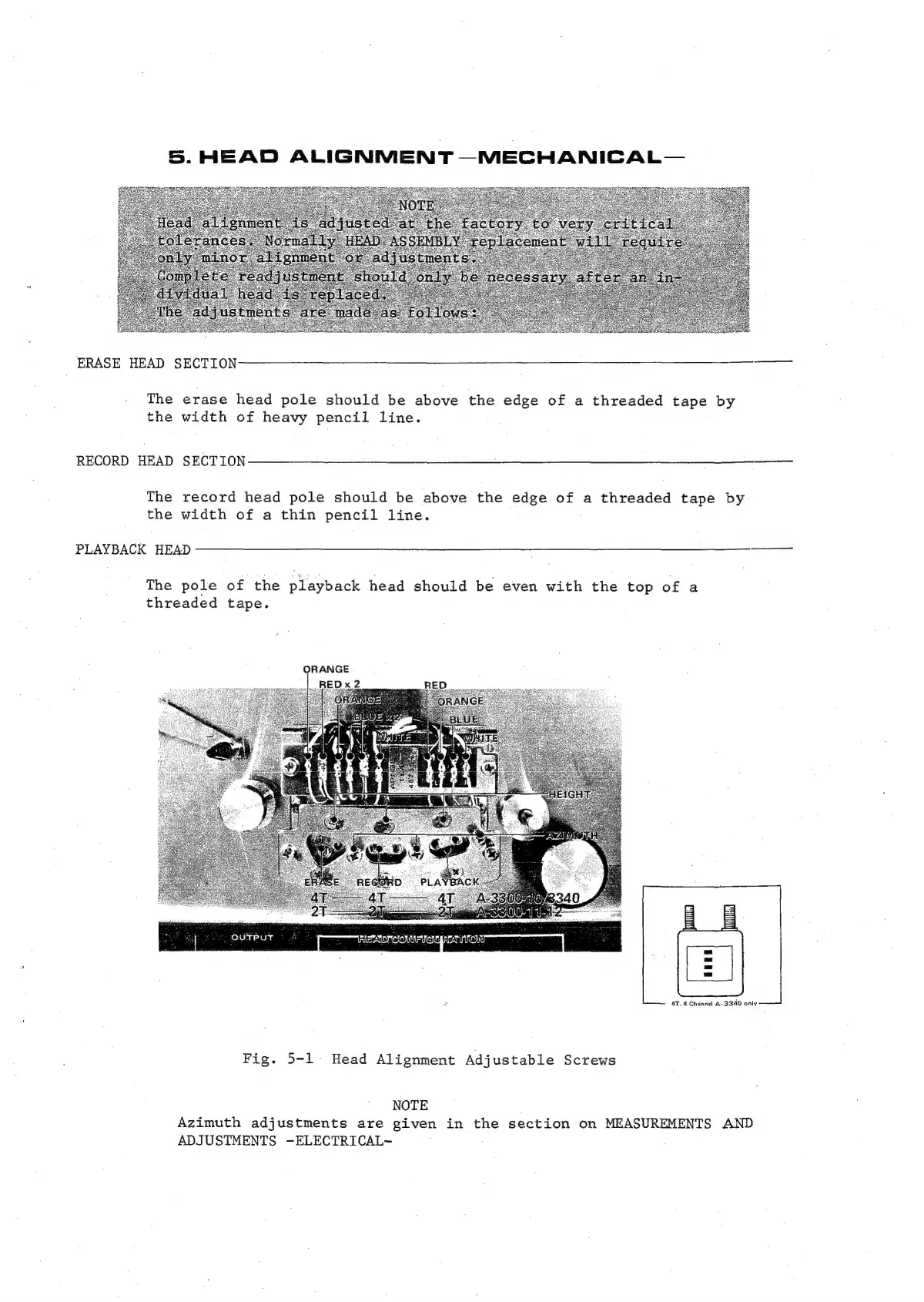

5.HEAD
ALIGNMENT
—MECHANICAL—
ERASE
HEAD
SECTION
The
erase
head
pole
should
be
above
the
edge
of
a
threaded
tape
by
the
width
of
heavy
pencil
line.
RECORD
HEAD
SECTION
The
record
head
pole
should
be
above
the
edge
of
a
threaded
tape
by
the
width
of
a
thin
pencil
line.
PLAYBACK
HEAD
The
pole
of
the
playback
head
should
be
even
with
the
top
of
a
threaded
tape.
ORANGE
47.
4
Channel
A-3340
only
Fig.
5-1
Head
Alignment
Adjustable
Screws
NOTE
Azimuth
adjustments
are
given
in
the
section
on
MEASUREMENTS
AND
ADJUSTMENTS
—ELECTRICAL~
