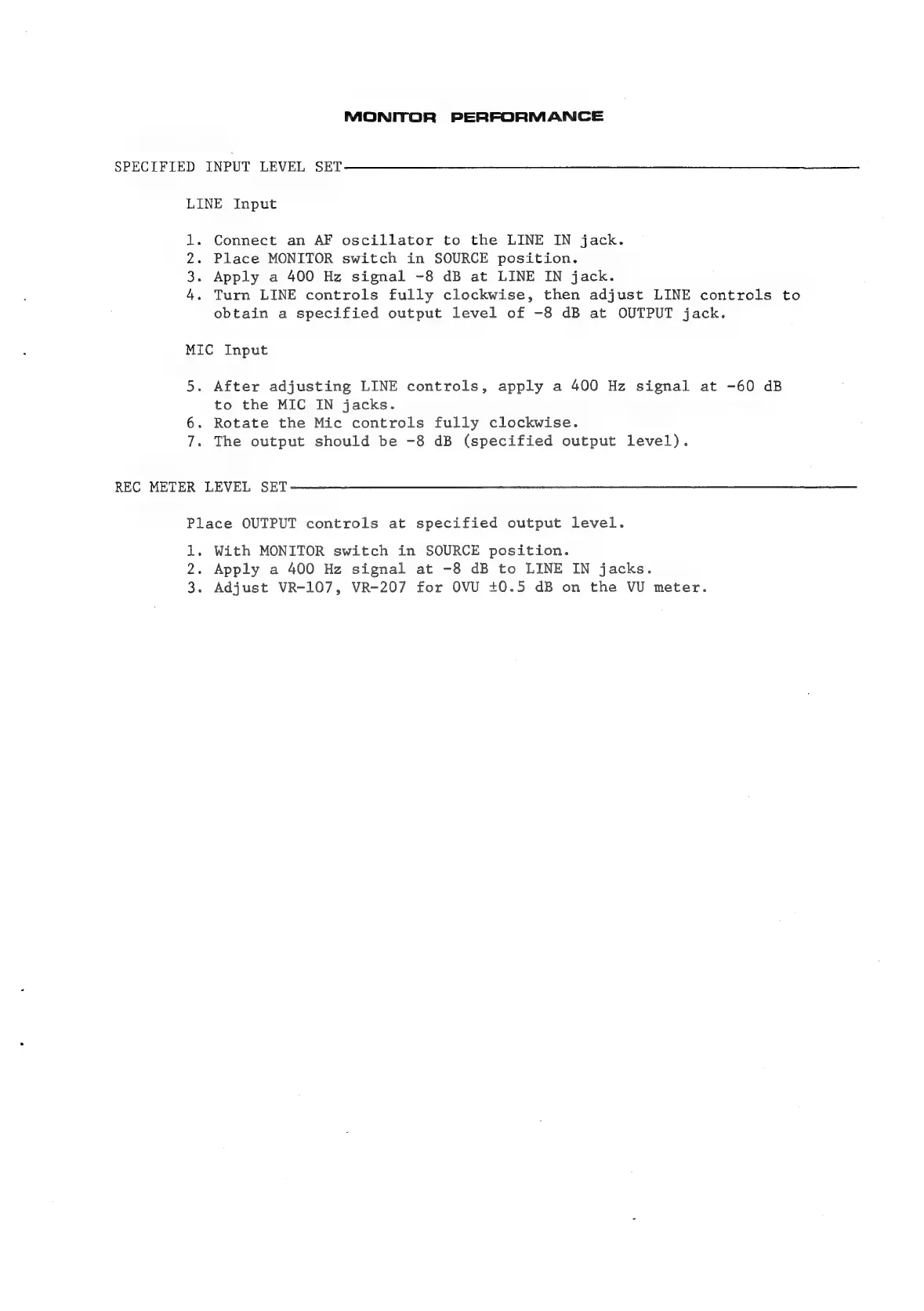

MONITOR PERFORMANCE
SPECIFIED INPUT LEVEL SET
LINE Input
Connect an AF oscillator to the LINE IN jack.
. Place MONITOR switch in SOURCE position.
. Apply a 400 Hz signal -8 dB at LINE IN jack.
Turn LINE controls fully clockwise, then adjust LINE controls to
obtain a specified output level of -8 dB at OUTPUT jack.
PwWNr
MIC Input
5. After adjusting LINE controls, apply a 400 Hz signal at -60 dB
to the MIC IN jacks.
6. Rotate the Mic controls fully clockwise.
7. The output should be -8 dB (specified output level).
REC METER LEVEL SET
Place OUTPUT controls at specified output level.
1. With MONITOR switch in SOURCE position.
2. Apply a 400 Hz signal at -8 dB to LINE IN jacks.
3. Adjust VR-107, VR-207 for OVU +0.5 dB on the VU meter.
