TEAC
PARTS NO.
50140200
50135462
50667300
50135411
50679870
50667410
50135421
50221400
50221410
50135391
50667420
50135401
50234950
50482820
50221420
50152840
50234960
50183440
50330170
50183431
50183421
50135501
50135490
50135481
50183520
50183532
50279310
50152850
50152821
50183451
50152831
50279800
50482800
50152860
50482810
50135462
50125200
50123692
50124011
50123900
50446180
50183510
50183490
50221390
50183462
50234940
50183900
50142131
50142150
50142350
50125210
50135510
50490810
50448760
50448881
50448770
50448860
50279611
50123900
50134390

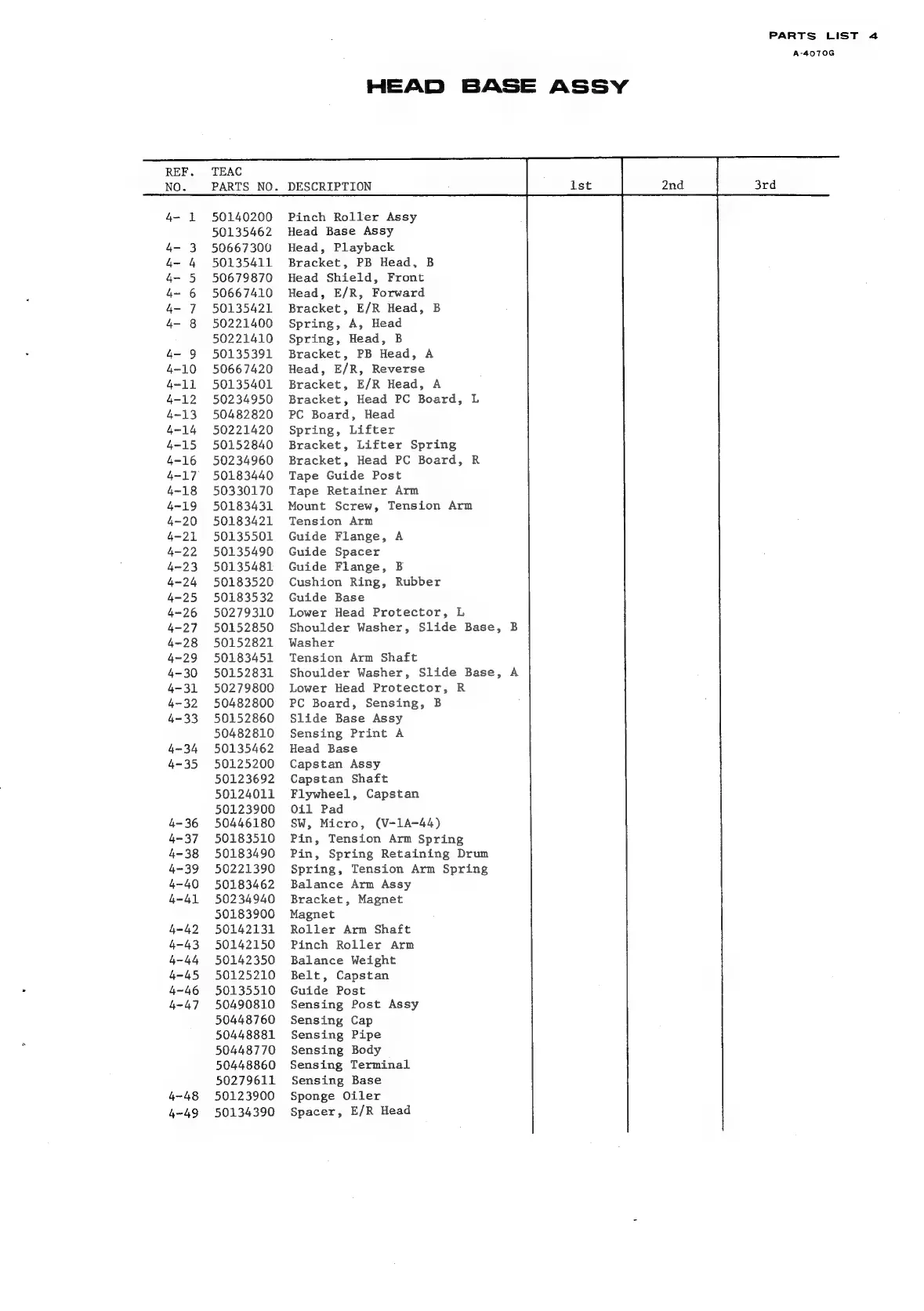

HEAD BASE ASSY
DESCRIPTION
Pinch Roller Assy
Head Base Assy
Head, Playback
Bracket, PB Head, B
Head Shield, Front
Head, E/R, Forward
Bracket, E/R Head, B
Spring, A, Head
Spring, Head, B
Bracket, PB Head, A
Head, E/R, Reverse
Bracket, E/R Head, A
Bracket, Head PC Board, L
PC Board, Head
Spring, Lifter
Bracket, Lifter Spring
Bracket, Head PC Board, R
Tape Guide Post
Tape Retainer Arm
Mount Screw, Tension Arm
Tension Arm
Guide Flange, A
Guide Spacer
Guide Flange, B
Cushion Ring, Rubber
Guide Base
Lower Head Protector, L
Shoulder Washer, Slide Base, B
Washer
Tension Arm Shaft
Shoulder Washer, Slide Base, A
Lower Head Protector, R
PC Board, Sensing, B
Slide Base Assy
Sensing Print A
Head Base
Capstan Assy
Capstan Shaft
Flywheel, Capstan
Oil Pad
SW, Micro, (V-1A-44)
Pin, Tension Arm Spring
Pin, Spring Retaining Drum
Spring, Tension Arm Spring
Balance Arm Assy
Bracket, Magnet
Magnet
Roller Arm Shaft
Pinch Roller Arm
Balance Weight
Belt, Capstan
Guide Post
Sensing Post Assy
Sensing Cap
Sensing Pipe
Sensing Body
Sensing Terminal
Sensing Base
Sponge Oiler
Spacer, E/R Head
PARTS LIST 4
A-4070G
