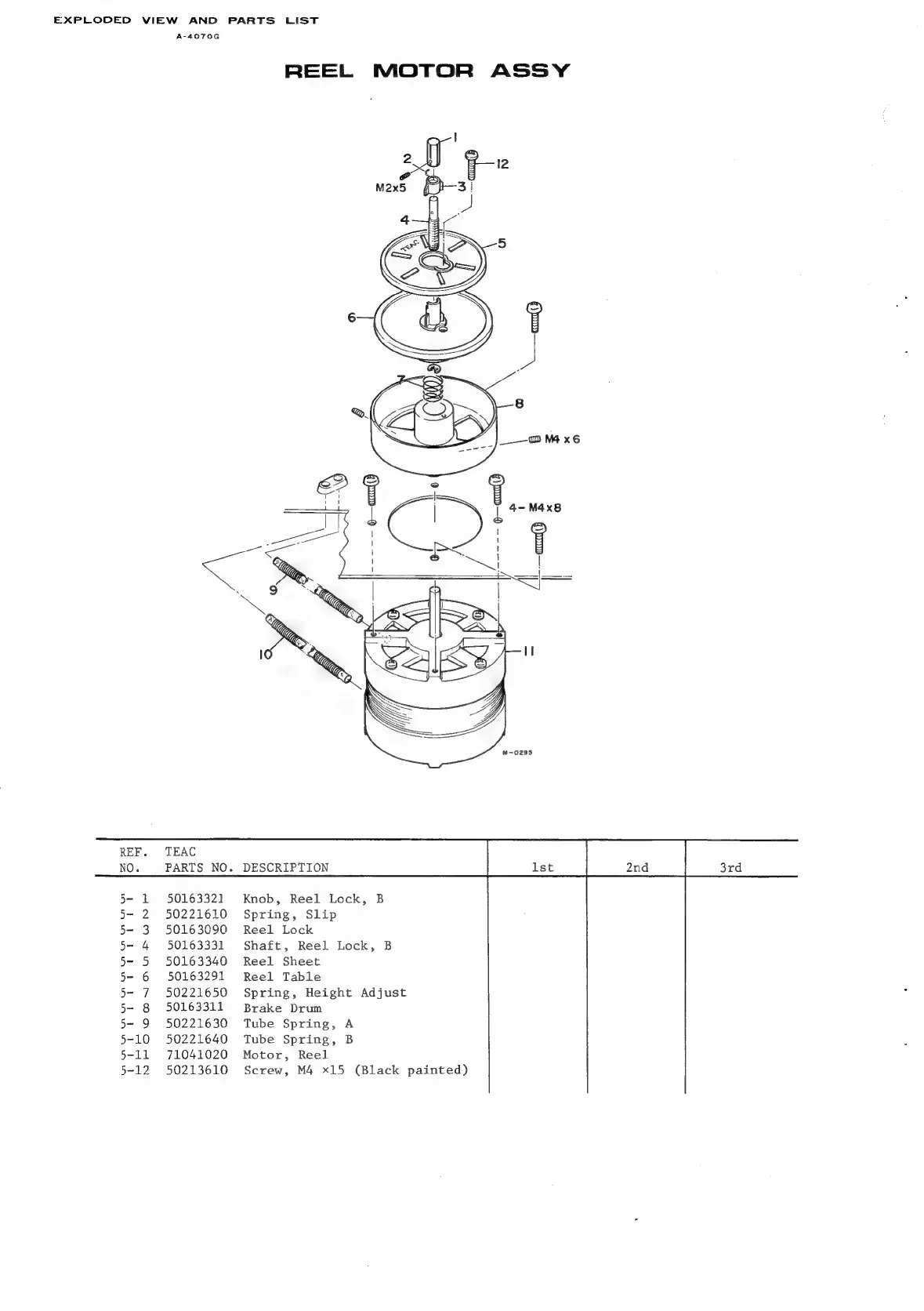

EXPLODED VIEW AND PARTS LiST
A-4070G
REEL MOTOR ASSY
TEAC
PARTS NO.
DESCRIPTION
1 50163321 Knob, Reel Lock, B
5- 2 50221610 Spring, Slip
5- 3 50163090 Reel Lock
5- 4 50163331 Shaft, Reel Lock, B
5- 5 50163340 Reel Sheet
5- 6 50163291 Reel Table
5- 7 50221650 Spring, Height Adjust
5- 8 50163311 Brake Drum
5- 9 50221630 Tube Spring, A
5-10 50221640 Tube Spring, B
5-11 71041020 Motor, Reel
5-12 50213610 Screw, M4 x15 (Black painted)
