Teac A-4070G - Page 45

EXPLODED VIEW AND PARTS LIST
A-40T0G

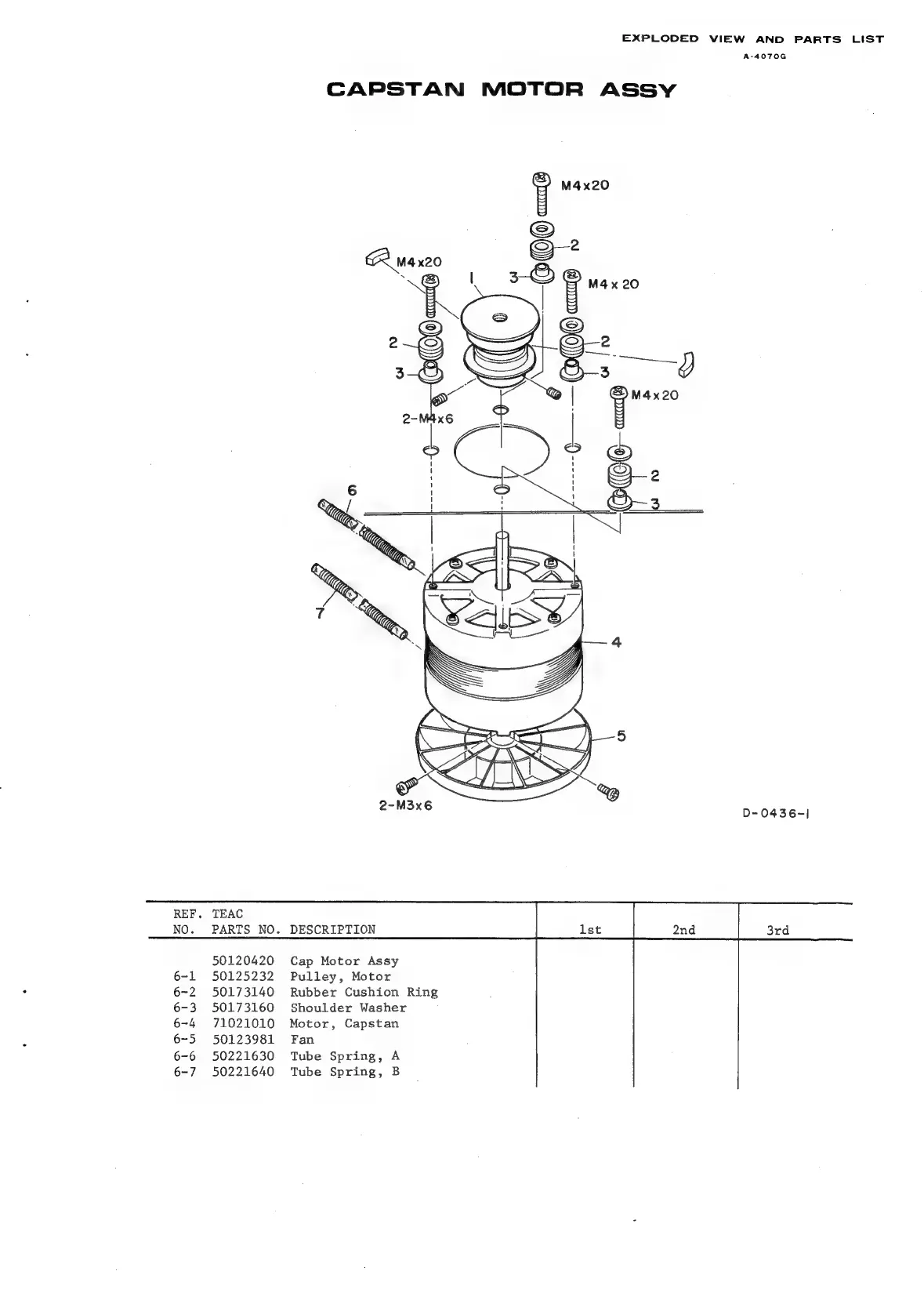

CAPSTAN MOTOR ASSY
q M4x20
:
00
con®)
D-0436-|
TEAC
PARTS NO. DESCRIPTION
50120420
6-1 50125232 Pulley, Motor
6-2 50173140 Rubber Cushion Ring
6-3 50173160 Shoulder Washer
6-4 71021010 Motor, Capstan
6-5
6-6
6-7
Cap Motor Assy
50123981 Fan
50221630 Tube Spring, A
50221640 Tube Spring, B
