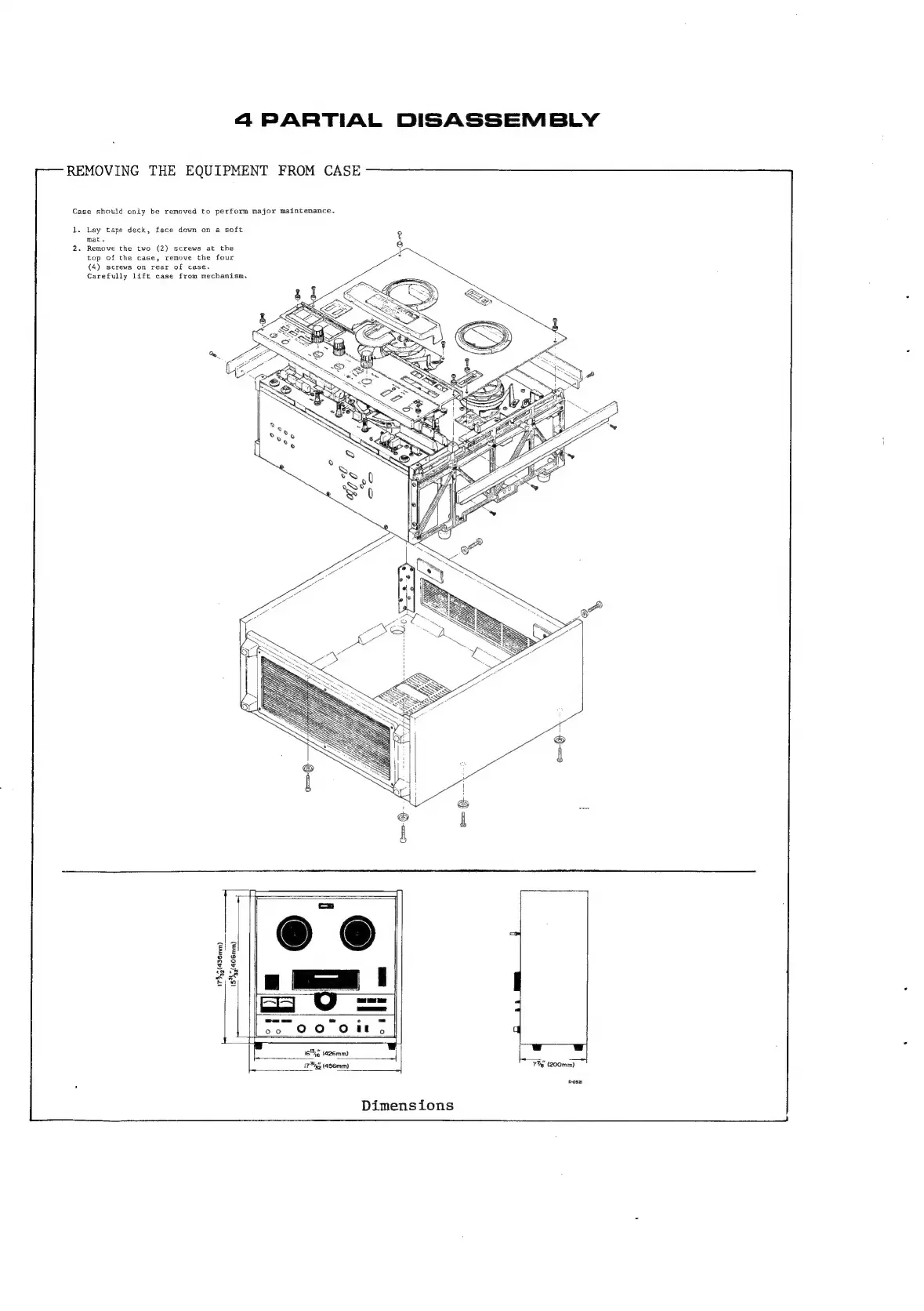

4 PARTIAL DISASSEMBLY
REMOVING THE EQUIPMENT FROM CASE
Case should only be removed to perform major maintenance.
1. Lay tape deck, face down on a soft
mat.
2. Remove the two (2} screws at the
top of the case, remove the four
(4) screws on rear of case.
Carefully lift case from mechanism.
7% (200mm)
=
Dimensions
173449 (456mm)
(awaon*%.s1 (wmgey) 2621
