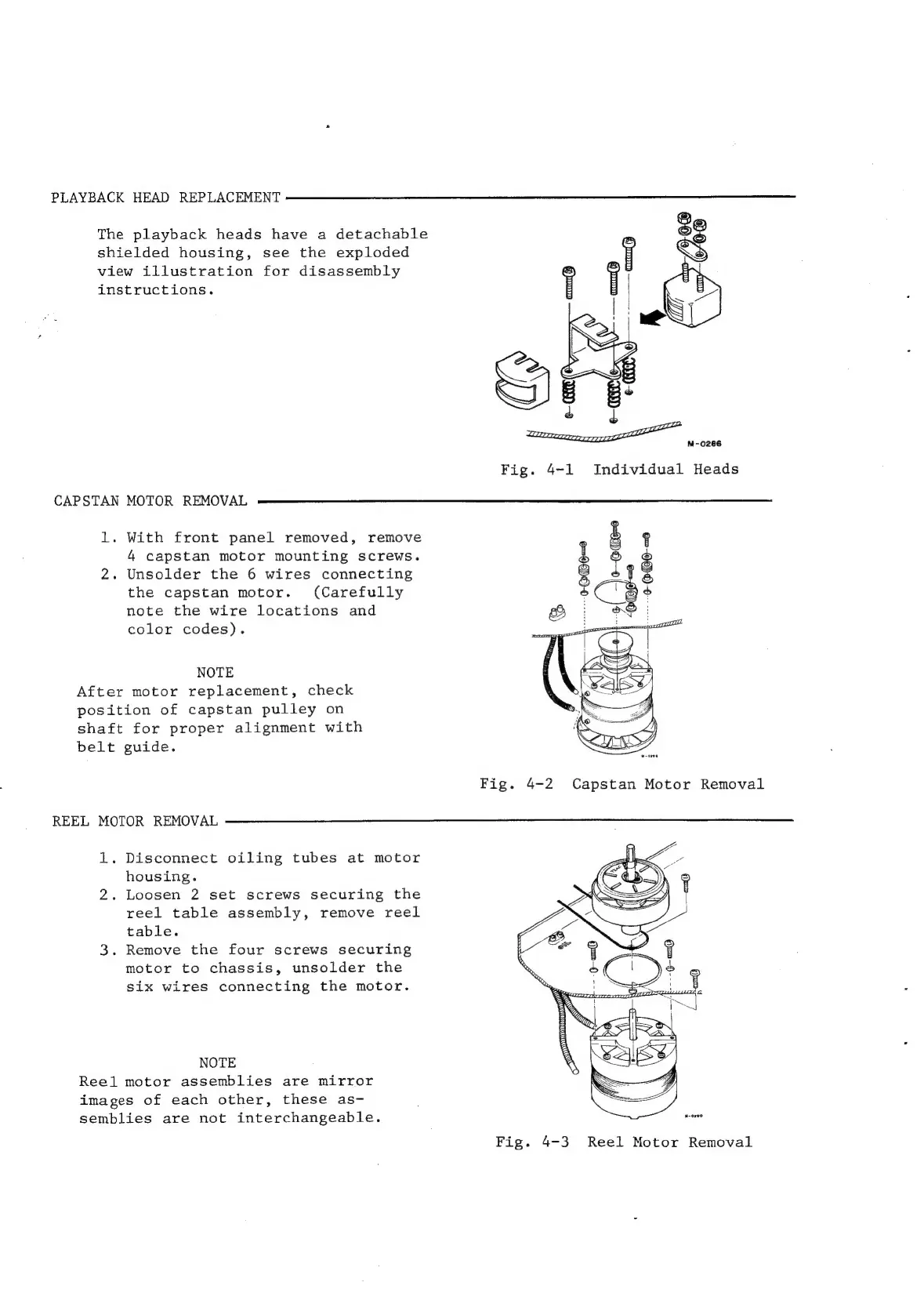

PLAYBACK HEAD REPLACEMENT
The playback heads have a detachable
shielded housing, see the exploded
view illustration for disassembly
instructions.
omm(
o- Ot
(6600
e-
@
M-0286
Fig. 4-1 Individual Heads
CAPSTAN MOTOR REMOVAL
1. With front panel removed, remove
4 capstan motor mounting screws.
2. Unsolder the 6 wires connecting
the capstan motor. (Carefully
note the wire locations and
color codes).
NOTE
After motor replacement, check
position of capstan pulley on
shaft for proper alignment with
belt guide.
REEL MOTOR REMOVAL
1. Disconnect oiling tubes at motor
housing.
2. Loosen 2 set screws securing the
reel table assembly, remove reel
table.
3. Remove the four screws securing
motor to chassis, unsolder the
six wires connecting the motor.
NOTE
Reel motor assemblies are mirror
images of each other, these as-—
semblies are not interchangeable.
Fig. 4-3 Reel Motor Removal
