REEL MOTOR
C801 POWER TRANSFORMER
REEL MOTOR
K3
K2
Kl
K7
K6
K5
ee
K4
K8
Bo? ewpinions SY
FREQUENCY SELECTOR LEVER -~~
PULL 60Hz
FREQUENCY SELECTOR SWITCH -4
NOTE
K3 REV. RELAY R802 BACK TENSION
K2 REV. RELAY R803 TAPE 0.5 MIL (THIN)
Kl PLAY RELAY R801 TAKE-UP
K7 REPEAT SENSING RELAY K1l F. FWD RELAY
K6 REV. SENSING RELAY K10 SPEED RELAY
K5 FAST RELAY K12 MUTING RELAY
K4 DELAY RELAY
K8 SHUT OFF RELAY

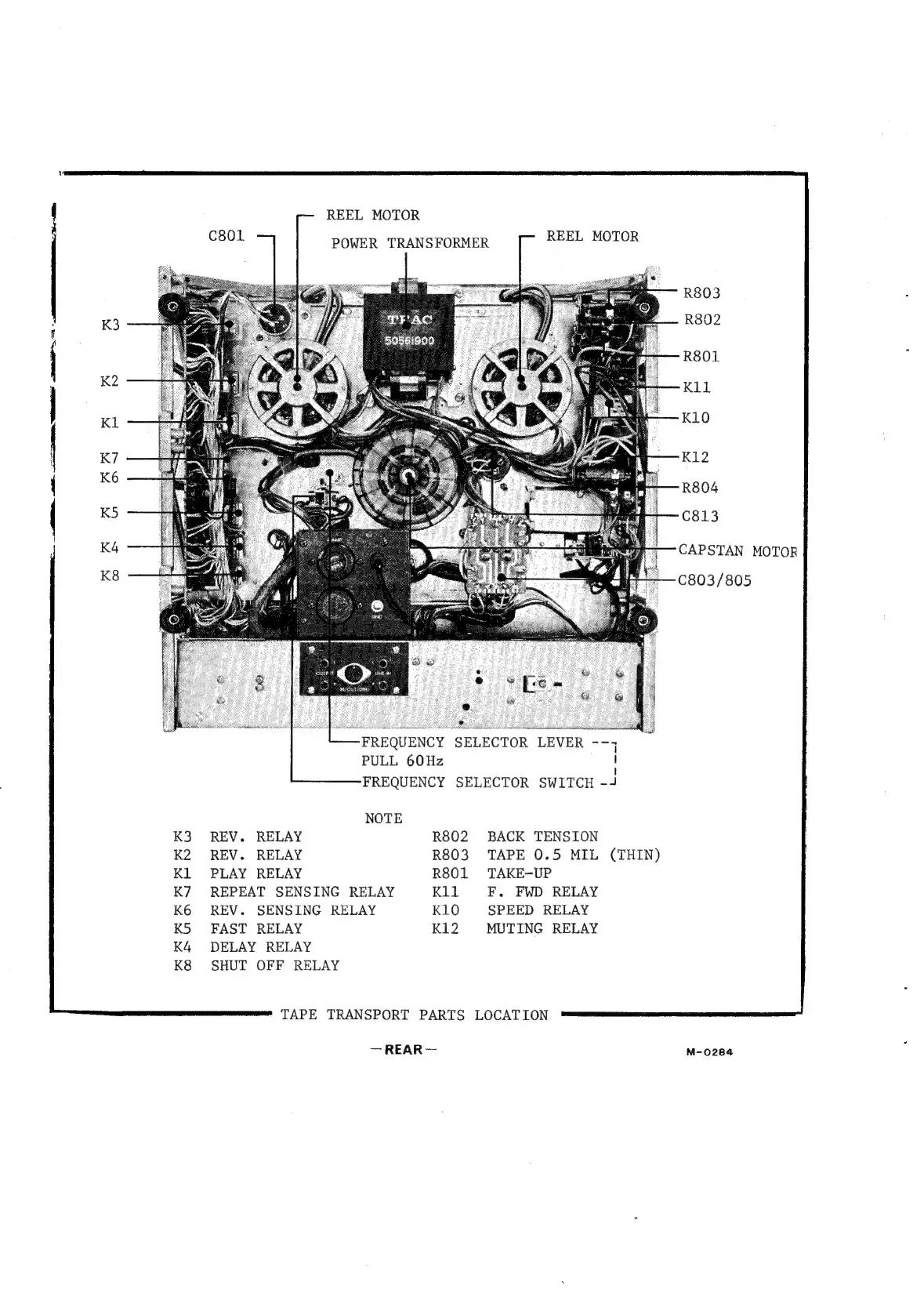

TAPE TRANSPORT PARTS LOCATION
— REAR—
R803
R802
R801
Kil
K1O
K12
R804
C813
CAPSTAN MOTOR
C803/805
M-0284
